040576-00 - Briggs & Stratton 12kW Home Standby Generator Enclosure Parts Diagram

12kW Home Standby Generator

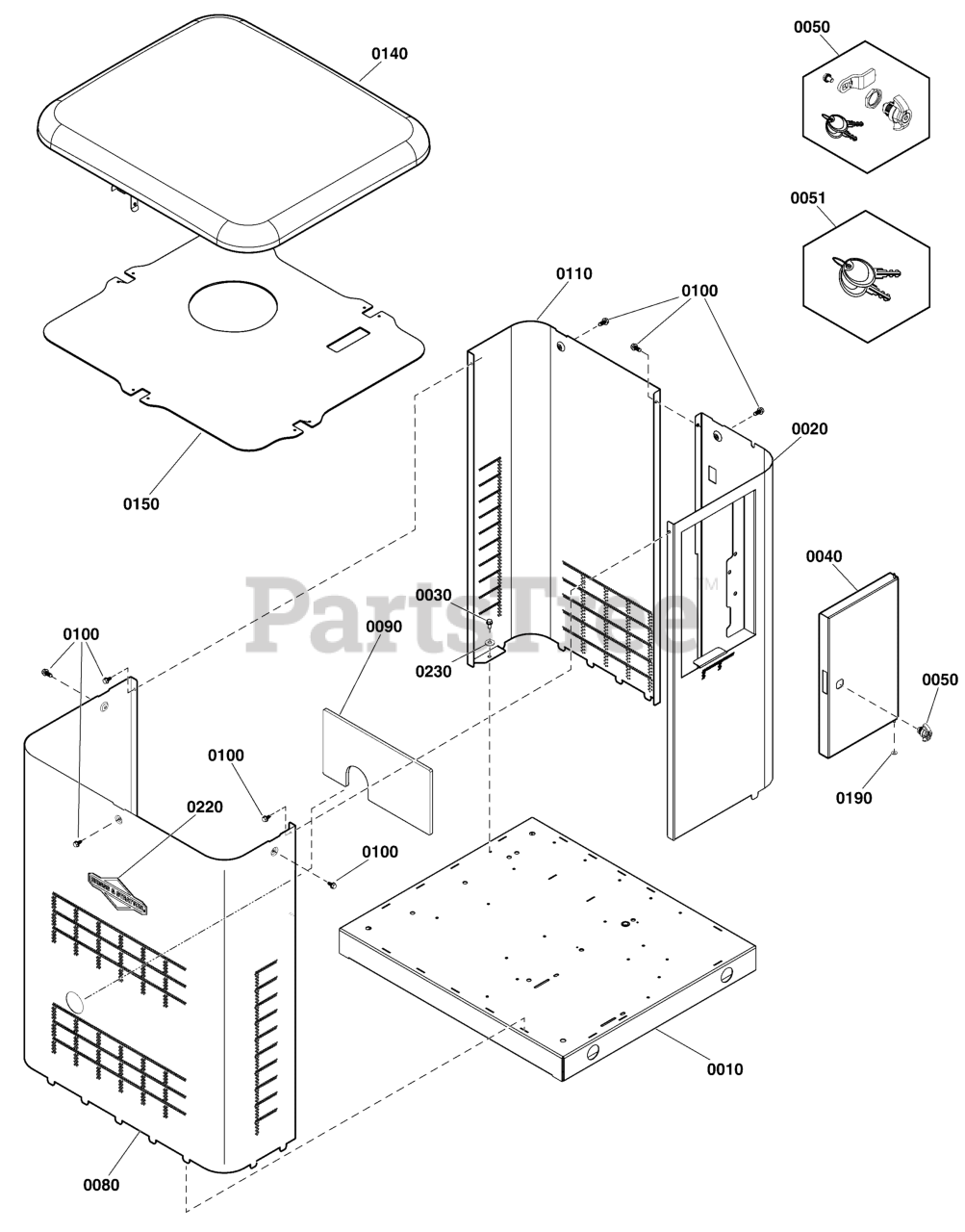

Enclosure Parts Diagram

  • Title

0010

Briggs & Stratton 772343

BASE, Enclosure

$

$

Currently unavailable

0020

Briggs & Stratton 772344

PANEL, Right Back

$

$

Currently unavailable

0030

SCREW, 1/4-20 X .500, Hex Washer SL HD, ZC/CL

$

$

Not available

0040

Briggs & Stratton 772345

DOOR, Enclosure

$

$

Currently unavailable

0050

Briggs & Stratton 195998GS

KIT, Door Latch
(Superseded to 198889GS)

$48.99

$

Usually ships in 2-12 days

0

0051

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 706937

PLUG

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 772346

PANEL, Front

$

$

Currently unavailable

0090

Briggs & Stratton 706938

PANEL, Muffler Guard

$84.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 703884

SCREW

$4.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 772347

PANEL, Left Back

$

$

Currently unavailable

0140

Briggs & Stratton 84001897

ROOF, Enclosure
(Superseded to 84002199)

$423.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 772349

PANEL, Roof Divider

$129.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 703929

WASHER-FLAT, NYLON

$3.49

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 770058

BADGE

$44.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0240

Briggs & Stratton 316193GS

PLUG, Roof

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0
