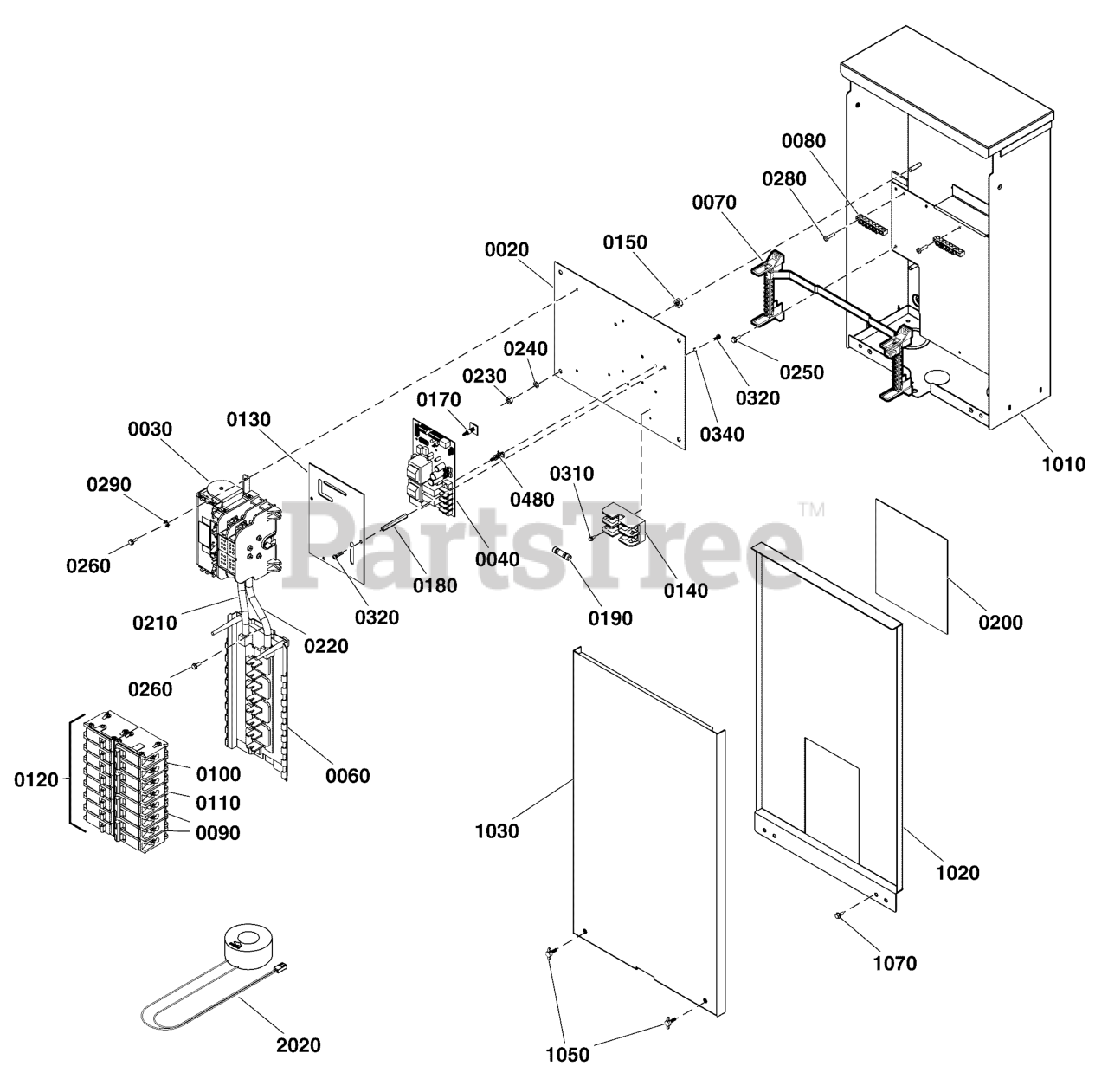

040566-00 - Briggs & Stratton 17kW Home Standby Generator with 100 Amp ATS Transfer Switch - Enclosure Parts Diagram

17kW Home Standby Generator with 100 Amp ATS

Transfer Switch - Enclosure Parts Diagram

  • Title

0020

BACK PANEL

$

$

Not available

0030

Briggs & Stratton 314867GS

CONTACTOR, 100A

$614.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 771701

CONTROLLER

$394.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 198719GS

BUS

$209.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 705747

BLOCK, Neutral

$111.99

$

Usually ships in 2-12 days

0

0080

KIT, Ground Bar

$

$

Not available

0090

Briggs & Stratton 198721GS

BREAKER, Circuit, 50A

$35.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 198722GS

BREAKER, Circuit, 40A

$36.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 198723GS

BREAKER, Circuit, 30A

$30.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 198725GS

BREAKER, Circuit, 20A

$14.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 204511GS

COVER, Circuit Board

$62.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 202841GS

SUPPORT, Locking, Crct Brd

$5.49

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 204433GS

SPACER

$10.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 204431GS

WIRE - R

$20.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 204432GS

WIRE - R

$20.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 22127GS

NUT, Hex, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0280

SCREW, 10-32 X 1/2, Black

$

$

Not available

0290

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 36901GS

PPHMS, 6-32 X 3/8

$3.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 22155GS

WASHER, Lock

$1.99

$

Usually ships in 2-12 days

0

0480

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

1010

ENCLOSURE

$

$

Not available

1020

Briggs & Stratton 705959

DEADFRONT

$193.99

$

Usually ships in 2-12 days

0

1030

Briggs & Stratton 705950

DOOR

Note: (Incl. Ref. Nos. 0410, 0420, 0450)

$205.99

$

Usually ships in 2-12 days

0

1050

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

2020

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$32.99

$

Usually ships in 2-12 days

0
