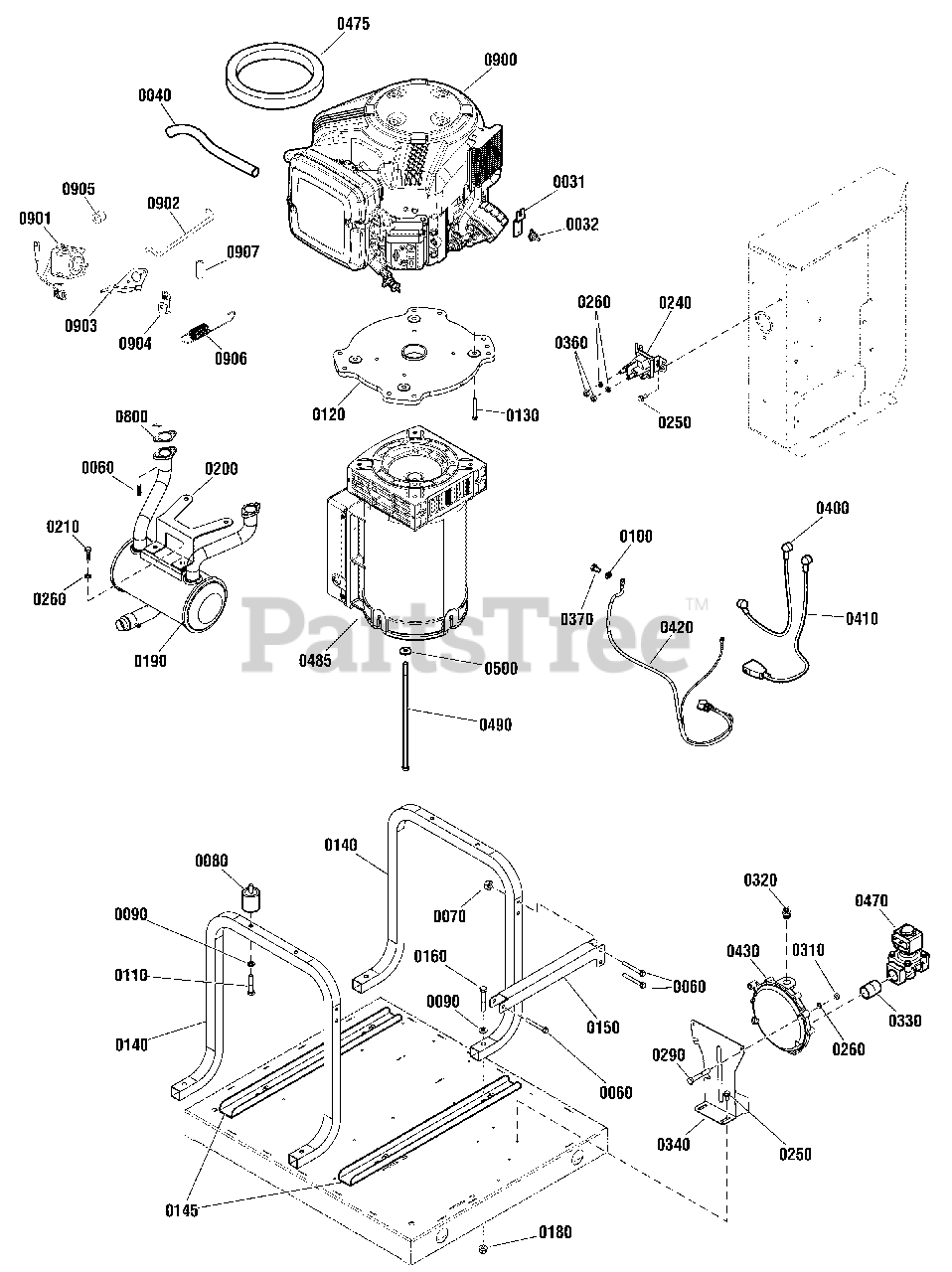

040517-02 - Briggs & Stratton 12kW Home Standby Generator Power Group Parts Diagram

12kW Home Standby Generator

Power Group Parts Diagram

  • Title

0031

Briggs & Stratton 195124GS

PLATE, Temp Switch

$21.99

$

Usually ships in 2-12 days

0

0032

Briggs & Stratton 204426GS

SWITCH, Temperature

$38.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 1723165SM

HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

$20.99

$

In Stock, Qty 8

0

0060

Briggs & Stratton 691902

SCREW

$3.49

$

In Stock, only 4 left!

0

0070

* NUT-1/4-20

Note: (*See footnote)

$

$

Not available

0080

Briggs & Stratton 189108GS

MOUNT, Vibration

$9.49

$

Usually ships in 2-12 days

0

0090

* WASHER, Flat, M8 (or 5/16)

Note: (*See footnote)

$

$

Not available

0100

* WASHER, Lock, M8 (or 5/16)

Note: (*See footnote)

$

$

Not available

0110

* CAPSCREW, Hex Head, M8-1.25 x 40

Note: (*See footnote)

$

$

Not available

0120

Briggs & Stratton 319353GS

ADAPTER-ENGINE

$159.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 2830598SM

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

Note: (*See footnote)

$4.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton BF319470GS

CRADLE

$195.99

$

Usually ships in 2-12 days

0

0145

Briggs & Stratton 706923

PLATE, CRADLE SUPPORT

$37.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 319471GS

BRACKET

$72.99

$

Usually ships in 2-12 days

0

0160

* CAPSCREW, Hex Head, 5/16-18 x 2

Note: (*See footnote)

$

$

Not available

0180

* NUT, FLANGE, 5/16-18

Note: (*See footnote)

$

$

Not available

0190

Briggs & Stratton 706924

MUFFLER

$323.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 704682

BRACKET, Muffler

$52.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 47411GS

SCREW

$

$

Not available

0240

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

0250

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 5

0

0260

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

0290

* CAPSCREW, Hex Head, , M6-1.0 x 30

Note: (*See footnote)

$

$

Not available

0310

* NUT, Hex, M6

Note: (*See footnote)

$

$

Not available

0320

Briggs & Stratton 202382GS

FITTING, 1/2 Flare 3/8 - 18 NPT

$9.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 706379

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0360

* NUT, KEPS, 1/4-20

$

$

Not available

0370

* CAPSCREW, M8-1.25 x 12

$

$

Not available

0400

Briggs & Stratton 316814GS

WIRE, Starter Solenoid

$82.99

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 316815GS

WIRE
(Superseded to 316811GS)

$201.99

$

Usually ships in 2-12 days

0

0420

Briggs & Stratton 316817GS

WIRE, Battery, Negative

$104.99

$

Usually ships in 2-12 days

0

0430

Briggs & Stratton 706992

REGULATOR-FUEL

$295.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 318880GS

SOLENOID, Fuel

$365.99

$

Usually ships in 2-12 days

0

0475

Briggs & Stratton 316881GS

SEAL

$51.99

$

Usually ships in 2-12 days

0

0485

Briggs & Stratton 706952

ALTERNATOR

$2792.99

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 706941

BOLT

$11.99

$

Usually ships in 2-12 days

0

0500

Briggs & Stratton 96796GS

WASHER, Flat M8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

0800

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

In Stock, only 3 left!

0

0900

** ENGINE

Note: (**See footnote)

$

$

Not available

0901

Briggs & Stratton 707181

MOTOR, Stepper

$146.99

$

In Stock, only 3 left!

0

0902

Briggs & Stratton 845814

LINK, Actuator

$10.99

$

Usually ships in 2-12 days

0

0903

Briggs & Stratton 845815

BRACKET, Mounting

$74.99

$

Usually ships in 2-12 days

0

0904

Briggs & Stratton 845813

LEVER, Actuator

$22.99

$

Usually ships in 2-12 days

0

0905

Briggs & Stratton 845818

SEAL, Foam

$17.99

$

Usually ships in 2-12 days

0

0906

Briggs & Stratton 845816

SPRING/LINK, Governor

$7.49

$

Usually ships in 2-12 days

0

0907

Briggs & Stratton 845820

SCREW

$4.99

$

Usually ships in 2-12 days

0
