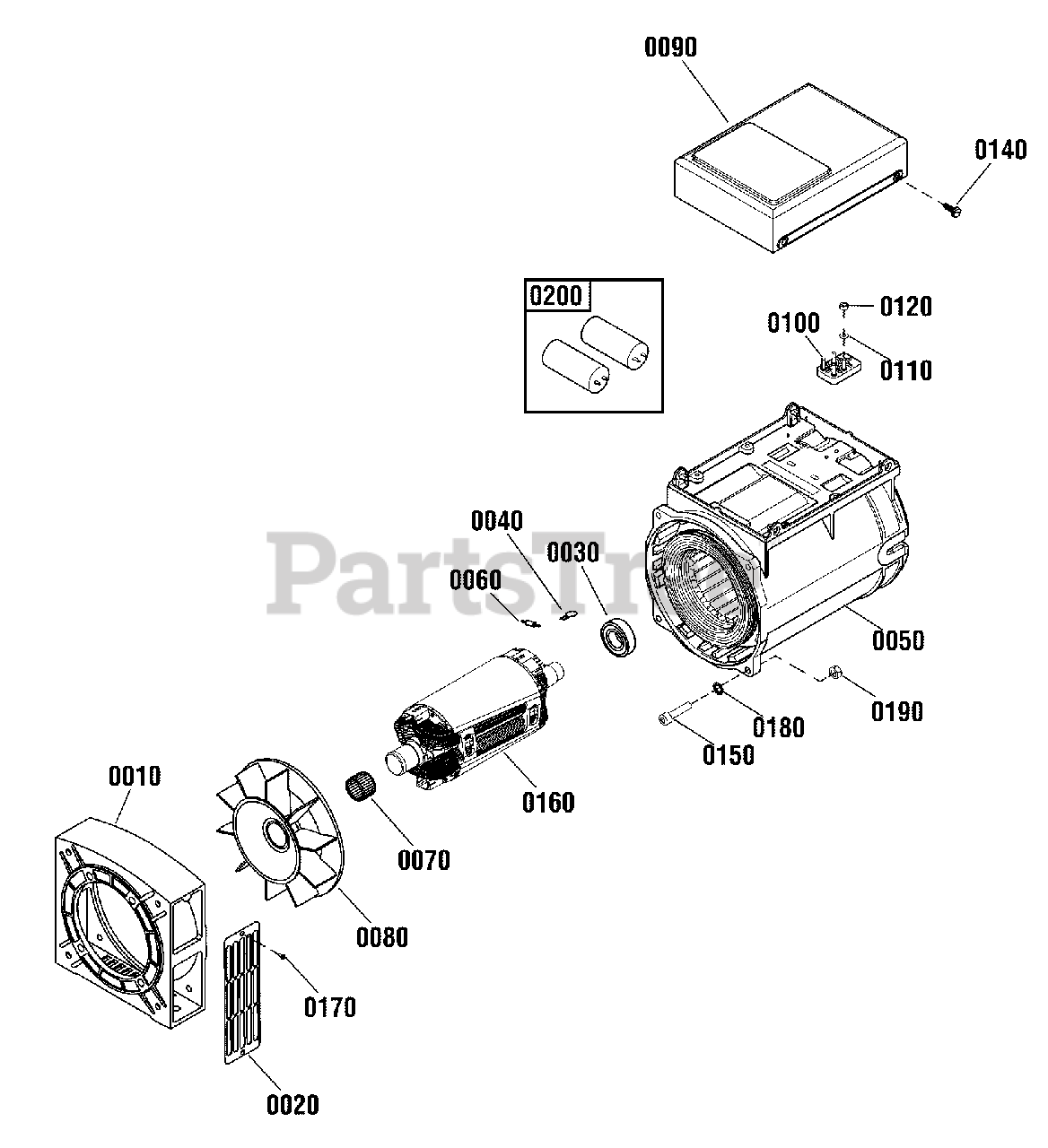

040517-02 - Briggs & Stratton 12kW Home Standby Generator Alternator Parts Diagram

12kW Home Standby Generator

Alternator Parts Diagram

  • Title

0010

Briggs & Stratton 192970GS

BRACKET, Drive End

$143.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 316351GS

SCREEN

$34.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 316354GS

BEARING

$108.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 316352GS

VARISTOR

$36.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 315955GS

STATOR

$2165.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 315956GS

DIODE

$68.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 316353GS

RING, Fixing

$31.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 316349GS

FAN

$148.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 192967GS

BOX,Terminal Lid

$63.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 315953GS

BLOCK, Terminal

$82.99

$

Usually ships in 2-12 days

0

0110

* WASHER, Flat, #10-M5

$

$

Not available

0120

* NUT, 10-32

$

$

Not available

0140

* SCREW, Pan Head, 10-32 x 3/4

$

$

Not available

0150

Briggs & Stratton 31183GS

SCREW

$8.49

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 316350GS

ROTOR

$1707.99

$

Usually ships in 2-12 days

0

0170

* SCREW, M8 x 1.25 x 35mm

$

$

Not available

0180

Briggs & Stratton 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

0190

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

0200

VERIFY MICROFARAD (uF) RATING BEFORE ORDERING. REPLACEMENT CAPACITORS MUST MATCH ORIGINALS. IN MULTIPLE CAPACITOR SYSTEMS, IF ONE CAPACITOR IS NOT WORKING ALL CAPACITORS MUST BE REPLACED.

$

$

Not available

--

Briggs & Stratton 770460

KIT-CAPACITORS

Note: (Includes 2 ea. 40uF)

$125.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316365GS

CAPACITOR, 30uF (1 ea.)

Note: (Optional service part, order as requried)

$73.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316367GS

CAPACITOR, 35uF (1 ea.)
(Superseded to 317837GS)

Note: (Optional service part, order as requried)

$67.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316368GS

CAPACITOR, 40uF (1 ea.)

$95.99

$

Usually ships in 2-12 days

0
