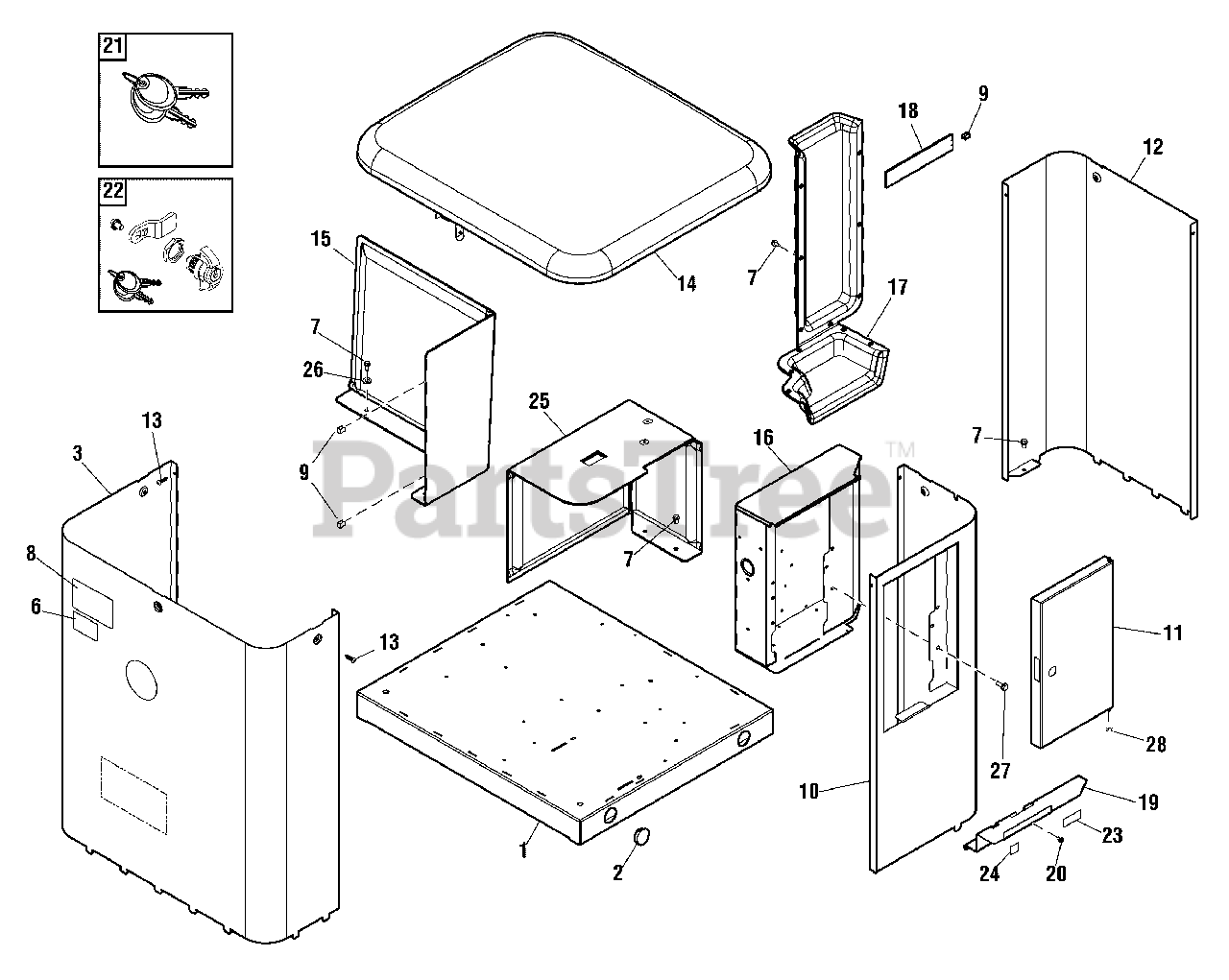

040515-00 - Rheem 8kW Home Standby Generator with 50 Amp ATS Enclosure (80005360) Parts Diagram

8kW Home Standby Generator with 50 Amp ATS

Enclosure (80005360) Parts Diagram

  • Title

1

Briggs & Stratton B316878GS

BASE

$296.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 198460GS

PLUG-HOLE

$3.49

$

In Stock, Qty 13

0

3

Briggs & Stratton 703943

PANEL-FRONT, With Decal

$481.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 318449GS

DECAL

$27.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

8

Briggs & Stratton 318449GS

DECAL

$27.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 314661GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton AN316858GS

PANEL-RIGHT BACK

$376.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton AN316870GS

ASSY-DOOR

$142.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton AN316859GS

PANEL-LEFT BACK

$481.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 703884

SCREW

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 703921

ROOF

$969.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 316845GS

DUCT-EXHAUST

$84.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 316852GS

BOX-CONTROL
(Superseded to 706026)

$204.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 316861GS

DUCT-CONTROL BOX

$94.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 316862GS

PANEL-DUCT

$8.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 316853GS

DIVIDER-CONTROL BOX

$59.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 207652GS

KEY-LATCH

$19.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 204700GS

KIT-LATCH

$24.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 317368GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 317371GS

DECAL

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 703883

PANEL-BOX

$148.99

$

Usually ships in 2-12 days

0

26

-----

* WASHER-FLAT M8 (or 5/16)

$

$

Not available

27

Briggs & Stratton 200020GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 703929

WASHER-FLAT, NYLON

$3.49

$

Usually ships in 2-12 days

0
