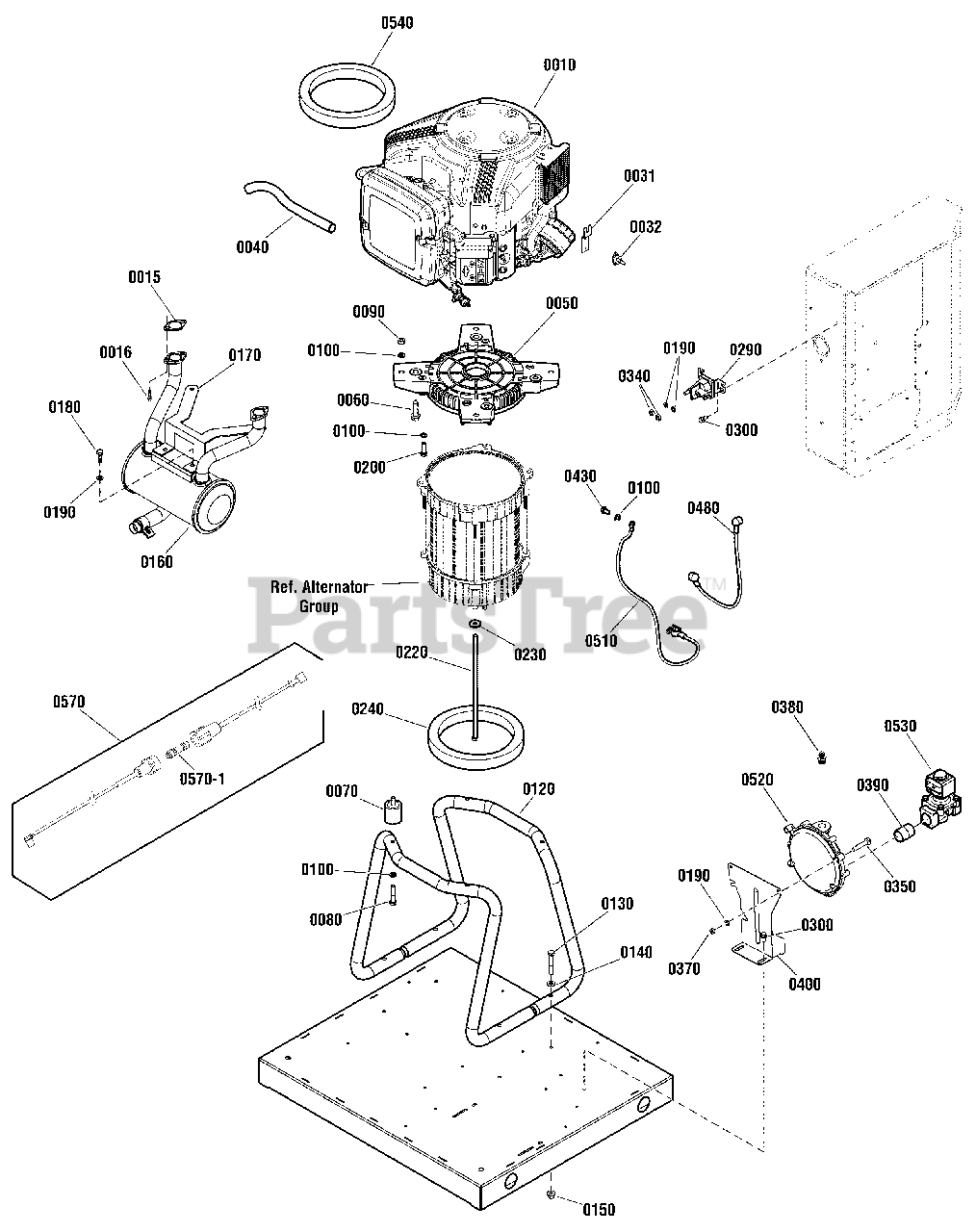

040495-02 - Briggs & Stratton 8kW Home Standby Generator Power Group (80019553) Parts Diagram

8kW Home Standby Generator

Power Group (80019553) Parts Diagram

  • Title

0600

Briggs & Stratton 316816GS

WIRE

Note: (Not Illustrated)

$21.99

$

Usually ships in 2-12 days

0

0010

Briggs & Stratton 359775-0004-E1

** ENGINE

$

$

Currently unavailable

0015

Briggs & Stratton 691613

GASKET

$5.49

$

Usually ships in 2-12 days

0

0016

Briggs & Stratton 691902

SCREW

$3.49

$

In Stock, only 4 left!

0

0031

Briggs & Stratton 195124GS

PLATE-TEMP SWITCH

$21.99

$

Usually ships in 2-12 days

0

0032

Briggs & Stratton 204426GS

SWITCH

$38.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 1723165SM

HOSE-OIL

$20.99

$

In Stock, Qty 9

0

0050

Briggs & Stratton 196727GS

ADAPTER-ENGINE

$56.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 2830598SM

SCREW
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 189109GS

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

0080

-----

* CAPSCREW, HEX HEAD, M8-1.25 x 35

$

$

Not available

0090

-----

* NUT, HEX, M8-1.25

$

$

Not available

0100

-----

* WASHER, LOCK, M8 (or 5/16)

$

$

Not available

0120

Briggs & Stratton B316829GS

CRADLE

$225.99

$

Usually ships in 2-12 days

0

0130

-----

* CAPSCREW, HEX HEAD, 5/16-18 x 2

$

$

Not available

0140

-----

* WASHER, FLAT, M8 (or 5/16)

$

$

Not available

0150

-----

* NUT, FLANGE, 5/16-18

$

$

Not available

0160

Briggs & Stratton 316851GS

MUFFLER

$323.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 200857GS

BRACKET-MUFFLER

$37.99

$

Usually ships in 2-12 days

0

0180

-----

* CAPSCREW, HEX HEAD, M6 - 1 x 12

$

$

Not available

0190

-----

* WASHER, LOCK, M6 (or 1/4)

$

$

Not available

0200

-----

* CAPSCREW, HEX HEAD, 5/16-18 x 1

$

$

Not available

0220

Briggs & Stratton 187365EGS

BOLT

$22.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 193061GS

SEAL

$18.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 691656

SOLENOID-STARTER

$31.99

$

In Stock, Qty 20+

0

0300

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0340

-----

* NUT-1/4-20

$

$

Not available

0350

-----

* CAPSCREW, HEX HEAD, M6-1.0 x 30

$

$

Not available

0360

-----

* WASHER, LOCK, M6 (or 1/4)

$

$

Not available

0370

-----

* NUT, HEX, M6

$

$

Not available

0380

Briggs & Stratton 202382GS

FITTING

$9.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 706379

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0430

-----

* SCREW, M8-1.25 x 12

$

$

Not available

0480

Briggs & Stratton 316814GS

WIRE

$82.99

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 316817GS

WIRE

$104.99

$

Usually ships in 2-12 days

0

0520

Briggs & Stratton 316866GS

REGULATOR-FUEL

$289.99

$

Usually ships in 2-12 days

0

0530

Briggs & Stratton 318880GS

SOLENOID-FUEL

$365.99

$

Usually ships in 2-12 days

0

0540

Briggs & Stratton 316881GS

SEAL

$51.99

$

Usually ships in 2-12 days

0

0570

Briggs & Stratton 706025

HARNESS

$83.99

$

Usually ships in 2-12 days

0

0570-1

Briggs & Stratton 706030

FUSE

$24.99

$

In Stock, only 2 left!

0
