040490-02 - Briggs & Stratton 14,000 Volt Amp Home Standby Generator Control Panel Group Parts Diagram

14,000 Volt Amp Home Standby Generator

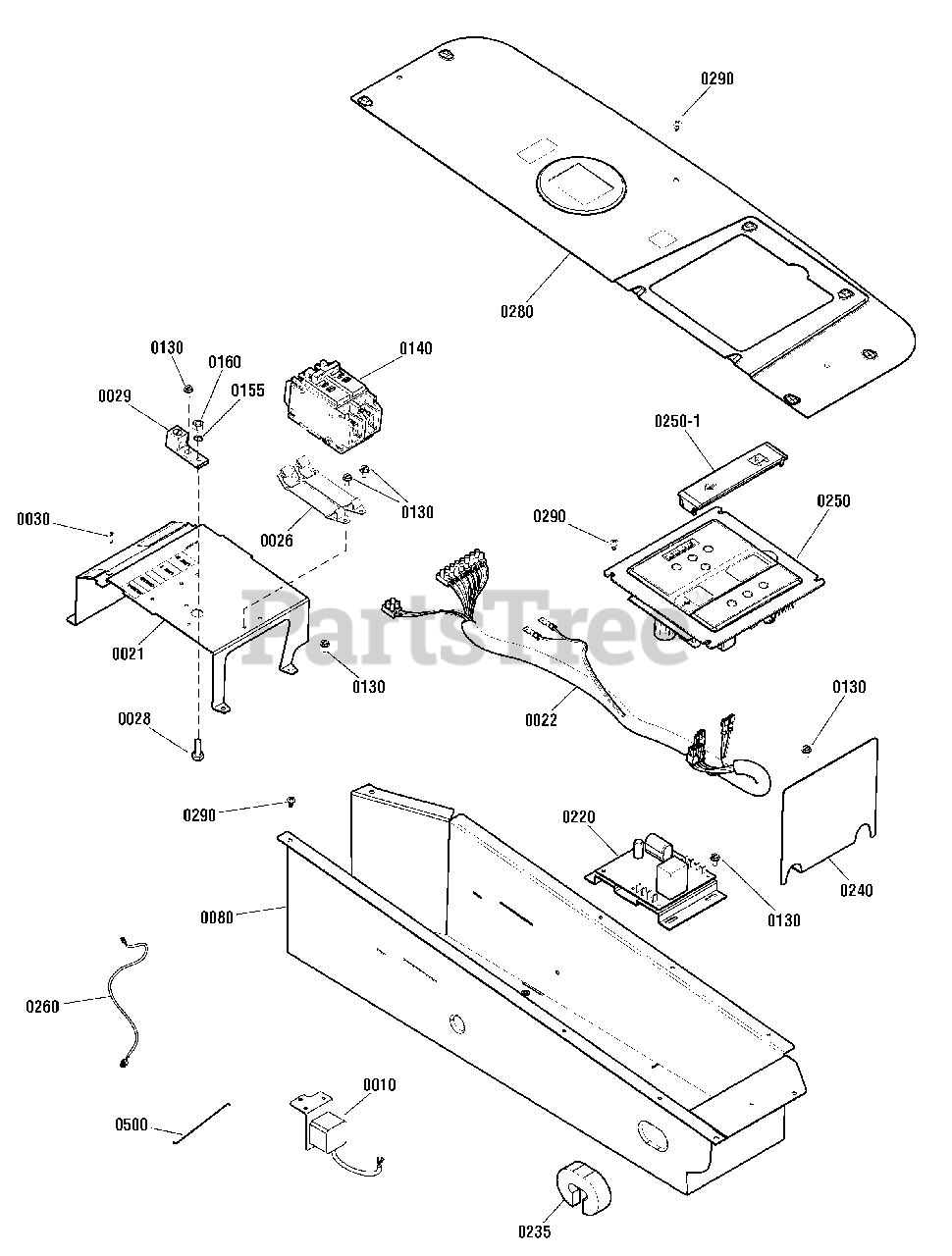

Control Panel Group Parts Diagram

  • Title

0010

Briggs & Stratton 707181

MOTOR, Stepper

$146.99

$

In Stock, only 3 left!

0

0021

Briggs & Stratton 314633GS

BRACKET

$97.99

$

Usually ships in 2-12 days

0

0022

Briggs & Stratton 314639GS

HARNESS-WIRE

$76.99

$

Usually ships in 2-12 days

0

0026

Briggs & Stratton 192770GS

BRACKET, Mounting / Breaker

$54.99

$

Usually ships in 2-12 days

0

0028

* CAPSCREW, Hex Head, 1/4-20 x 3/4

Note: (*See footnote)

$

$

Not available

0029

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

0030

* SCREW, M2.5-0.45 x 12

Note: (*See footnote)

$

$

Not available

0080

Briggs & Stratton 314631GS

BOX, Control

$341.99

$

In Stock, only 1 left!

0

0130

* BOLT, Hex Head, #10-32 x 3/8

Note: (*See footnote)

$

$

Not available

0140

Briggs & Stratton 311317GS

BREAKER, Circuit 70A, 2P

$141.99

$

In Stock, only 1 left!

0

0155

* WASHER, External Lock, M6

Note: (*See footnote)

$

$

Not available

0160

*NUT, 1/4-20

$

$

Not available

0220

Briggs & Stratton 707157

REGULATOR, Voltage

$423.99

$

Usually ships in 2-12 days

0

0235

Briggs & Stratton 708727

SEAL

$10.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 314632GS

BRACKET

$51.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 319892GS

CONTROL PANEL

Note: (**See Footnote)

$853.99

$

Usually ships in 2-12 days

0

0250-1

Briggs & Stratton 319009GS

DOOR, Access

$8.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 317480GS

HARNESS, Wiring

$57.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton B314635GS

COVER, Control Panel Box
(Superseded to BA314635GS)

$132.99

$

Usually ships in 2-12 days

0

0290

* SCREW, #10-16 x 3/8

Note: (*See footnote)

$

$

Not available

0500

Briggs & Stratton 317323GS

ROD

$14.99

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 198573GS

FUSE, Auto Type, 15 Amp

Note: (Not Illustrated)

$2.99

$

In Stock, only 3 left!

0

0520

Briggs & Stratton 6479

KIT, Off Board Radio

Note: (Not Illustrated)

$418.99

$

Usually ships in 2-12 days

0
