040472-02 - Briggs & Stratton 8kW Home Standby Generator with 50 Amp ATS Main Unit Parts Diagram

8kW Home Standby Generator with 50 Amp ATS

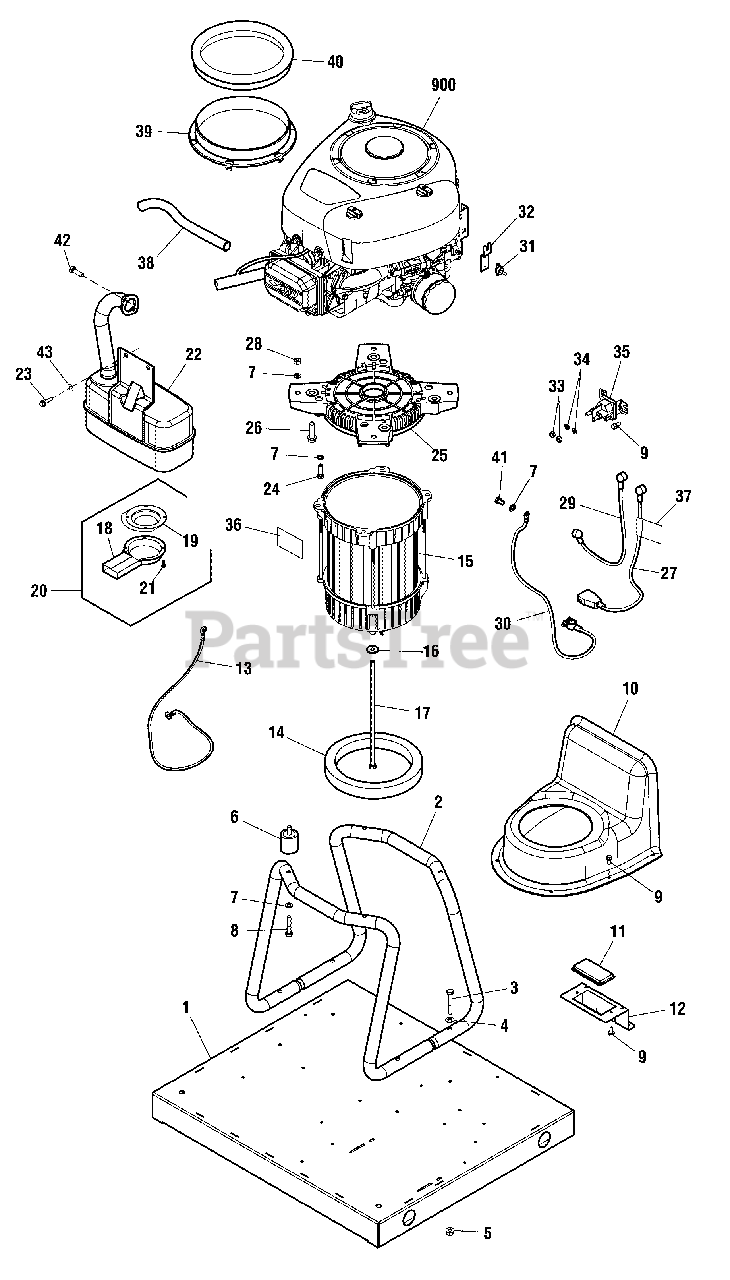

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B316878GS

BASE

$296.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B316829GS

CRADLE

$225.99

$

Usually ships in 2-12 days

0

3

* CAPSCREW-HEX HEAD 5/16-18 x 2

$

$

Not available

4

* WASHER-FLAT M8 (or 5/16)

$

$

Not available

5

* NUT-FLANGE 5/16-18

$

$

Not available

6

Briggs & Stratton 189109GS

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

7

* WASHER-LOCK M8 (or 5/16)

$

$

Not available

8

* CAPSCREW-HEX HEAD M8-1.25 x 35

$

$

Not available

9

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 316846GS

DUCT

$117.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196070GS

REGULATOR-VOLTAGE

$47.99

$

In Stock, Qty 7

0

--

Briggs & Stratton 319677GS

PAINT-SPRAY, TEXTURED CHARCOAL

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 316854GS

BRACKET

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 316816GS

WIRE

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6261

KIT- ACC MAINTENANCE, 8kW

Note: (Optional Accessory)

$105.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 193061GS

SEAL

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6262

KIT- COLD WEATHER ACC

Note: (Optional Accessory)

$439.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6264

KIT-ACC WIRELESS MONITOR

Note: (Use with 040351-00) (Optional Accessory)

$508.99

$

Usually ships in 2-12 days

0

15

ALTERNATOR

$

$

Not available

16

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187365DGS

BOLT

$29.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 316879GS

DEFLECTOR

$19.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 794945

ARRESTOR, Spark

$53.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 703882

DEFLECTOR, Muffler

$42.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 192778GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 316833GS

MUFFLER

$257.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B4996GS

SCREW

$5.49

$

Usually ships in 2-12 days

0

24

* CAPSCREW-HEX HEAD 5/16-18 x 1

$

$

Not available

25

Briggs & Stratton 191793GS

ADAPTER-ENGINE

$68.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 2830598SM

SCREW
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 316815GS

WIRE
(Superseded to 316811GS)

$201.99

$

Usually ships in 2-12 days

0

28

* NUT, HEX M8-1.25

$

$

Not available

29

Briggs & Stratton 316814GS

WIRE, Starter Solenoid

$82.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 316817GS

WIRE, Battery, Negative

$104.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 206045GS

SWITCH

$64.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 206047GS

PLATE-TEMP SWITCH

$13.99

$

Usually ships in 2-12 days

0

33

* NUT-1/4-20

$

$

Not available

34

* WASHER-LOCK M6 (or 1/4)

$

$

Not available

35

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 318449GS

DECAL SHEET-WARNINGS

$27.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 318449GS

DECAL SHEET-WARNINGS

$27.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 1723165SM

HOSE-OIL

$20.99

$

In Stock, Qty 9

0

39

Briggs & Stratton 192853GS

COLLAR-AIR INLET

$21.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 316883GS

SEAL

$29.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 06X103MA

SCREW

$6.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 698941

SCREW

$6.99

$

In Stock, only 3 left!

0

43

* WASHER, Flat, M6 (or 1/4)

$

$

Not available

900

Briggs & Stratton 3197750109E1

ENGINE

Note: (**See footnote)

$1507.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 80004649GS

KIT-MANUAL, ACC

Note: (Not Illustrated)

$449.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311713GS

FLEX HOSE
(Superseded to 202295GS)

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 196731BGS

BIT-SCREW

Note: (Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195200GS

HANG TAG, Attn Standby Equipment

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316869GS

STRAP-BATTERY TIEDOWN

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193703GS

DECAL-240 VOLT

Note: (Not Illustrated)

$6.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319608GS

DECAL-NEUTRAL

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE, 15 AMP

Note: (Not Illustrated)

$2.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 703905

KIT-LP CONVERSION

Note: (Not Illustrated)

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319693GS

PAINT-TOUCH-UP, TEXTURED CHARCOAL

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6277

KIT-ACC WIRELESS MONITOR

Note: (Use with 040351-01) (Optional Accessory)

$2.49

$

Usually ships in 2-12 days

0
