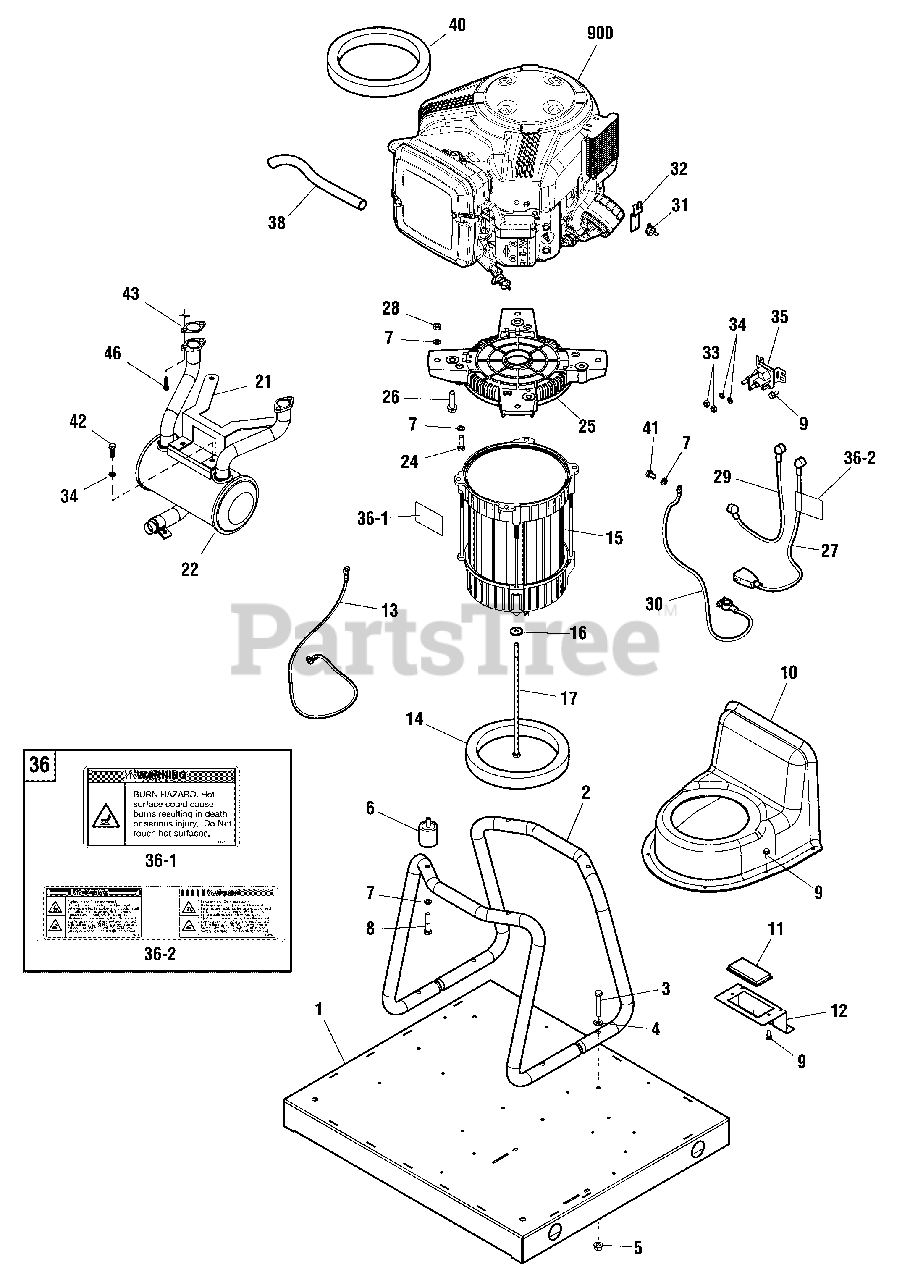

040451-02 - Briggs & Stratton 10kW Home Standby Generator with 100 Amp ATS Main Unit Parts Diagram

10kW Home Standby Generator with 100 Amp ATS

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B316878GS

BASE

$296.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B316829GS

CRADLE

$225.99

$

Usually ships in 2-12 days

0

3

* CAPSCREW, HEX HEAD, 5/16-18 x 2

$

$

Not available

4

* WASHER, FLAT, M8 (or 5/16)

$

$

Not available

5

* NUT, FLANGE, 5/16-18

$

$

Not available

6

Briggs & Stratton 189109GS

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

7

* WASHER, LOCK, M8 (or 5/16)

$

$

Not available

8

* CAPSCREW, HEX HEAD, M8-1.25 x 35

$

$

Not available

9

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 316846GS

DUCT

$117.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196070GS

REGULATOR-VOLTAGE

$47.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 316854GS

BRACKET

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 316816GS

WIRE

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 193061GS

SEAL

$18.99

$

Usually ships in 2-12 days

0

15

ALTERNATOR

$

$

Not available

16

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187365EGS

BOLT

$22.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200857GS

BRACKET-MUFFLER

$37.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 316851GS

MUFFLER

$323.99

$

Usually ships in 2-12 days

0

24

* CAPSCREW, HEX HEAD, 5/16-18 x 1

$

$

Not available

25

Briggs & Stratton 196727GS

ADAPTER-ENGINE

$56.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 2830598SM

SCREW
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 316815GS

WIRE
(Superseded to 316811GS)

$201.99

$

Usually ships in 2-12 days

0

28

* NUT, HEX, M8-1.25

$

$

Not available

29

Briggs & Stratton 316814GS

WIRE, Starter Solenoid

$82.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 316817GS

WIRE, Battery, Negative

$104.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 195130GS

SWITCH

$37.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 195124GS

PLATE-TEMP SWITCH

$21.99

$

Usually ships in 2-12 days

0

33

* NUT-1/4-20

$

$

Not available

34

* WASHER, LOCK, M6 (or 1/4)

$

$

Not available

35

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 318449GS

DECAL SHEET-WARNINGS

$27.99

$

Usually ships in 2-12 days

0

36-1

DECAL, Warning, Burn Hazard

$

$

Not available

36-2

DECAL, Warning, Explosion

$

$

Not available

38

Briggs & Stratton 5048681SM

HOSE-OIL

$18.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 316881GS

SEAL

$51.99

$

Usually ships in 2-12 days

0

41

SCREW, M8-1.25 x 13

$

$

Not available

42

* CAPSCREW, HEX HEAD, M6 - 1 x 12

$

$

Not available

43

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691902

SCREW

$3.49

$

In Stock, only 4 left!

0

900

** ENGINE

$

$

Not available

--

Briggs & Stratton 80004650GS

KIT, MANUAL, ACC.

Note: (Not Illustrated)

$318.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311713GS

FLEX HOSE
(Superseded to 202295GS)

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195200GS

HANG TAG, Attn Standby Equipment

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316869GS

STRAP-BATTERY TIEDOWN

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193703GS

DECAL, 240 VOLT

Note: (Not Illustrated)

$6.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319608GS

DECAL, NEUTRAL

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE, 15 AMP

Note: (Not Illustrated)

$2.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 316840GS

HARNESS, FUEL CONVERSION

Note: (Not Illustrated)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319693GS

PAINT-TOUCHUP, TEXTURED CHARCOAL

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319677GS

PAINT-SPRAY, TEXTURED CHARCOAL

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6035

KIT-ACC MAINTENANCE

Note: (Optional Accessory)

$105.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6030A

KIT-COLD WEATHER ACC.

Note: (Optional Accessory)

$371.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6264

KIT-ACC WIRELESS MONITOR

Note: (Use with 040375-00) (Optional Accessory)

$508.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6277

KIT-ACC WIRELESS MONITOR

Note: (Use with 040375-01) (Optional Accessory)

$2.49

$

Usually ships in 2-12 days

0
