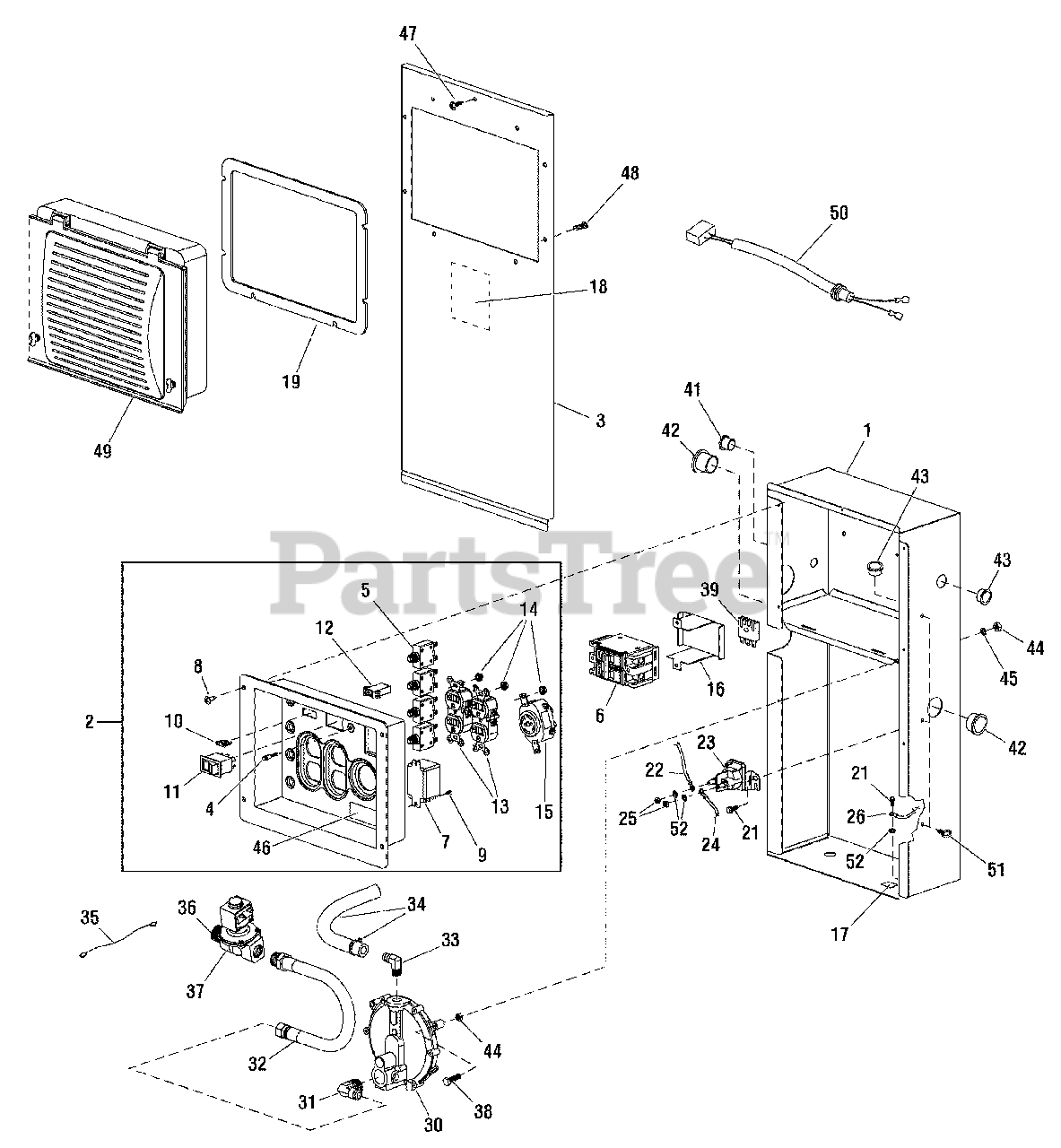

040434-00 - Briggs & Stratton 7kW Home Standby Generator, Dual Fuel Control Panel (314025) Parts Diagram

7kW Home Standby Generator, Dual Fuel

Control Panel (314025) Parts Diagram

  • Title

1

Briggs & Stratton 195229GS

PANEL, Control

$

$

Not available

2

Briggs & Stratton 199925GS

PANEL, Control

$323.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203441GS

PANEL, Back

$157.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 200384GS

LAMP, LED

$15.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

6

Briggs & Stratton 192828DGS

BREAKER, Circuit, 30A

$215.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 200641GS

RELAY

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 200245GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198573GS

FUSE

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 195218GS

SWITCH, ON/OFF/ON

$73.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200367GS

HOLDER, Fuse

$18.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68759GS

OUTLET, 120V 20A

$24.99

$

In Stock, Qty 8

0

14

Briggs & Stratton 189165GS

PALNUT, 5/32

$3.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 43437GS

OUTLET, 120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192931GS

BRACKET

$46.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205397GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 200285GS

SEAL, Foam

$8.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 193171GS

WIRE

$30.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 691656

CONTACTOR, Starter

$31.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 194659GS

WIRE

$25.99

$

Usually ships in 2-12 days

0

25

-----

* NUT, 1/4-20

$

$

Not available

26

Briggs & Stratton 188573AGS

WIRE

$37.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193291GS

REGULATOR, NG/LPG
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 186151GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 186148GS

HOSE

$76.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 186150GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195005GS

HOSE, NG/LPG

$36.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 312799GS

WIRE

$8.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 192449GS

FITTING

$7.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

Usually ships in 2-12 days

0

38

-----

* CAPSCREW, Hex Head, M6-1 x 30

$

$

Not available

39

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

41

Briggs & Stratton 192455GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186582GS

BUSHING, Snap

$2.99

$

Usually ships in 2-12 days

0

44

-----

* NUT-M6-1.0

$

$

Not available

45

-----

* LOCKWASHER, 1/4

$

$

Not available

46

Briggs & Stratton 200227GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

47

-----

* SCREW, 10 x 32 x 1

$

$

Not available

48

Briggs & Stratton B3311GS

PLASTITE

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 200130GS

COVER, Panel

$

$

Not available

50

Briggs & Stratton 313845GS

HARNESS, Wiring

$88.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 195009GS

KIT, Retainer Clips

$3.49

$

Usually ships in 2-12 days

0

52

-----

* WASHER, Shakeproof, Ext, M6-1/4

$

$

Not available

--

Briggs & Stratton 201010GS

RELAY

Note: (Not Illustrated)

$8.49

$

Usually ships in 2-12 days

0
