040414-00 - Briggs & Stratton 18kW Home Standby Generator Main Unit (319120) Parts Diagram

18kW Home Standby Generator

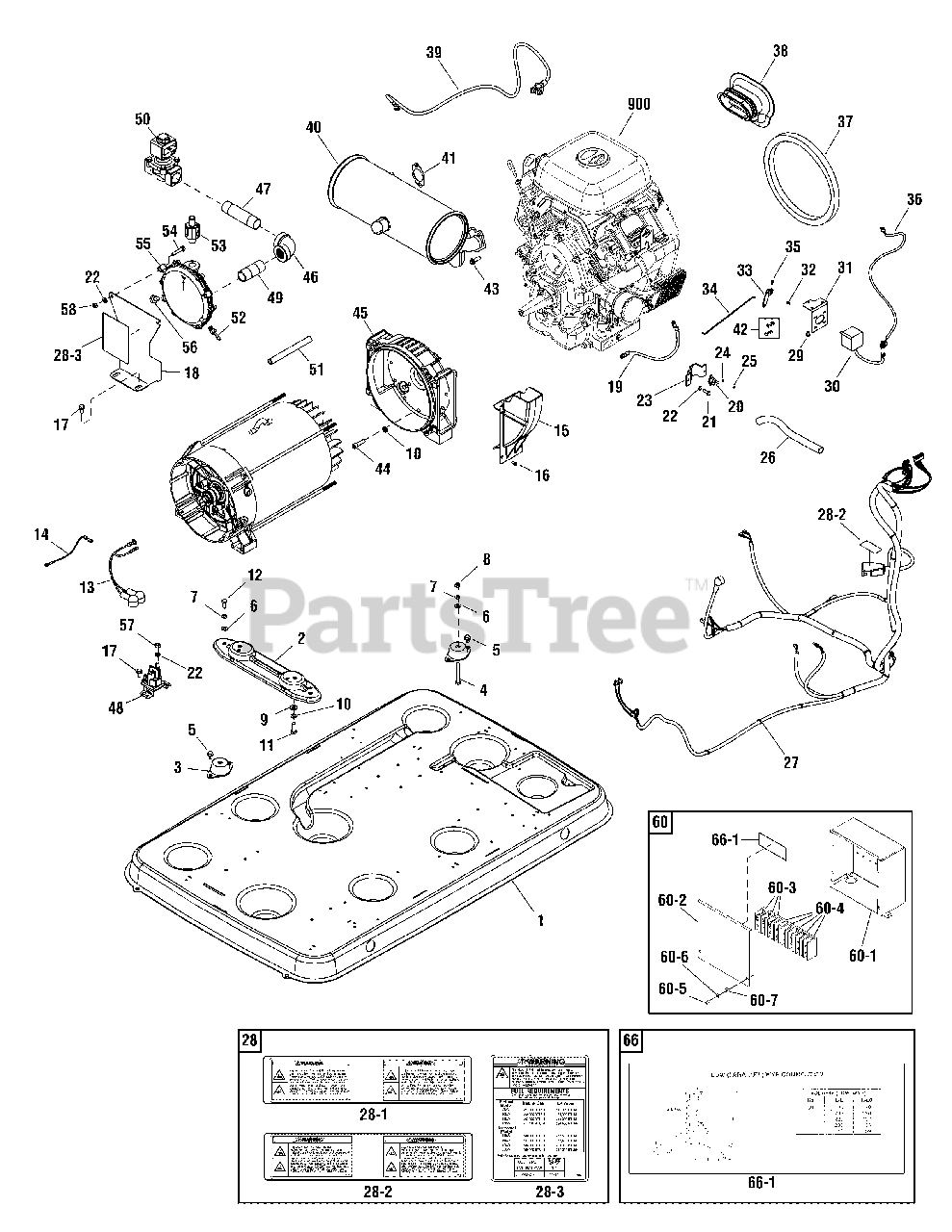

Main Unit (319120) Parts Diagram

  • Title

1

Briggs & Stratton B314636GS

BASE

$993.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B198896GS

BRACKET

$41.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187594GS

MOUNT-VIBRATION

$64.99

$

Usually ships in 2-12 days

0

4

-----

* CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$

$

Not available

5

Briggs & Stratton 24910GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

6

-----

* WASHER, Flat, M8

$

$

Not available

7

-----

* WASHER, Lock, M8

$

$

Not available

8

-----

* NUT, 5/16-18

$

$

Not available

9

-----

* WASHER, Flat, M10

$

$

Not available

10

-----

* WASHER, Lock, 3/8

$

$

Not available

11

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

12

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

13

Briggs & Stratton 316188GS

HARNESS

$57.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 316961GS

WIRE-GROUND RELAY

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 314628GS

DUCT

$152.99

$

Usually ships in 2-12 days

0

16

-----

* SCREW, M5-0.8 x 10

$

$

Not available

17

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 314629GS

BRACKET
(Superseded to 706379)

$19.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 314641GS

WIRE-GROUND

$41.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 204426GS

SWITCH, Temp

$38.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 47411GS

CAPSCREW, Hex Head, M6-1.0 x 16

$

$

Not available

22

-----

* WASHER, Lock, 1/4

$

$

Not available

23

Briggs & Stratton 313561GS

PLATE-SWITCH

$54.99

$

Usually ships in 2-12 days

0

24

-----

* WASHER, Shakeproof, #4

$

$

Not available

25

Briggs & Stratton 186242GS

SCREW
(Superseded to 708730)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 1723165SM

HOSE-OIL

$20.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 314637GS

HARNESS-WIRING

$547.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 318449GS

DECAL SHEET-WARNINGS

Note: (Includes Ref. Nos. 28-1, 28-2 & 28-3)

$27.99

$

Usually ships in 2-12 days

0

28-1

-----

DECAL-WARNING, EXPLOSION

$

$

Not available

28-2

-----

DECAL-WARNING, EXPLOSION

$

$

Not available

28-3

-----

DECAL-FUEL REQUIREMENTS

$

$

Not available

29

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 845324

STEPPER MOTOR

$

$

Currently unavailable

31

Briggs & Stratton 317255GS

BRACKET
(Superseded to 707181)

$146.99

$

In Stock, only 3 left!

0

32

-----

* CAPSCREW, Hex Head, M3-0.5 x 6

$

$

Not available

33

Briggs & Stratton 317324GS

ARM-LINK
(Superseded to 707181)

$146.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 317323GS

ROD

$14.99

$

Usually ships in 2-12 days

0

35

-----

* CAPSCREW, Hex Head, M3-0.5 x 8

$

$

Not available

36

Briggs & Stratton 314659GS

HARNESS-WIRING

$67.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 315454GS

SEAL

$43.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 314642GS

SNORKEL

$79.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 314640GS

WIRE-BATTERY, GROUND

$96.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 314663GS

MUFFLER

$410.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 809872

GASKET

$5.49

$

In Stock, Qty 20+

0

42

Briggs & Stratton 845699

CLEVIS

$8.49

$

Usually ships in 2-12 days

0

43

-----

* SCREW, M8 x 25

$

$

Not available

44

Briggs & Stratton 23645GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 195235GS

ADAPTER-ENGINE

$148.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 312781GS

ELBOW

$27.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 318459GS

FITTING

$25.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 691656

SOLENOID-STARTER

$31.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 206976GS

FITTING

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 318880GS

SOLENOID

$365.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 314662GS

TUBE

$21.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 314693GS

FITTING-BARB

$8.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 845702

VALVE-LP/NG SWITCH
(Superseded to 703877)

$403.99

$

Usually ships in 2-12 days

0

54

-----

* CAPSCREW, Hex Head, M6-1.0 x 30

$

$

Not available

55

Briggs & Stratton 845046GS

REGULATOR
(Superseded to 703877)

$403.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 318002GS

FITTING

$7.99

$

Usually ships in 2-12 days

0

57

-----

* NUT, 1/4-20

$

$

Not available

58

-----

* NUT, Hex, M6-1

$

$

Not available

60

Briggs & Stratton 703569

TERMINATION BOX

Note: (Includes Ref Nos. 60-1, 60-2, 60-3, 60-4, 50-5, 60-6 & 66-1)

$1241.99

$

Usually ships in 2-12 days

0

60-1

Briggs & Stratton 319425GS

BOX

$318.99

$

Usually ships in 2-12 days

0

60-2

Briggs & Stratton 704422

COVER

Note: (Includes Ref. No. 66-1)

$106.99

$

Usually ships in 2-12 days

0

60-3

Briggs & Stratton 208365GS

TERMINAL BLOCK

$14.99

$

Usually ships in 2-12 days

0

60-4

Briggs & Stratton 319043GS

TERMINAL BLOCK

$108.99

$

Usually ships in 2-12 days

0

60-5

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

60-6

-----

* WASHER, Lock, 1/4

$

$

Not available

60-7

-----

* WASHER, Flat, 1/4

$

$

Not available

66

Briggs & Stratton 319391GS

DECAL SHEET-VOLTAGE

Note: (Includes Ref. No. 66-1)

$48.99

$

Usually ships in 2-12 days

0

66-1

-----

DECAL-VOLTAGE

$

$

Not available

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 318928GS

MANUAL-INSTALL

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318929GS

MANUAL-OPERATOR

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 319770GS

KIT-MANUAL, ACC

Note: (Not Illustrated)

$372.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318973GS

KIT-HARDWARE

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311713GS

HOSE-FLEX
(Superseded to 202295GS)

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195200GS

HANG TAG, Attn. Standby Equipment

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203374GS

PAINT-TOUCH UP, CNTNM CHARCOAL

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT-SPRAY, CNTNM CHARCOAL

Note: (Optional Accessory - Not Included)

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314941GS

BATTERY WARMER

Note: (Optional Accessory - Not Included)

$323.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6036

KIT-MAINTENANCE
(Superseded to 6872)

Note: (Optional Accessory - Not Included)

$117.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 6229

KIT-WIRELESS MONITOR

Note: (Optional Accessory - Not Included)

$

$

Not available

--

Briggs & Stratton 6231

KIT-COLD WEATHER (Includes Battery & Oil Warmers)

Note: (Optional Accessory - Not Included)

$485.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6254

KIT-OIL WARMERS

Note: (Optional Accessory - Not Included)

$303.99

$

Usually ships in 2-12 days

0

-

Briggs & Stratton 6331

KIT, Fuel Regulator (Low Pressure Applications Only)

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
