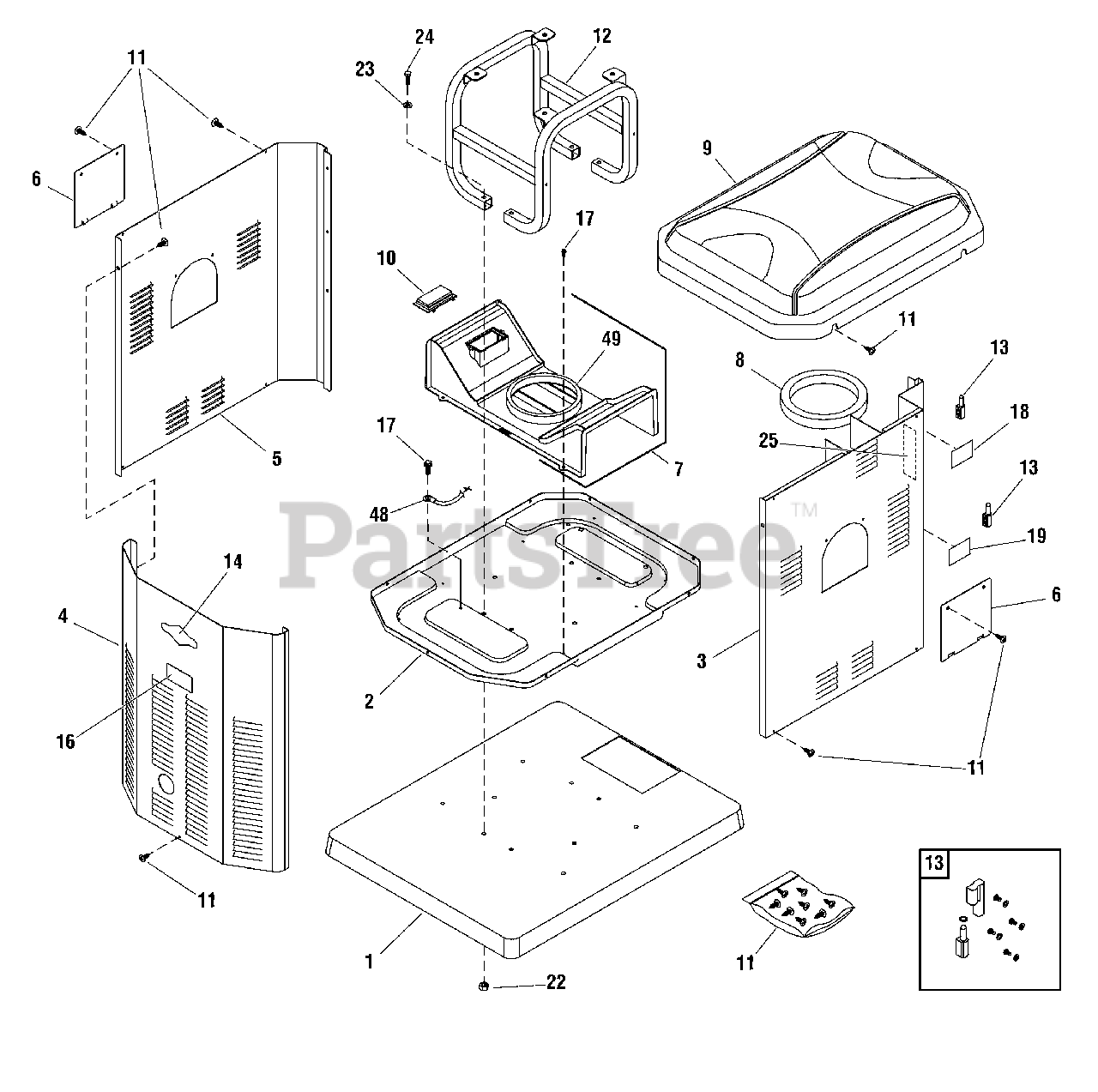

040391-00 - Briggs & Stratton 10kW Home Standby Generator with 100 Amp ATS Enclosure (208147) Parts Diagram

10kW Home Standby Generator with 100 Amp ATS

Enclosure (208147) Parts Diagram

  • Title

1

Briggs & Stratton 192441AGS

PAD, Mounting
(Superseded to 705917)

$201.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton U191852GS

BASE

$211.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 208150GS

PANEL, Right

$465.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 208149GS

PANEL, Front

$449.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 208151GS

PANEL, Left

$465.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton U208787GS

COVER, Oil Filter

$44.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195228GS

KIT, Baffle, Air In-take w/Seals

Note: (Includes Ref. No. 49)

$131.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194819GS

SEAL
(Superseded to 199629GS)

$51.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 208609GS

ROOF

Note: (Includes Ref. No. 8)

$589.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 196070GS

REGULATOR, Voltage

$47.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 206387GS

KIT, Hardware Enclosure

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B195088GS

CRADLE

$170.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 203442GS

DECAL

$15.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200409GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 195642GS

DECAL

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 186643GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

22

-----

* NUT, Flange Serrated, 5/16-18

$

$

Not available

23

-----

* WASHER, Flat, 5/16-M8

$

$

Not available

24

-----

* CAPSCREW, Hex Head, 5/16-1/8 x 2

$

$

Not available

25

Briggs & Stratton 206824GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 15253621GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 193061GS

SEAL, Foam

$18.99

$

Usually ships in 2-12 days

0
