040350-00 - GE 8kW Home Standby Generator Control Panel Group (319414) Parts Diagram

GE 8kW Home Standby Generator

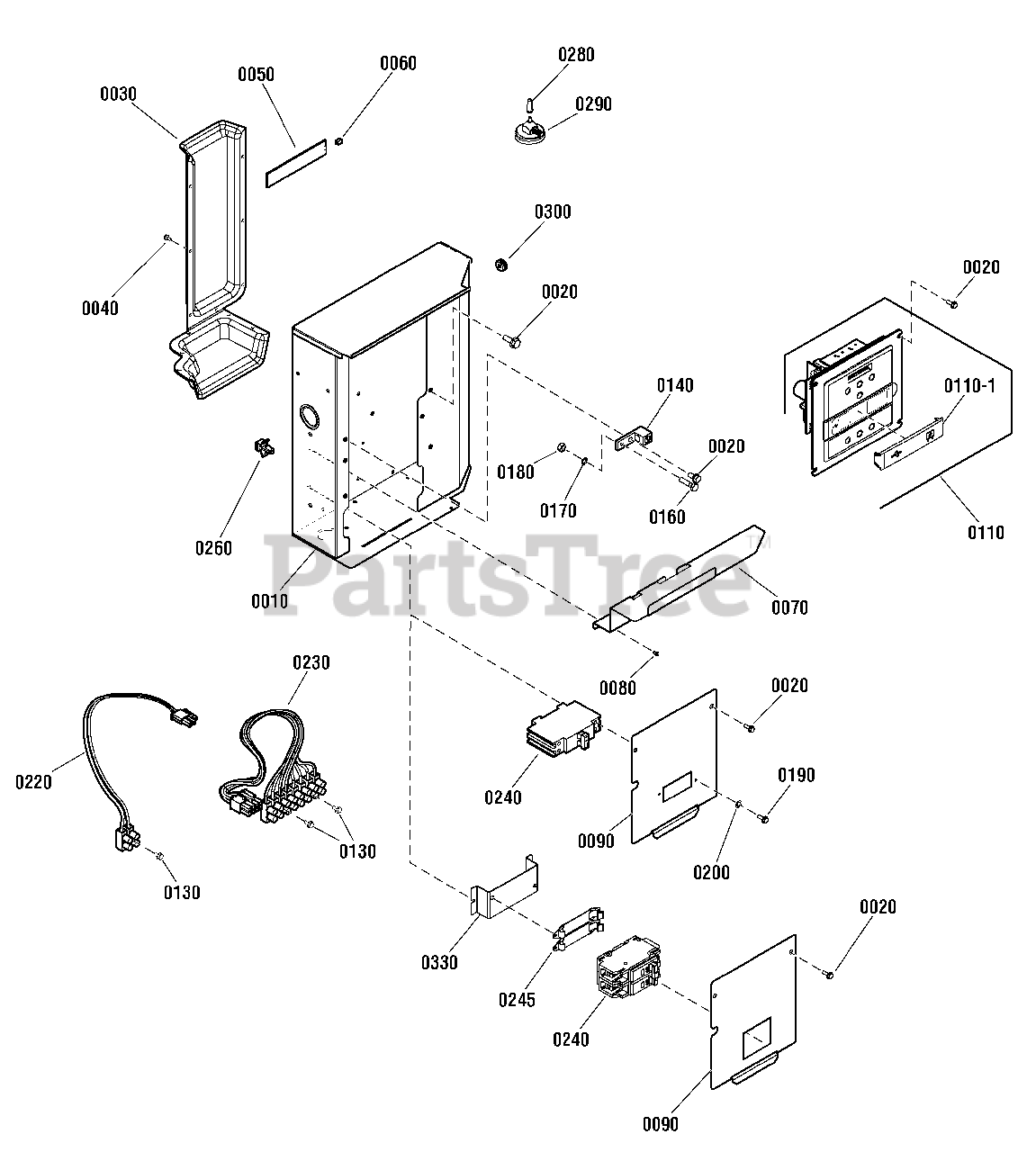

Control Panel Group (319414) Parts Diagram

  • Title

0010

Briggs & Stratton 316852GS

BOX-CONTROL
(Superseded to 706026)

$204.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 200020GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 316861GS

DUCT-CONTROL BOX

$94.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton B4300GS

SCREW
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0050

Briggs & Stratton 316862GS

PANEL-DUCT

$8.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 314661GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 316853GS

DIVIDER-CONTROL BOX

$59.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton B316856GS

COVER-CONTROL BOX

Note: (Use on models before Serial No. 1022429060)

$69.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 706029

COVER-CONTROL BOX

Note: (Use on models with Serial No. 1022429060 and after)

$43.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 314618GS

CONTROL PANEL

$564.99

$

Usually ships in 2-12 days

0

0110-1

Briggs & Stratton 314695GS

COVER

$

$

Currently unavailable

0130

Briggs & Stratton 314691GS

SCREW

$3.99

$

In Stock, only 3 left!

0

0140

Briggs & Stratton 199011GS

LUG-GROUND

$8.49

$

Usually ships in 2-12 days

0

0160

-----

* CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

0170

Briggs & Stratton 26850GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0180

-----

* NUT, 1/4-20

$

$

Not available

0190

Briggs & Stratton 36902GS

SCREW

Note: (Use on models before Serial No. 1022429060)

$3.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 23364GS

WASHER

Note: (Use on models before Serial No. 1022429060)

$3.49

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 316812GS

HARNESS-WIRING

$27.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 316813GS

HARNESS-WIRING

$71.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 316875GS

BREAKER-CIRCUIT

Note: (Use on models before Serial No. 1022429060)

$139.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 706028

BREAKER-CIRCUIT

Note: (Use on models with Serial No. 1022429060 and after)

$127.99

$

Usually ships in 2-12 days

0

0245

Briggs & Stratton 192770GS

BRACKET, Mounting

Note: (Use on models with Serial No. 1022429060 and after)

$54.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 195733GS

CLIP

$3.49

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 316808GS

ANTENNA

$11.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 316810GS

BASE-ANTENNA

$35.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 316855GS

GROMMET

$5.49

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 706031

BRACKET

Note: (Use on models with Serial No. 1022429060 and after)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316811GS

HARNESS-WIRE MAIN

Note: (Not Illustrated)

$201.99

$

Usually ships in 2-12 days

0
