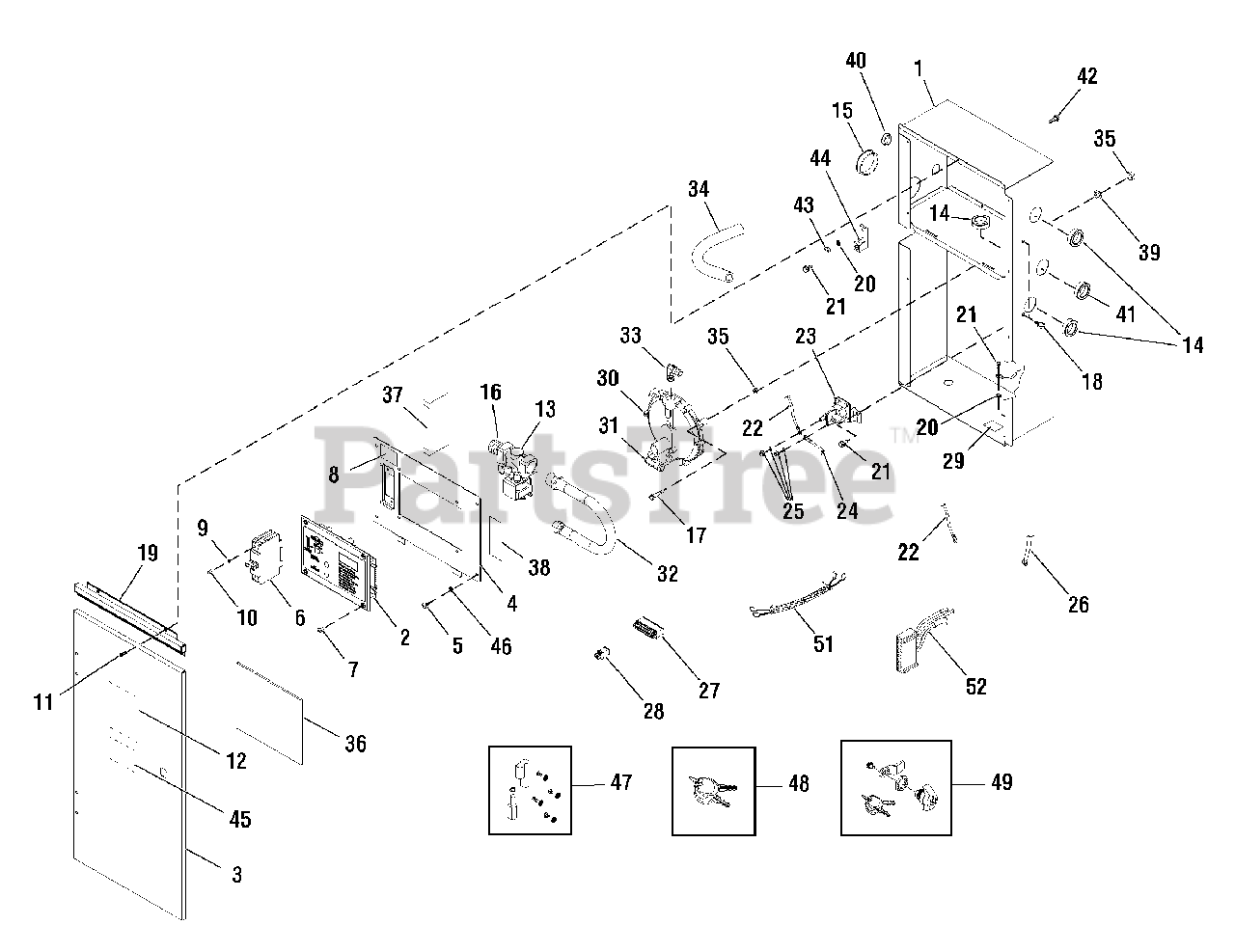

040344-00 - Briggs & Stratton 10kW Home Standby Generator with 100 Amp ATS Control Panel (208148) Parts Diagram

10kW Home Standby Generator with 100 Amp ATS

Control Panel (208148) Parts Diagram

  • Title

1

Briggs & Stratton 207903GS

BOX, Control Panel

$356.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201030GS

BOARD, Circuit
(Superseded to 311353GS)

$473.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton U207012GS

PANEL, Access

$248.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton U201825GS

PANEL, Control

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 208790GS

BREAKER, Circuit, 50A

$115.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 205947GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 205394GS

DECAL

$18.99

$

Usually ships in 2-12 days

0

9

-----

*WASHER, Shakeproof, 6

$

$

Not available

10

-----

*SCREW, Phillips Head, #6-32 x 3/8

$

$

Not available

11

-----

*SCREW, 10 x 32 x 1

$

$

Not available

12

Briggs & Stratton 205397GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 203015GS

BUSHING, Snap

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192449GS

FITTING

$7.49

$

Usually ships in 2-12 days

0

17

-----

*CAPSCREW, M6-1 x 30

$

$

Not available

18

Briggs & Stratton 195009GS

CLIPS

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton U207901GS

SUPPORT RAIL

$55.99

$

Usually ships in 2-12 days

0

20

-----

*WASHER, Shakeproof, ext M6 - 1/4

$

$

Not available

21

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 193171GS

WIRE

$30.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 691656

CONTACTOR, Starter

$31.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 194659GS

WIRE

$25.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 194251GS

KIT, Hardware

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 188573AGS

WIRE

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206609GS

DECAL

$13.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 205992GS

CONNECTOR, 10 Pin

$53.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 205991GS

CONNECTOR, 2 Pin

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193291GS

REGULATOR, Fuel
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 186151GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 186148GS

HOSE, Flex, NG / LPG

$76.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 205955GS

FITTING

$34.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 843858

HOSE

$62.99

$

Usually ships in 2-12 days

0

35

-----

*NUT, M6-1.0

$

$

Not available

36

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 207040GS

INSULATION

$21.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 196699GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

39

-----

*WASHER, Lock, 1/4

$

$

Not available

40

Briggs & Stratton 186582GS

BUSHING, Snap

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 197493GS

BUSHING, Snap

$3.99

$

Usually ships in 2-12 days

0

42

-----

*CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

43

-----

*NUT, 1/4-20

$

$

Not available

44

Briggs & Stratton 199011GS

LUG

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 193297GS

DECAL

$5.99

$

Usually ships in 2-12 days

0

46

-----

*WASHER, Shakeproof, Ext 10

$

$

Not available

47

Briggs & Stratton 198890GS

HINGS

$26.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 207652GS

KEY, Latch

$19.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 209538GS

LATCH

$58.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 206318GS

HARNESS

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 198894GS

HARNESS

$129.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE

Note: (Not Illustrated)

$2.99

$

In Stock, only 3 left!

0
