040324-00 - GE 13kW Home Standby Generator Main Unit Parts Diagram

GE 13kW Home Standby Generator

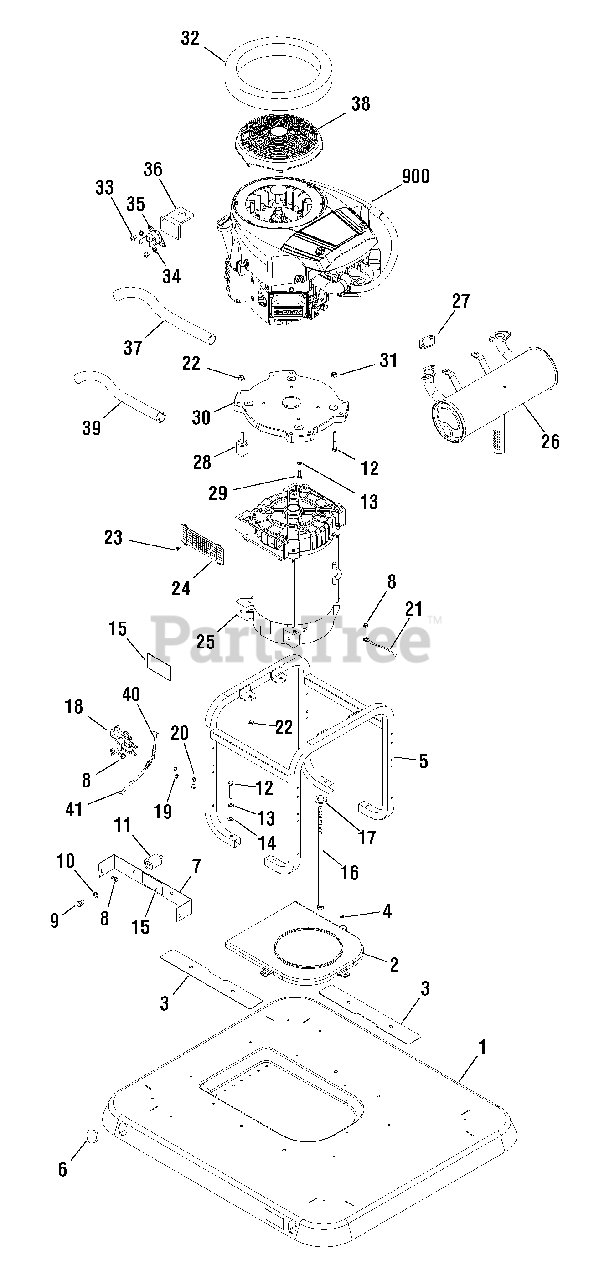

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B311623GS

BASE

$

$

Not available

2

Briggs & Stratton 311653GS

DUCT

$58.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311636GS

BRACKET

$22.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B311625GS

CRADLE

$434.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 198460GS

PLUG, Hole

$3.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 311677GS

BRACKET

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

9

* CAPSCREW, Hex Head, 3/8-16 x 1/2

$

$

Not available

10

* WASHER, Lock, 3/8

$

$

Not available

11

Briggs & Stratton 38353GS

MOUNT, Vibration

$39.99

$

Usually ships in 2-12 days

0

12

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

13

* WASHER, Lock, M8

$

$

Not available

14

* WASHER, Flat, M8

$

$

Not available

15

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200442GS

BOLT
(Superseded to 315204GS)

$24.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 203200GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

19

* WASHER, Lock, 1/4

$

$

Not available

20

* NUT, 1/4-20

$

$

Not available

21

Briggs & Stratton 313222GS

WIRE

$25.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

23

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 313330GS

SCREEN

$16.99

$

Usually ships in 2-12 days

0

25

ALTERNATOR

$

$

Not available

26

Briggs & Stratton 797908GS

MUFFLER

$386.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

28

Briggs & Stratton 194783GS

MOUNT-VIBRATION

$23.99

$

Usually ships in 2-12 days

0

29

* CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

30

Briggs & Stratton 311650GS

ADAPTER-ENGINE

$240.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 189160GS

NUT

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 313337GS

SEAL

$

$

Not available

33

Briggs & Stratton 186242GS

SCREW
(Superseded to 708730)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 27772GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 313228GS

SWITCH

$68.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 312068GS

PLATE-TEMP SWITCH

$29.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 1723165SM

HOSE-OIL

$20.99

$

In Stock, Qty 9

0

38

Briggs & Stratton 798767

COVER

$45.99

$

In Stock, Qty 8

0

39

Briggs & Stratton 312079GS

HOSE-FUEL

$77.99

$

Usually ships in 2-12 days

0

900

** ENGINE

$

$

Not available

--

Briggs & Stratton 311713GS

FLEX HOSE
(Superseded to 202295GS)

Note: (Parts Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313789GS

STRAP-BATTERY

Note: (Parts Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313574GS

KIT-LP CONVERSION

Note: (Parts Not Illustrated)

$56.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318186GS

KIT-MANUAL ACC

Note: (Parts Not Illustrated)

$287.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312758GS

PAINT-TOUCH UP GE BRONZE

Note: (Optional Accessory)

$23.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315008GS

PAINT-SPRAY GE BRONZE

Note: (Optional Accessory)

$209.99

$

Usually ships in 2-12 days

0
