040319-0 - GE 7kW Home Standby Generator Main Unit Parts Diagram

GE 7kW Home Standby Generator

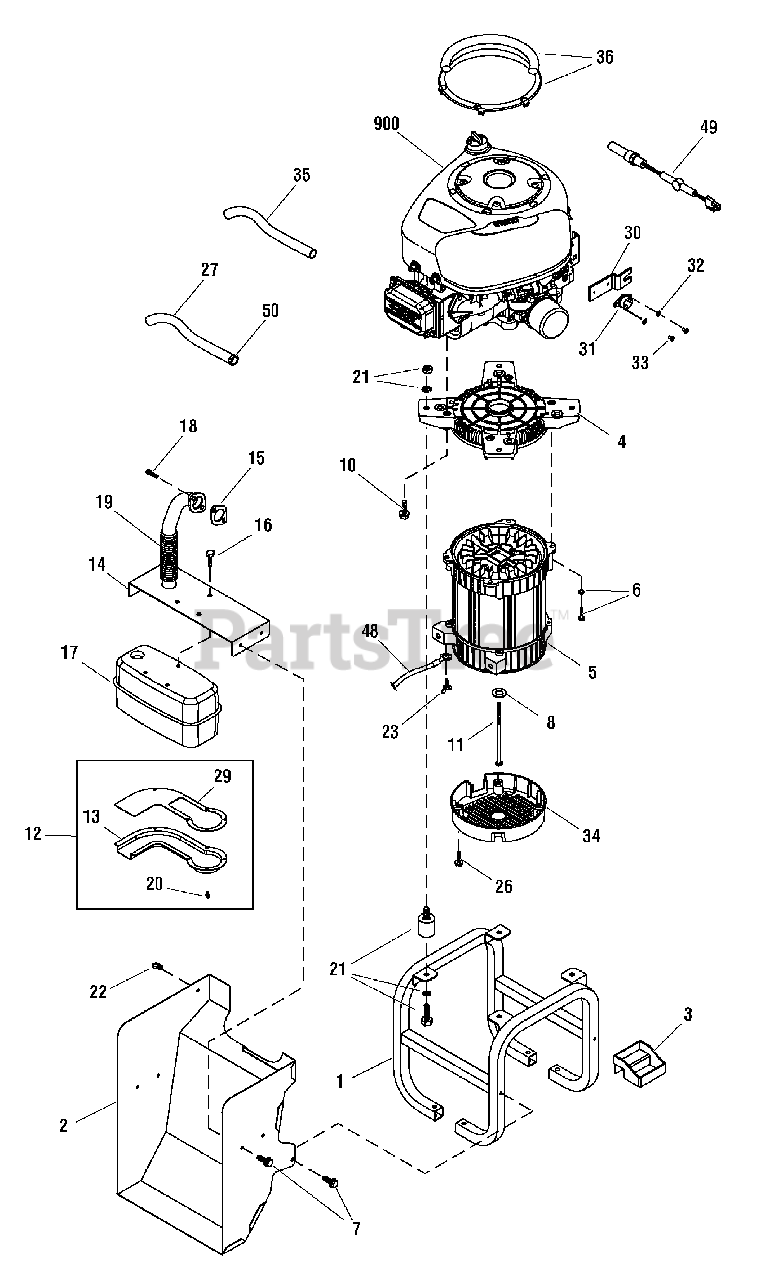

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B191860GS

CRADLE

$

$

Not available

2

Briggs & Stratton 194568GS

DUCT

$126.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 193536GS

TRAY, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

5

-----

ALTERNATOR, Complete

$

$

Not available

6

Briggs & Stratton 194728GS

KIT, Hardware Adapter

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 2830598SM

TAPTITE
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365HGS

CAPSCREW, Hex, Head, 5/16-24 x 9-7/8

$25.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 207270GS

DEFLECTOR, Muffler

$

$

Not available

13

Briggs & Stratton 193475GS

DEFLECTOR

$96.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 206856GS

BRACKET, Muffler
(Superseded to 315466GS)

$306.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 692236

GASKET

$5.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 83512GS

SCREW

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 207059GS

MUFFLER

$79.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 698941

SCREW

$6.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 194159GS

PIPE, Exhaust

$

$

Not available

20

Briggs & Stratton 195008GS

KIT, Hardware, Deflector

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194209GS

KIT, Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192940GS

CLIP

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86494GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206817GS

HOSE, Fuel

$63.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194221GS

ARRESTOR, Spark

$31.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 206047GS

PLATE, Temp Switch

$13.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 206045GS

SWITCH

$64.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 27772GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 186242GS

SCREW
(Superseded to 708730)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 192906GS

COVER, Rear Bearing

$21.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 311723GS

KIT, Seal

$55.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 15253621GS

WIRE

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 01916

OIL WARMER

$310.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 57822GS

CLAMP

$4.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 208380GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 209433GS

MANUAL, Installation

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208379GS

KIT, Manual ACC

Note: (Not Illustrated)

$169.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 790263

FILTER, Cartridge

Note: (Not Illustrated)

$36.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 492392B

FILTER, Oil

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 202295GS

FLEX HOSE

Note: (Not Illustrated)

$60.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198810GS

PAINT, Touch Up, GE Gray

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 277766TRI

MANUAL, Engine

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 195069GS

KIT, LP Conversion, LP

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 186643GS

DECAL, Fuel Inlet
(Superseded to 186640GS)

Note: (Not Illustrated)

$68.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206824GS

DECAL, Warning Auto Start

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200409GS

DECAL, Warning Hot

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 196731BGS

BIT, Screw

Note: (Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 01915

BATTERY WARMER

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 6034

KIT, Maintenance

Note: (Optional Accessory)

$98.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199474GS

PAINT, Spray, Gray

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0
