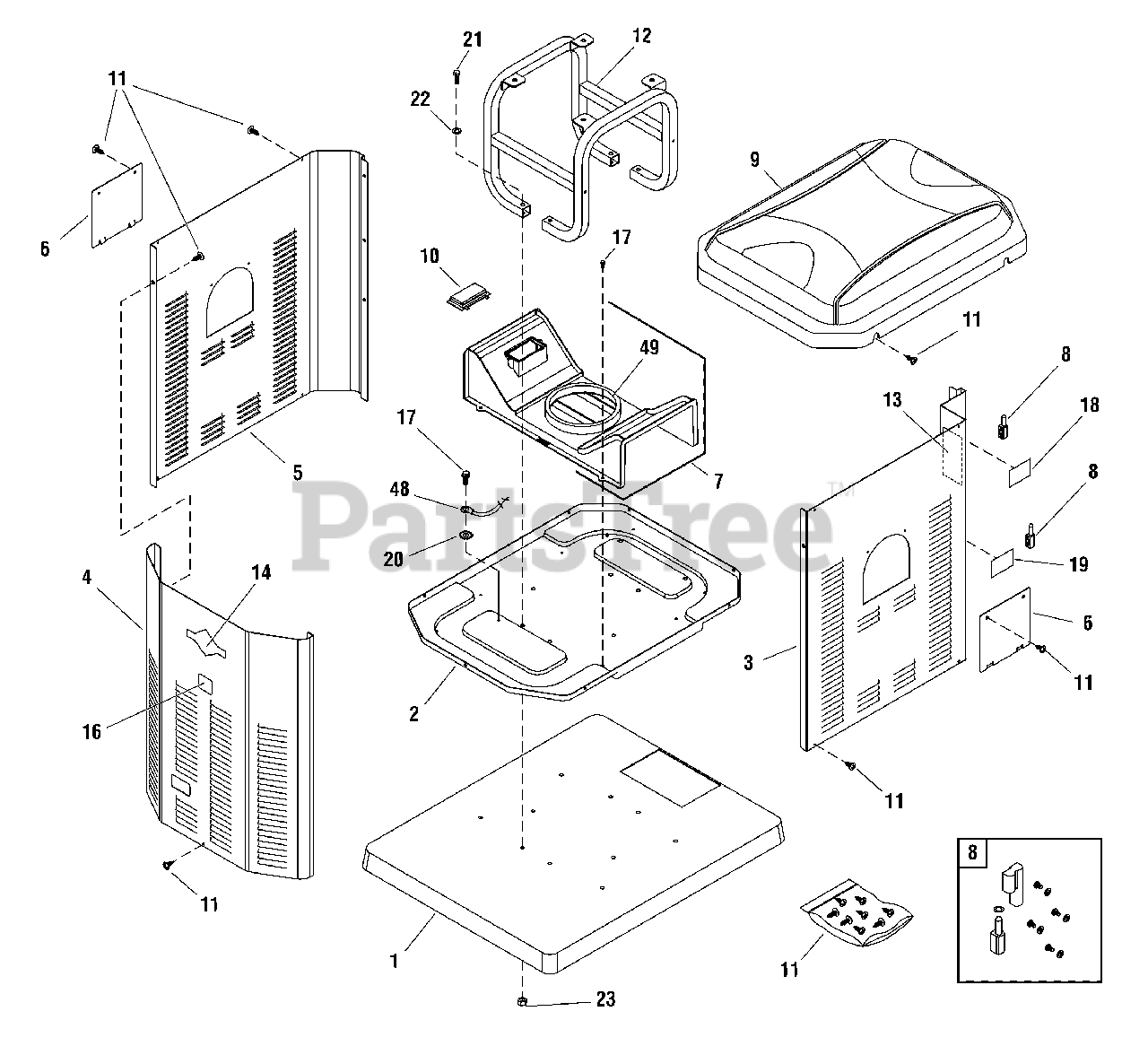

040315GEC-00 - GE 7kW Home Standby Generator with 50 Amp ATS Enclosure (208191) Parts Diagram

GE 7kW Home Standby Generator with 50 Amp ATS

Enclosure (208191) Parts Diagram

  • Title

1

Briggs & Stratton 192441AGS

PAD, Mounting
(Superseded to 705917)

$201.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton T191852GS

BASE, Plate

$240.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 208198GS

ASSEMBLY, Panel, Right

$

$

Currently unavailable

4

Briggs & Stratton 208197GS

ASSEMBLY, Panel, Front

$481.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 208199GS

ASSEMBLY, Panel, Left Side

$481.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton T208787GS

COVER, Oil Filter Drain

$56.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195228GS

KIT, Baffle, Air In-take w/Seals

Note: (Includes Ref. No. 49)

$131.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 207586GS

ASSEMBLY, Roof

$465.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 196070GS

REGULATOR, Voltage

$47.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 206387GS

KIT, Enclosure Hardware Bag

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B191860GS

CRADLE

$

$

Not available

13

Briggs & Stratton 206824GS

DECAL, Warning, Auto Start/Shock

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 207095GS

DECAL, Logo

$37.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200409GS

DECAL, Warning Hot

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0

18

Briggs & Stratton 195642GS

DECAL, Rainproof

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 186643GS

DECAL, Fuel Inlet
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

20

-----

*WASHER, Shakeproof, Ext M6 - 1/4

$

$

Not available

21

-----

*CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

22

-----

*WASHER, Flat, 5/16 - M8

$

$

Not available

23

-----

*NUT, Flange Serrated, 5/16-18

$

$

Not available

48

Briggs & Stratton 15253621GS

WIRE, Ground

$6.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 193061GS

SEAL, Foam

$18.99

$

Usually ships in 2-12 days

0
