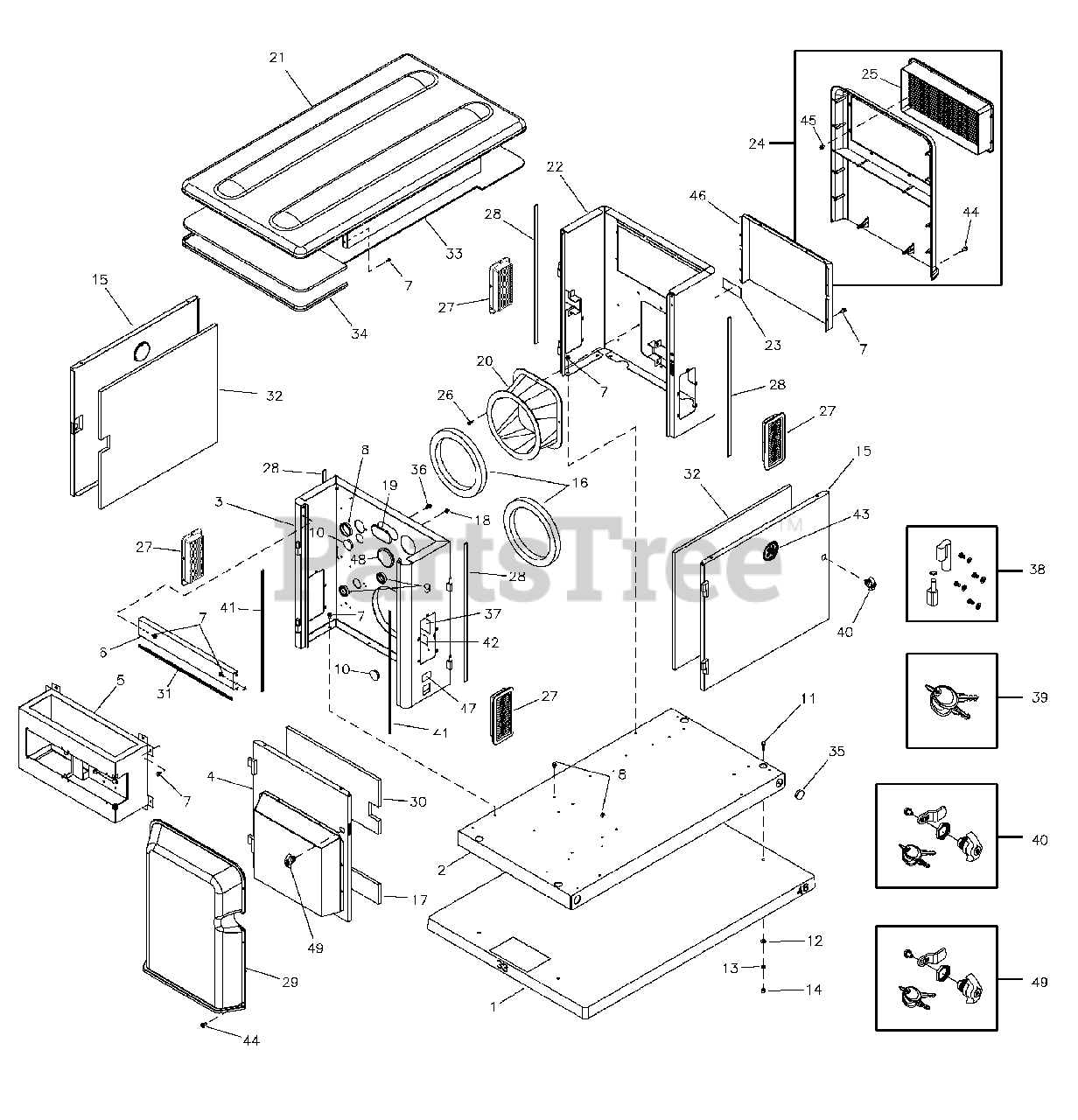

040307GEC-0 - GE 12kW Home Standby Generator Enclosure (207183) Parts Diagram

GE 12kW Home Standby Generator

Enclosure (207183) Parts Diagram

  • Title

1

Briggs & Stratton 197275GS

PAD, Mounting

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton T203030GS

BASE

$297.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209359GS

BULKHEAD, Engine

Note: (Includes the following 6 Items)

$744.99

$

Usually ships in 2-12 days

0

--

-----

BULKHEAD, Engine

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

KIT, Plugs

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

PIN

$

$

Not available

4

Briggs & Stratton 207189GS

DOOR

Note: (Includes the following 5 Items)

$814.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

LINER

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

5

Briggs & Stratton 209435GS

DUCT

$496.99

$

Usually ships in 2-12 days

0

--

-----

DECAL

$

$

Not available

--

-----

LUG

$

$

Not available

--

-----

BRACKET

$

$

Not available

6

Briggs & Stratton 207193GS

SUPPORT, Rail

Note: (Includes the following 3 Items)

$82.99

$

Usually ships in 2-12 days

0

--

-----

SUPPORT, Rail

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

DECAL

$

$

Not available

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

8

Briggs & Stratton 203015GS

BUSHING, Snap

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198461GS

PLUG, Hole

$3.49

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex, Head, 3/8-16 x 1

$

$

Not available

12

-----

* WASHER, Flat, 3/8 - M10

$

$

Not available

13

-----

* WASHER, Lock, 3/8

$

$

Not available

14

-----

* NUT, 3/8-16

$

$

Not available

15

Briggs & Stratton 207190GS

DOOR

Note: (Includes the following 4 Items)

$248.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

--

-----

BADGE

$

$

Not available

16

Briggs & Stratton 199629GS

SEAL, Foam

$51.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 203303GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tiewrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 205374GS

PLUG

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 203029GS

ADAPTER, Alternator

$68.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 207191GS

ROOF

Note: (Includes the following 2 Items)

$760.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

22

Briggs & Stratton 207192GS

BULKHEAD, Alternator

Note: (Includes the following 4 Items)

$543.99

$

Usually ships in 2-12 days

0

--

-----

DECAL

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

PIN

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

23

Briggs & Stratton 200409GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 310073GS

COVER

$271.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 209529GS

VENT

$85.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 209530GS

VENT

$27.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL, Foam

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 204618GS

COVER

$283.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 203302GS

INSULATION

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 209177GS

SEAL

$14.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 207349GS

INSULATION

$162.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 209176GS

GASKET

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 198460GS

PLUG

$3.49

$

In Stock, Qty 13

0

36

Briggs & Stratton 192940GS

CLIP

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 193297GS

DECAL

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207652GS

KEY, Latch

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 198889GS

LATCH

$48.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 209307GS

SEAL

$9.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 207095GS

BADGE

$37.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 209621GS

PUSHNUT

$3.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B209172GS

COVER

$157.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 186643GS

DECAL, Fuel Inlet
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 202555GS

PLUG

$7.99

$

In Stock, only 1 left!

0

49

Briggs & Stratton 209539GS

LATCH

$70.99

$

Usually ships in 2-12 days

0
