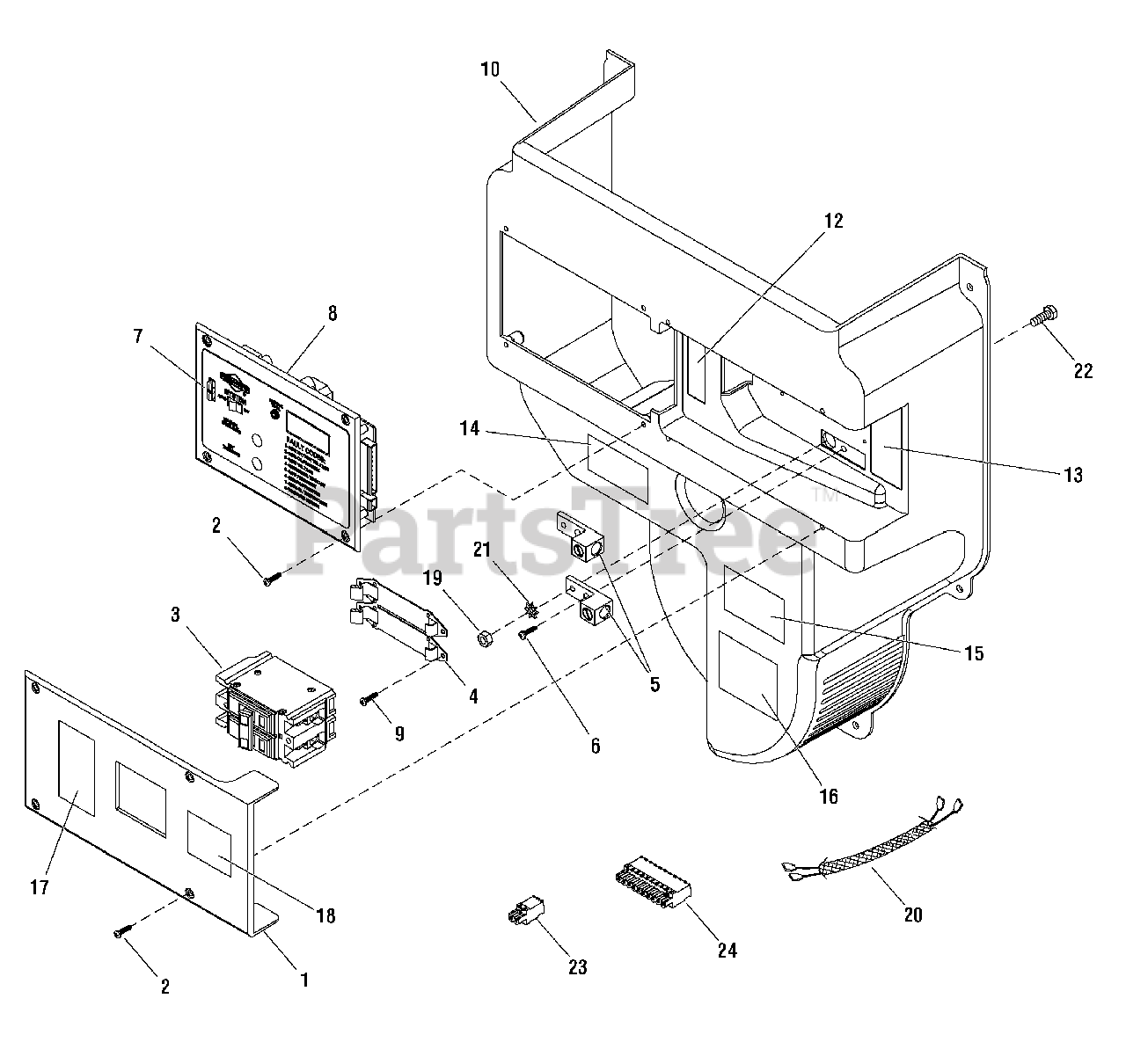

040304-0 - Briggs & Stratton 18kW Home Standby Generator Control Panel (312135) Parts Diagram

18kW Home Standby Generator

Control Panel (312135) Parts Diagram

  • Title

1

Briggs & Stratton 198911GS

COVER

$

$

Not available

2

Briggs & Stratton B3311GS

PLASTITE

$4.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312114GS

BREAKER, Circuit, 90A

$199.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192770GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199011GS

LUG

$8.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 191991GS

PLASTITE

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 198573GS

FUSE

$2.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 311353GS

PANEL, Control

$473.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 197492GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198910GS

DUCT

$256.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198549GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 198550GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205393GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 193297GS

DECAL

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205394GS

DECAL

$18.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205395GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

19

-----

* NUT, 1/4-20

$

$

Not available

20

Briggs & Stratton 198517GS

HARNESS, Wiring

$15.99

$

Usually ships in 2-12 days

0

21

-----

* WASHER, Shakeproof, M6 1/4

$

$

Not available

22

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

23

Briggs & Stratton 198515GS

CONNECTOR, 2 Pin

$8.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 198516GS

CONNECTOR, 10 Pin

$

$

Not available

--

Briggs & Stratton 202882GS

HARNESS, Wiring

Note: (Not Illustrated)

$243.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203020GS

HARNESS, AVR

Note: (Not Illustrated)

$83.99

$

Usually ships in 2-12 days

0
