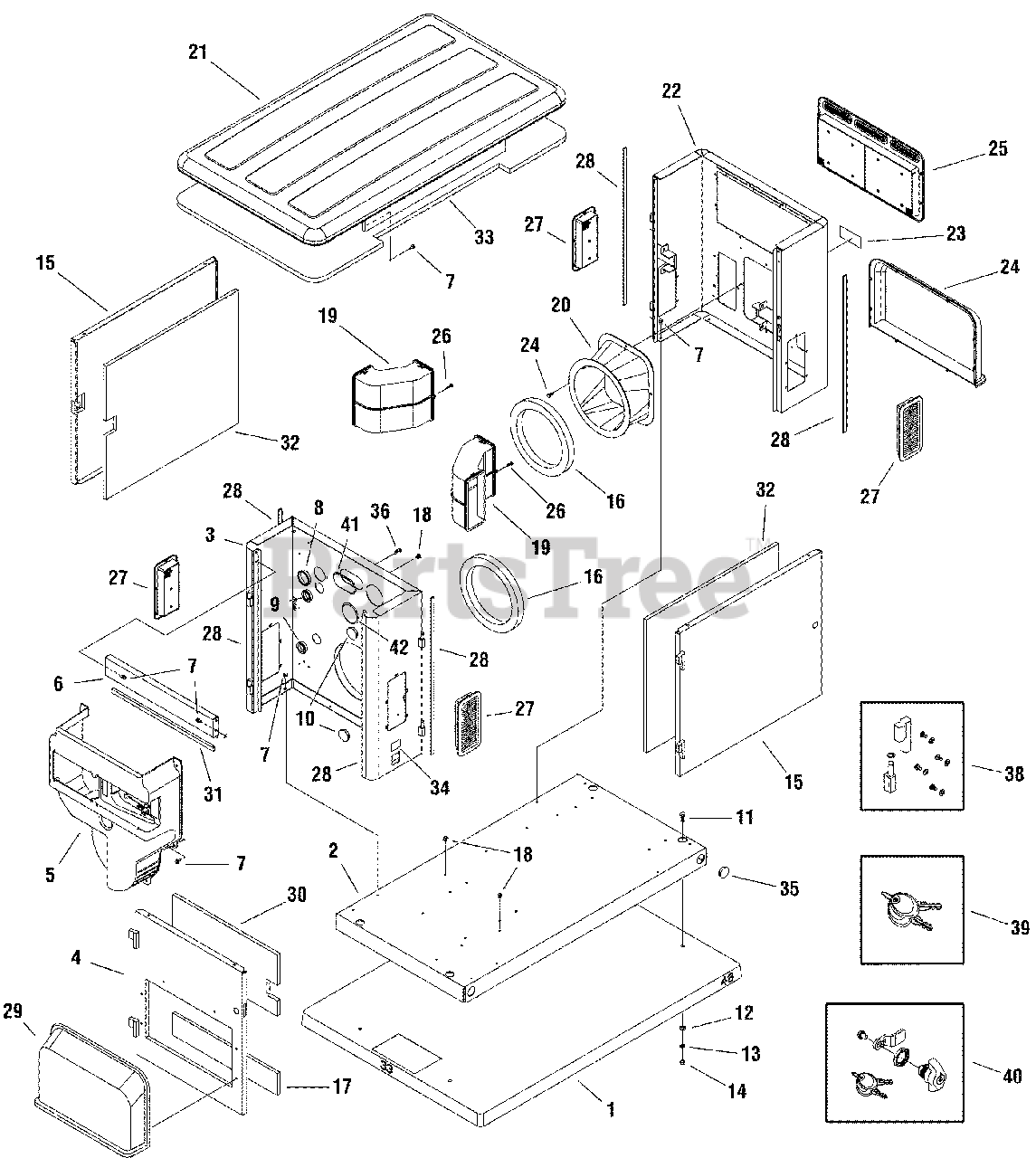

040302A-00 - Briggs & Stratton 12kW Home Standby Generator Enclosure (317705) Parts Diagram

12kW Home Standby Generator

Enclosure (317705) Parts Diagram

  • Title

1

Briggs & Stratton 197275GS

PAD, Mounting

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton U313049GS

BASE

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton U313049GS

BASE

$496.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209215GS

BULKHEAD, Engine

Note: (Includes the following 6 items)

$574.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 209215GS

BULKHEAD, Engine

$574.99

$

Usually ships in 2-12 days

0

--

-----

BULKHEAD, engine

$

$

Not available

--

-----

BULKHEAD, engine

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

KIT, Plugs

$

$

Not available

--

-----

KIT, Plugs

$

$

Not available

--

-----

PIN

$

$

Not available

--

-----

PIN

$

$

Not available

4

Briggs & Stratton 209216GS

DOOR

Note: (Includes the following 3 items)

$264.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 209216GS

DOOR

$264.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

--

-----

HINGES

$

$

Not available

5

Briggs & Stratton 198910GS

DUCT

Note: (Includes the following 3 items)

$256.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198910GS

DUCT

$256.99

$

Usually ships in 2-12 days

0

--

-----

DECAL

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

LUG

$

$

Not available

--

-----

LUG

$

$

Not available

--

-----

BRACKET

$

$

Not available

--

-----

BRACKET

$

$

Not available

6

Briggs & Stratton 209217GS

SUPPORT, Rail

Note: (Includes the following 3 items)

$82.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 209217GS

SUPPORT, Rail

$82.99

$

Usually ships in 2-12 days

0

--

-----

SUPPORT, Rail

$

$

Not available

--

-----

SUPPORT, Rail

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

DECAL

$

$

Not available

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 203015GS

BUSHING, Snap

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 203015GS

BUSHING, Snap

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198461GS

PLUG, Hole

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205479GS

REGULATOR-VOLTAGE
(Superseded to 707157)

$423.99

$

Usually ships in 2-12 days

0

11

-----

* CAP SCREW, Hex Head-3/8 - 16 x 1

$

$

Not available

11

-----

* HHCS-3/8 - 16 x 1

$

$

Not available

12

-----

* WASHER, Flat 3/8-M10

$

$

Not available

12

-----

* WASHER-FLAT 3/8-M10

$

$

Not available

13

-----

* WASHER, Lock 3/8

$

$

Not available

13

-----

* WASHER-LOCK 3/8

$

$

Not available

14

-----

* NUT, 3/8-16

$

$

Not available

14

-----

* NUT-3/8-16

$

$

Not available

15

Briggs & Stratton 200438GS

DOOR

Note: (Includes the following 4 items)

$282.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 200438GS

DOOR

$282.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

--

-----

HINGES

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

DECAL

$

$

Not available

16

Briggs & Stratton 199629GS

SEAL, Foam

$51.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 199629GS

SEAL, Foam

$51.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 203303GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 203303GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie wrap

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie wrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 195935GS

DUCT

$75.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192940GS

Clip

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 203029GS

ADAPTER, Alternator

$68.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 202957GS

SEAL, Foam
(Superseded to 770424)

$74.99

$

In Stock, Qty 7

0

21

Briggs & Stratton 198893GS

ROOF

Note: (Includes the following 2 items)

$547.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 198893GS

ROOF

$547.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

INSULATION

$

$

Not available

22

Briggs & Stratton 201282GS

BULKHEAD, Alternator

Note: (Includes the following 4 items)

$418.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 201282GS

BULKHEAD, Alternator

$418.99

$

Usually ships in 2-12 days

0

--

-----

DECAL

$

$

Not available

--

-----

DECAL

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

PIN

$

$

Not available

--

-----

PIN

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

23

Briggs & Stratton 200409GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 200409GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194679GS

COVER, Air Intake

$

$

Not available

24

Briggs & Stratton 203303GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 198926GS

VENT

$132.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 198926GS

VENT

$132.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 198460GS

PLUG, Hole

$3.49

$

In Stock, Qty 13

0

27

Briggs & Stratton 198927GS

VENT

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 198927GS

VENT

$20.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL-FOAM

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL-FOAM

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194694GS

COVER, Air Intake

$

$

Not available

29

Briggs & Stratton 194694GS

COVER, Air Intake

$

$

Not available

30

Briggs & Stratton 203302GS

INSULATION

$35.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 203302GS

INSULATION

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197312GS

SEAL, Foam

$4.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197312GS

SEAL, Foam

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION

$48.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION

$117.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION

$117.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 186643GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 198460GS

PLUG, Hole

$3.49

$

In Stock, Qty 13

0

35

Briggs & Stratton 207652GS

KEY-LATCH

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 192940GS

CLIP

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 204700GS

LATCH

$24.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 186643GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 207652GS

KEY, Latch

$19.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 313085GS

SCREW

$4.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 204700GS

LATCH

$24.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 198461GS

PLUG, Hole

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 205374GS

PLUG, Oval

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 202555GS

PLUG, Hole

$7.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 202555GS

PLUG, Hole

$7.99

$

In Stock, only 1 left!

0
