040295A-0 - Briggs & Stratton 12.5kW Home Standby Generator Alternator (316567) Parts Diagram

12.5kW Home Standby Generator

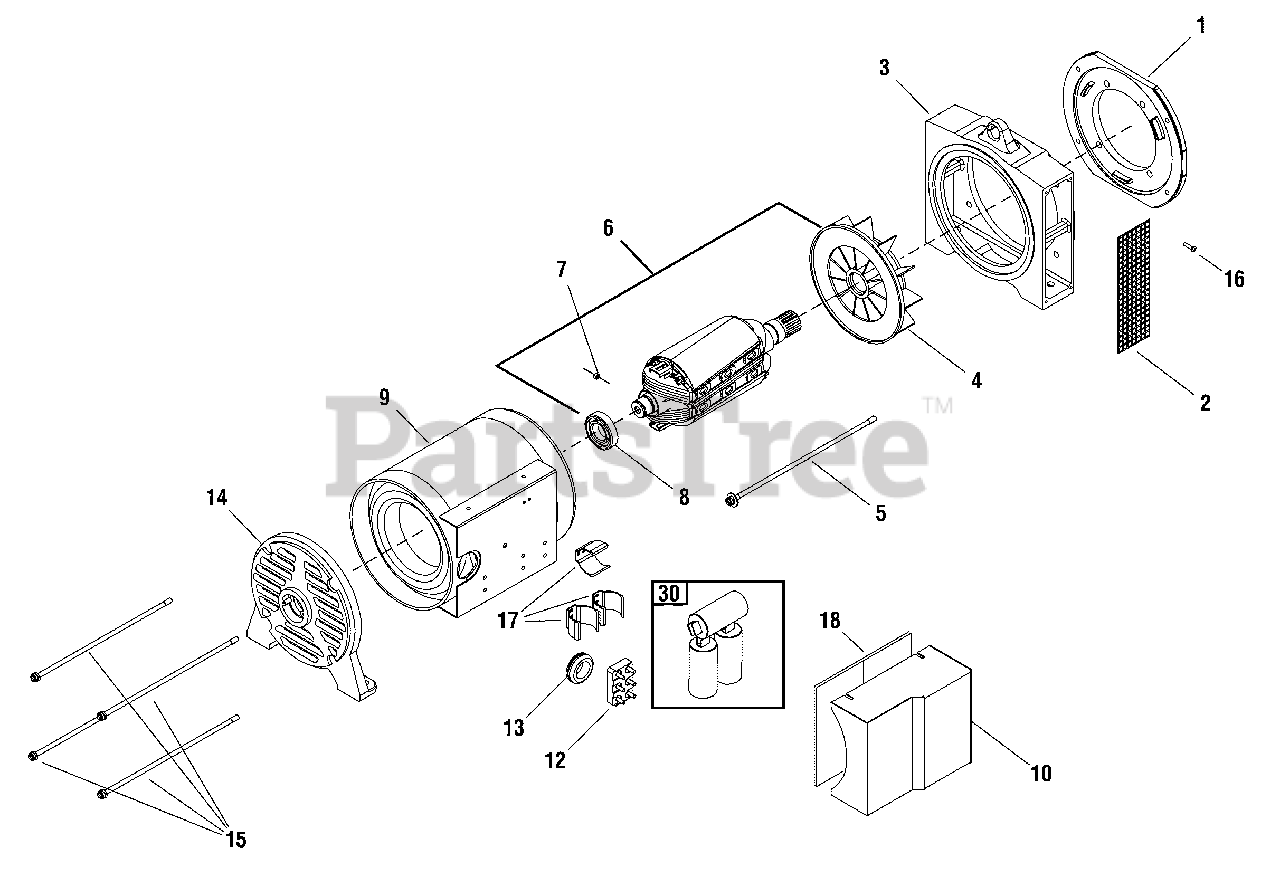

Alternator (316567) Parts Diagram

  • Title

1

Briggs & Stratton 201472GS

FLANGE

$152.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201410GS

GRID

$48.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 201397GS

ADAPTER, Engine

$892.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201412GS

FAN

$114.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4908GS

BOLT

$28.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 201473GS

ROTOR

Note: (Includes Ref. Nos. 4, 7 & 8)

$759.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 201474GS

DIODE

$51.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 201383GS

BEARING

$77.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 204863GS

STATOR

$2482.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 201406GS

COVER, Side

$

$

Not available

12

Briggs & Stratton 201477GS

CONNECTOR

$40.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 201478GS

GROMMET

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 201407GS

CARRIER, Bearing

$279.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 201479GS

BOLT

$14.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4920GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205171GS

CLIP

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

30

-----

VERIFY MICROFARAD (uF) RATING BEFORE ORDERING. REPLACEMENT CAPACITORS MUST MATCH ORIGINALS. IN MULTIPLE CAPACITOR SYSTEMS, IF ONE CAPACITOR IS NOT WORKING ALL CAPACITORS MUST BE REPLACED.

$

$

Not available

--

Briggs & Stratton 316632GS

KIT, Capacitors

Note: (Includes 2 ea. 35uF and 1 ea. 30uF)

$162.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316365GS

CAPACITOR, 30uF (1 ea.)

Note: (Optional service part, order as requried)

$73.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316367GS

CAPACITOR, 35uF (1 ea.)
(Superseded to 317837GS)

Note: (Optional service part, order as requried)

$67.99

$

Usually ships in 2-12 days

0
