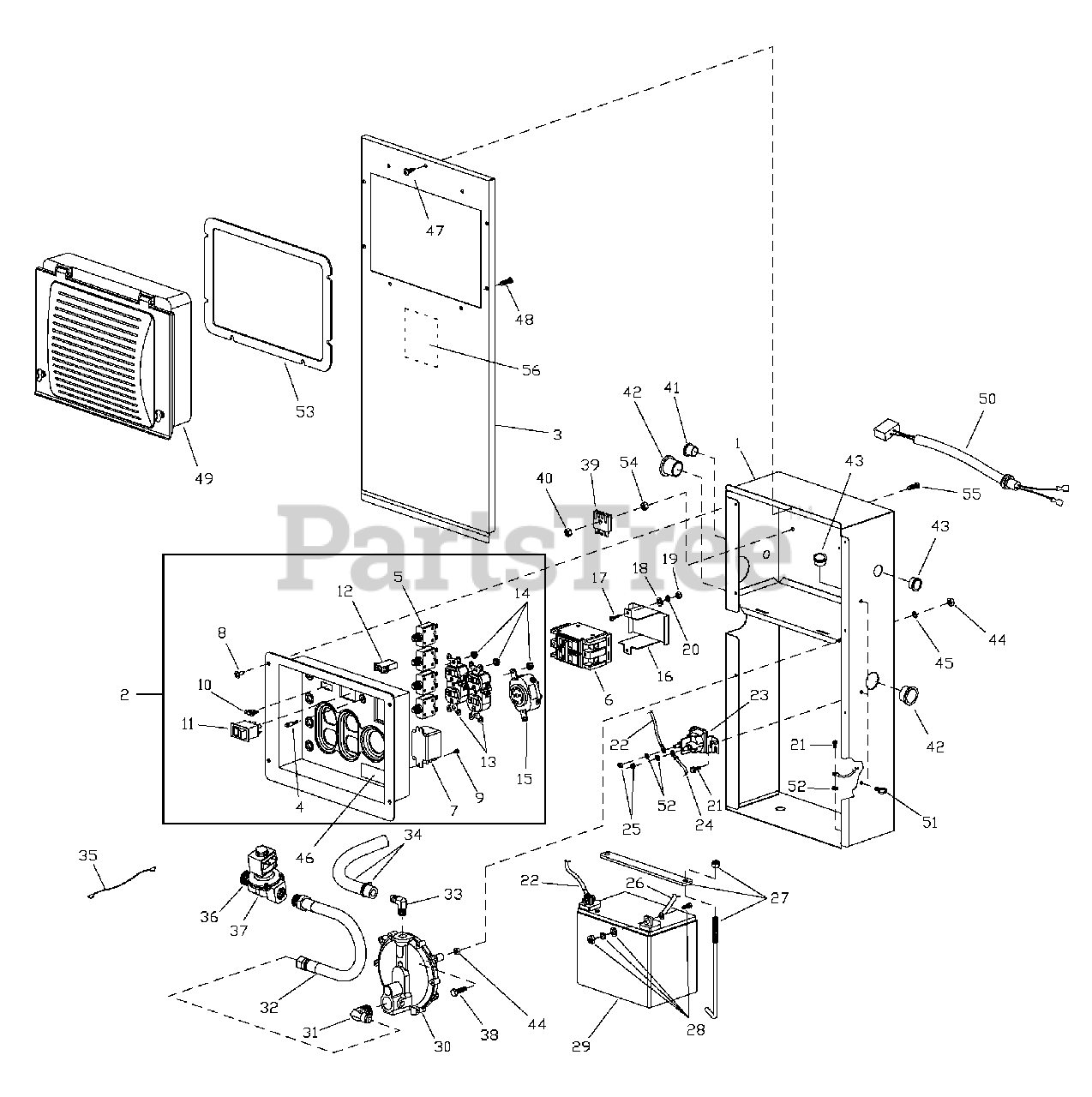

040248-0 - Briggs & Stratton 7kW Home Standby Generator, Dual Fuel Control Panel (200264) Parts Diagram

7kW Home Standby Generator, Dual Fuel

Control Panel (200264) Parts Diagram

  • Title

1

Briggs & Stratton 195229GS

PANEL, Control

$

$

Not available

2

Briggs & Stratton 199925GS

PANEL, Control

$323.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203441GS

PANEL, Back

$

$

Not available

4

Briggs & Stratton 200384GS

LAMP, LED

$15.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 192828DGS

BREAKER, Circuit, 30A

$201.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 200641GS

RELAY

$

$

Not available

8

-----

* SCREW, #10-32 x 5.8

$

$

Not available

9

Briggs & Stratton 200245GS

SCREW, M3.5-1.57 x 8.0

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198573GS

FUSE

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 195218GS

SWITCH, ON/OFF/ON

$73.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200367GS

HOLDER, Fuse

$18.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68759GS

OUTLET, 120, 20A

$24.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 189165GS

PALNUT, 5/32

$3.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 43437GS

OUTLET, 120/240V TL30A

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192931GS

BRACKET

$

$

Not available

17

-----

* SCREW, Phillips Head, M4-0.7 x 20

$

$

Not available

18

-----

* WASHER, M4

$

$

Not available

19

-----

* NUT, Hex, M4 - 0.7

$

$

Not available

20

-----

* LOCKWASHER, #8

$

$

Not available

21

-----

* BOLT, Swage, 1/4-20 x 1/2

$

$

Not available

22

Briggs & Stratton 193171GS

WIRE

$

$

Not available

23

Briggs & Stratton 691656

CONTACTOR, Starter

$31.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 194659GS

WIRE

$25.99

$

Usually ships in 2-12 days

0

25

-----

* NUT, 1/4-20

$

$

Not available

26

Briggs & Stratton 188573AGS

WIRE

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 199844GS

KIT, Hardware, Battery

$19.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 193347GS

KIT, Hardware, Battery Terminal

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188443GS

BATTERY

$

$

Not available

30

Briggs & Stratton 193291GS

REGULATOR, NG/LPG
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 186151GS

FITTING

$

$

Not available

32

Briggs & Stratton 186148GS

HOSE

$76.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 186150GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195005GS

HOSE, NG/LPG

$36.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 193537CGS

WIRE

$7.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 192449GS

FITTING

$

$

Not available

37

Briggs & Stratton 194683GS

SOLENOID, Gas Fuel

$386.99

$

Usually ships in 2-12 days

0

38

-----

* CAPSCREW, Hex, Head, M6-1 x 30

$

$

Not available

39

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

40

Briggs & Stratton 200576GS

NUT, Lock, 8-32

$

$

Currently unavailable

41

Briggs & Stratton 192455GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186582GS

BUSHING, Snap

$2.99

$

Usually ships in 2-12 days

0

44

-----

* NUT, M6-1

$

$

Not available

45

-----

* LOCKWASHER, 1/4

$

$

Not available

46

Briggs & Stratton 200227GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

47

-----

* SCREW, 10 x 32 x 1

$

$

Not available

48

Briggs & Stratton B3311GS

PLASTITE

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 200130GS

COVER, Panel

$

$

Not available

50

Briggs & Stratton 200362GS

HARNESS, Wiring

$

$

Not available

51

Briggs & Stratton 195009GS

KIT, Retainer Clips

$3.49

$

Usually ships in 2-12 days

0

52

-----

* WASHER, Shakeproof, EXT M6-1/4

$

$

Not available

53

Briggs & Stratton 200285GS

SEAL, Foam

$

$

Not available

54

-----

* NUT, Hex, 8-32

$

$

Not available

55

-----

* SCREW, Hex, Head, Flanged, 8-32

$

$

Not available

56

Briggs & Stratton 205397GS

DECAL

$16.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201010GS

RELAY

Note: (Not Illustrated)

$

$

Not available
