040234-0 - Briggs & Stratton 15kW Home Standby Generator Alternator Parts Diagram

15kW Home Standby Generator

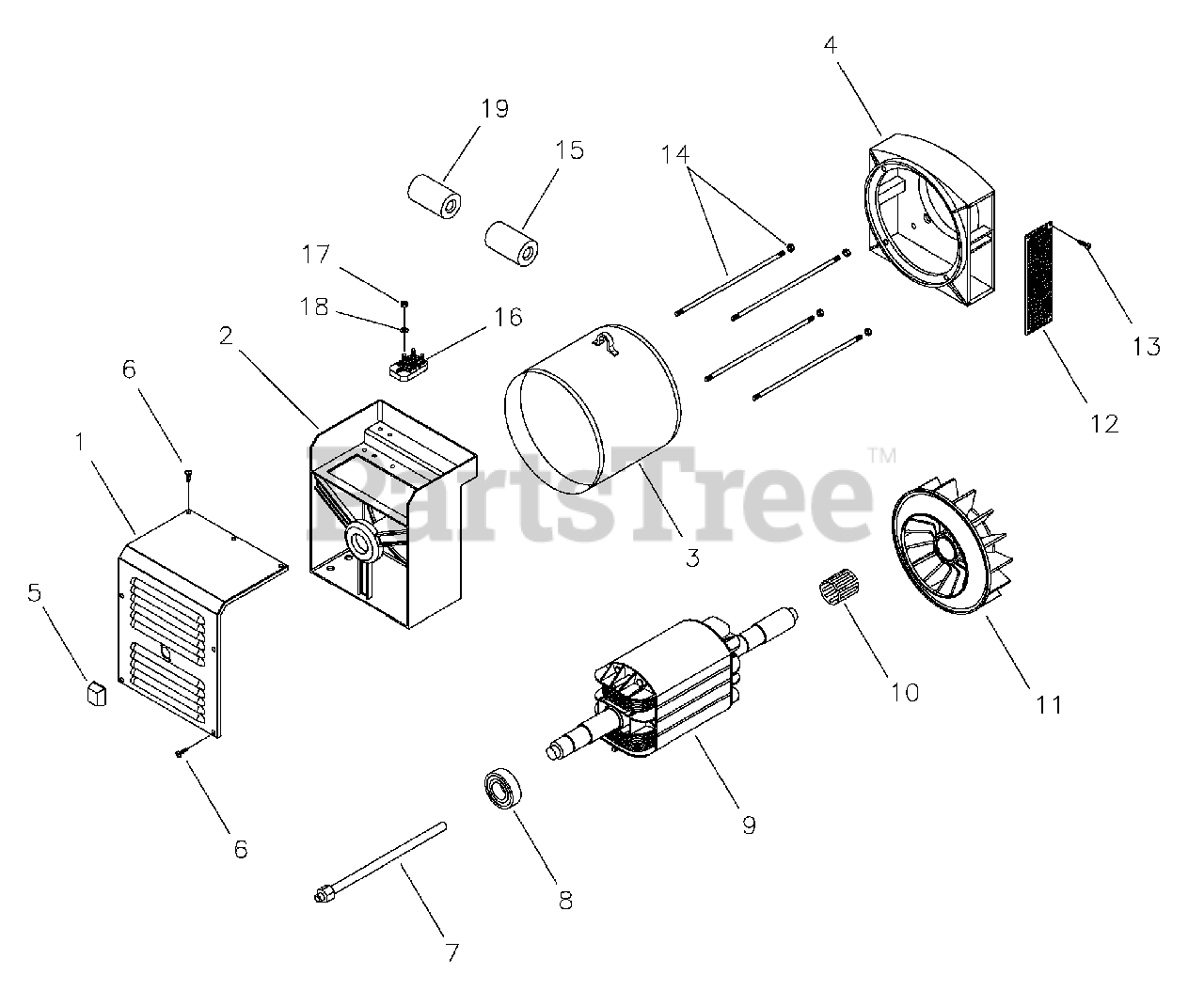

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 199339GS

BOX, Lid, Terminal

$83.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199340GS

CARRIER, Bearing

$449.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 199351GS

STATOR

$2249.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 199349GS

ADAPTER, Engine

$318.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199338GS

PLUG, Hole

$13.99

$

Usually ships in 2-12 days

0

6

-----

*CAPSCREW, Hex Head, M5 x 10mm

$

$

Not available

7

Briggs & Stratton 199341GS

BOLT

$64.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 199342GS

BEARING

$91.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 199343GS

ROTOR

$2094.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 199344GS

RING, Fixing

$32.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 199345GS

FAN

$162.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 199350GS

SCREEN

$16.99

$

Usually ships in 2-12 days

0

13

-----

*SCREW, Phillips Head, M5-0.8 x 20

$

$

Not available

14

Briggs & Stratton 199348GS

BOLT

$80.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 199347GS

CAPACITOR
(Superseded to 312700GS)

$190.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 199346GS

BOARD, Terminal

$29.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 199352GS

NUT

$

$

Currently unavailable

18

Briggs & Stratton 199353GS

WASHER

$

$

Currently unavailable

19

Briggs & Stratton 206145GS

CAPACITOR
(Superseded to 312700GS)

$190.99

$

Usually ships in 2-12 days

0
