040221-0 - Briggs & Stratton 7kW Home Standby Generator Control Panel (199001) Parts Diagram

7kW Home Standby Generator

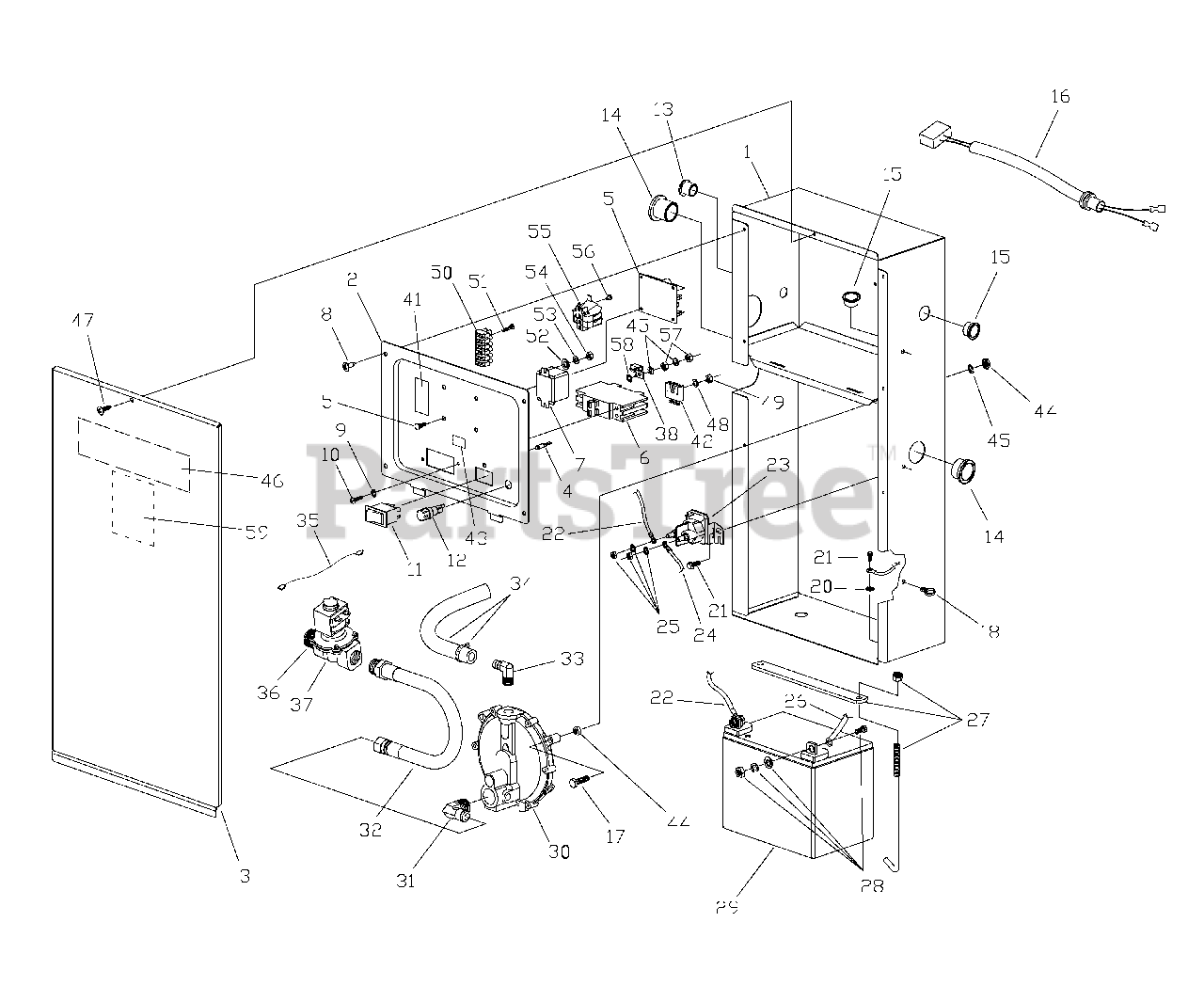

Control Panel (199001) Parts Diagram

  • Title

1

Briggs & Stratton 195229GS

Assy, Control Box

$

$

Not available

2

Briggs & Stratton 199470GS

Assy, Panel, Control

$527.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 198990GS

Panel, Back Cover

$107.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton B5133GS

Lamp, Led

$16.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 195555GS

Kit, Battery Charge Circuit w/Clips

$78.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186413GS

Clip, Standoff, Fastex

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 190818EGS

Breaker, Circuit, 30Amp

$159.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195212GS

Relay, Plug In

$

$

Not available

8

Screw, #10 x 5.8"

Note: (Purchase locally)

$

$

Not available

9

Washer, Shakeproof #6

Note: (Purchase locally)

$

$

Not available

10

PPHMS, #6 - 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 195218GS

Switch

$73.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195006GS

Kit, Fuse Holder w/ Fuse

$19.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192455GS

Bushing, Snap 5/8"

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 186173GS

Bushing, Snap 1-3/8"

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 186582GS

Bushing, Snap 7/8"

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 195369GS

Wire Harness, Control

$35.99

$

Usually ships in 2-12 days

0

17

HHCS, M6 - 1.0 x 30

Note: (Purchase locally)

$

$

Not available

18

Briggs & Stratton 195009GS

Kit, Plastic Clips

$3.49

$

Usually ships in 2-12 days

0

20

Washer, Shakeproof, Ext M6 - 1/4

Note: (Purchase locally)

$

$

Not available

21

Bolt, Swage, 1/4 - 20 x 1/2

Note: (Purchase locally)

$

$

Not available

22

Briggs & Stratton 193171GS

Wire-A, 6AWG, Red

$30.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 691656

Contactor, Starter

$31.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 194659GS

Wire-A, 6AWG, Red

$25.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 194251GS

Kit, Hardware Starter Contact

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 188573AGS

Wire-A, Series w/2 Ring Lug

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 199844GS

Kit, J-Bolt/Strap with Hardware

$19.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 193347GS

Kit, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188443GS

Battery

$229.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193291GS

Regulator, Fuel
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 186151GS

Fitting, Elbow, 3/4 NPT

$19.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 186148GS

Hose, Gas, Reg. to Valve

$76.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 186150GS

Fitting, Elbow, 3/8 NPT

$19.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195005GS

Kit, Hose, Reg To Engine with Clamps

$36.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 193537CGS

Wire, 18 AWG, Blue

$7.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 192449GS

Fitting, Nipple, 3/4 x 2

$7.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B4773GS

Solenoid, Gas Fuel
(Superseded to 194683GS)

$386.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 186345GS

Terminal, Ground

$13.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 186645GS

Decal, Caution, Shock
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 65795GS

Rectifier, Battery Charge

$

$

Not available

43

Briggs & Stratton B4986AGS

Decal, Ground
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

44

Nut, M6 - 1.0

Note: (Purchase locally)

$

$

Not available

45

Lockwasher, 1/4

Note: (Purchase locally)

$

$

Not available

46

Briggs & Stratton 195356GS

Decal, Operating Instructions

$10.99

$

Usually ships in 2-12 days

0

47

Screw, 10 x 32 x 1 Phillips Truss Head

Note: (Purchase locally)

$

$

Not available

48

Lockwasher, M5

Note: (Purchase locally)

$

$

Not available

49

Nut, M5 - 0.8

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 194096GS

Strip, Terminal 6 Pole

$5.49

$

Usually ships in 2-12 days

0

51

PPHS, #6-32 x 5/8

Note: (Purchase locally)

$

$

Not available

52

Washer, M3

Note: (Purchase locally)

$

$

Not available

53

Lockwasher, M3

Note: (Purchase locally)

$

$

Not available

54

Nut, M3 - 0.5

Note: (Purchase locally)

$

$

Not available

55

Briggs & Stratton 195559GS

Assy, Terminal Block

$12.99

$

Usually ships in 2-12 days

0

56

PPHS, #8 - 32 x 1/4", Trilobular

Note: (Purchase locally)

$

$

Not available

57

Nut, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

58

Washer, Shakeproof Int. 1/4 - M6

Note: (Purchase locally)

$

$

Not available

59

Briggs & Stratton 205397GS

Decal, Fuel Requirements

$16.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 195371GS

Resistor

Note: Items Not Illustrated

$41.99

$

Usually ships in 2-12 days

0
