040213-0 - Briggs & Stratton 15kW Home Standby Generator Enclosure (196199) Parts Diagram

15kW Home Standby Generator

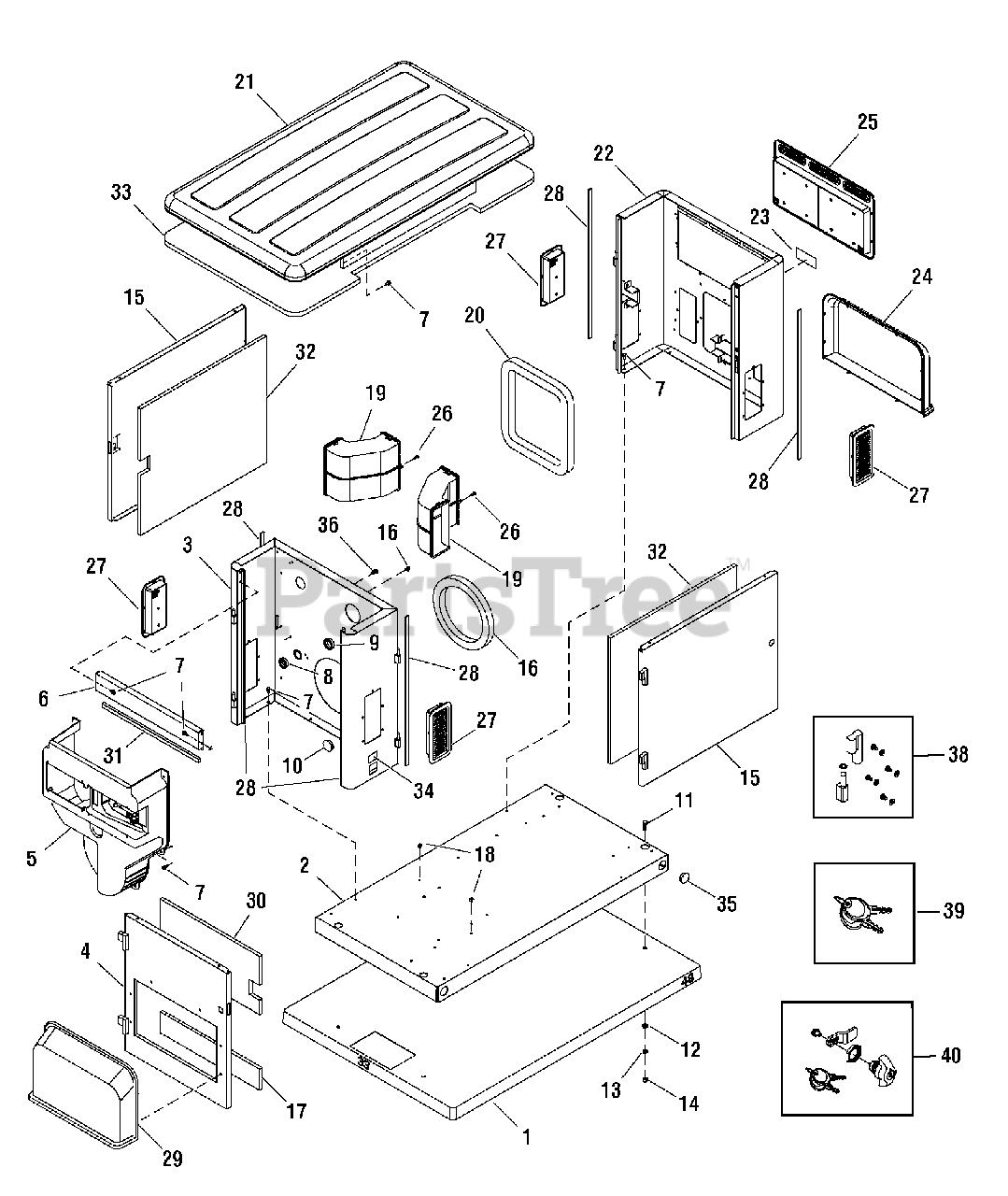

Enclosure (196199) Parts Diagram

  • Title

1

Briggs & Stratton 197275GS

PAD, Mounting

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton T203030GS

BASE, Mounting

$297.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 198915GS

BULKHEAD ASSEMBLY, Engine

$387.99

$

Usually ships in 2-12 days

0

--

-----

BULKHEAD, Engine End

$

$

Not available

--

-----

DECAL, Fuel Inlet

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam Engine Air

$

$

Not available

--

-----

BUSHING, 1-1/2

$

$

Not available

--

-----

BUSHING, 1-3/8

$

$

Not available

--

-----

PLUG, Dome 1-1/2

$

$

Not available

--

-----

PIN, Hinges With Hardware

$

$

Not available

4

Briggs & Stratton 198891GS

DOOR ASSEMBLY, Engine

$256.99

$

Usually ships in 2-12 days

0

--

-----

DOOR, Engine End

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

5

Briggs & Stratton 198910GS

DUCT ASSEMBLY, Engine Air

$256.99

$

Usually ships in 2-12 days

0

--

-----

DECAL

$

$

Not available

--

-----

LUG

$

$

Not available

--

-----

BRACKET

$

$

Not available

6

Briggs & Stratton 198917GS

SUPPORT RAIL ASSEMBLY

$60.99

$

Usually ships in 2-12 days

0

--

-----

SUPPORT, Rail

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

DECAL

$

$

Not available

7

Briggs & Stratton B4300GS

SCREW, Hex Head, Trilobular, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 186173GS

BUSHING, Snap, 1-3/8"

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap, 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198461GS

PLUG, Dome, 1-1/2"

$3.49

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex Head, 3/8 - 16 x 1

$

$

Not available

12

-----

* WASHER, Flat, 3/8 - M10

$

$

Not available

13

-----

* WASHER, Lock 3/8

$

$

Not available

14

-----

* NUT, 3/8-16

$

$

Not available

15

Briggs & Stratton 198892GS

DOOR ASSEMBLY

$217.99

$

Usually ships in 2-12 days

0

--

-----

DOOR

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

HINGES

$

$

Not available

--

-----

DECAL

$

$

Not available

16

Briggs & Stratton 199629GS

SEAL, Foam

$51.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 203303GS

INSULATION, Engine Door, Bottom

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie Wrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 195935GS

DUCT

$75.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194820GS

SEAL, Foam, Alt Inlet

$42.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 198893GS

ROOF ASSEMLBY

$547.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT

$

$

Not available

--

-----

INSULATION

$

$

Not available

22

Briggs & Stratton 198916GS

BULKHEAD ASSEMBLY, Alternator

$558.99

$

Usually ships in 2-12 days

0

--

-----

DECAL, Caution Hot Muffler

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

PIN

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

23

Briggs & Stratton 200409GS

DECAL, Caution Hot Muffler

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194679GS

COVER, Air Intake Alternator

$

$

Not available

25

Briggs & Stratton 198926GS

VENT ASSEMBLY, Exhaust

$132.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton B1797GS

Clip

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 198927GS

VENT ASSEMBLY, Alternator

$20.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL, Foam

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194694GS

COVER, Air Intake Engine

$

$

Not available

30

Briggs & Stratton 203302GS

INSULATION, Engine Door, Top

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197312GS

SEAL, Foam

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION, Front/Rear Door

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION, Roof

$117.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 186643GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 198460GS

PLUG, Dome

$3.49

$

In Stock, Qty 13

0

36

Briggs & Stratton 192940GS

RETAINER, Hose

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 198890GS

HINGE

$26.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 194828GS

KEY, Latch

$16.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 204700GS

LATCH

$24.99

$

Usually ships in 2-12 days

0
