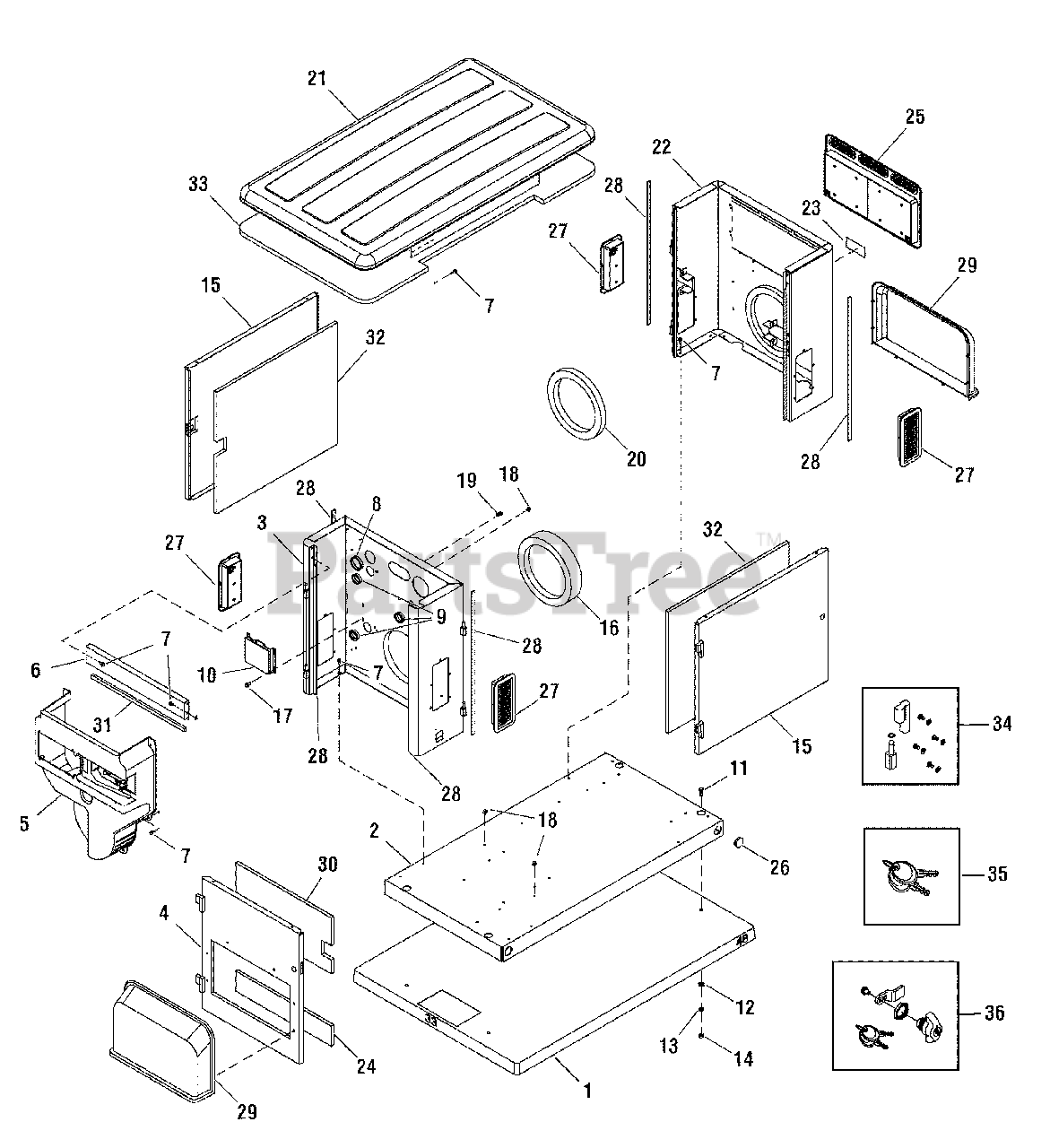

040211-0 - Briggs & Stratton 20kW Home Standby Generator Enclosure (202818) Parts Diagram

20kW Home Standby Generator

Enclosure (202818) Parts Diagram

  • Title

1

Briggs & Stratton 197275GS

PAD, Mounting w/Holes

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton T203030GS

BASE, Mounting

$297.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202987GS

ASSY, Bulkhead, Eng End

$589.99

$

Usually ships in 2-12 days

0

--

-----

BULKHEAD, Eng End

$

$

Not available

--

-----

DECAL, Fuel Inlet

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam Engine Air

$

$

Not available

--

-----

BUSHING, 1-1/2

$

$

Not available

--

-----

BUSHING, 1-3/8

$

$

Not available

--

-----

PLUG, Dome 1-1/2

$

$

Not available

--

-----

PIN, Hinges with Hardware

$

$

Not available

4

Briggs & Stratton 198891GS

ASSY, Door, Eng. End

$256.99

$

Usually ships in 2-12 days

0

--

-----

INSULATION

$

$

Not available

--

-----

BARREL, Hinges with Hardware

$

$

Not available

5

Briggs & Stratton 198910GS

ASSY, Duct, Engine Air

$256.99

$

Usually ships in 2-12 days

0

--

-----

DECALS

$

$

Not available

--

-----

LUG, Ground Connect w/Hardware

$

$

Not available

--

-----

BRACKET, Mounting Breaker

$

$

Not available

6

Briggs & Stratton 198917GS

ASSY, Support, Rail

$60.99

$

Usually ships in 2-12 days

0

--

-----

SUPPORT, Rail Eng. End

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

DECAL, Rainproof

$

$

Not available

7

Briggs & Stratton B4300GS

SCREW, Hex Head, Trilobular, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

8

Briggs & Stratton 203015GS

BUSHING, Snap, 2"

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap, 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205479GS

REGULATOR, Voltage
(Superseded to 707157)

$423.99

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

12

-----

* WASHER, Flat, 3/8 - M10

$

$

Not available

13

-----

* WASHER, Lock 3/8

$

$

Not available

14

-----

* NUT, 3/8-16

$

$

Not available

15

Briggs & Stratton 198892GS

DOOR ASSEMBLY

$217.99

$

Usually ships in 2-12 days

0

--

-----

DOOR

$

$

Not available

--

-----

INSULATION

$

$

Not available

--

-----

BARREL, Hinges with Hardware

$

$

Not available

--

-----

DECALS

$

$

Not available

16

Briggs & Stratton 202956GS

SEAL, Foam, Engine Air
(Superseded to 770041)

$182.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192778GS

HHS, Trilobular, #8-32 x 1/2

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie Wrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192940GS

RETAINER, Hose

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 202957GS

SEAL, Foam, Alt Inlet
(Superseded to 770424)

$74.99

$

In Stock, Qty 7

0

21

Briggs & Stratton 198893GS

ASSY, Roof/Siderails

$547.99

$

Usually ships in 2-12 days

0

--

-----

WELDMENT, Roof/Siderails

$

$

Not available

--

-----

INSULATION

$

$

Not available

22

Briggs & Stratton 202985GS

ASSY, Bulkhead, Alt End

$365.99

$

Usually ships in 2-12 days

0

--

-----

DECAL, Caution Hot Muffler

$

$

Not available

--

-----

SEAL, Foam

$

$

Not available

--

-----

SEAL, Foam Alt Inlet

$

$

Not available

--

-----

PIN, Hinges with Hardware

$

$

Not available

--

-----

BRACKET, Muffler

$

$

Not available

23

Briggs & Stratton 200409GS

DECAL, Caution Hot Muffler

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 203303GS

INSULATION, Engine Door, Bottom

$22.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 198926GS

ASSY, Vent, Exhaust

$132.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 198460GS

PLUG, Dome

$3.49

$

In Stock, Qty 13

0

27

Briggs & Stratton 198927GS

ASSY., Vent, Alt.

$20.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL, Foam

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194694GS

COVER, Air Intake Engine

$

$

Not available

30

Briggs & Stratton 203302GS

INSULATION, Engine Door, Top

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197312GS

SEAL, Foam

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION, Front/Rear Door

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION, Roof

$117.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 198890GS

KIT, Door, Hinge

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194828GS

SET, Latch Key

$16.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 198889GS

KIT, Door Latch

$48.99

$

Usually ships in 2-12 days

0
