040210-1 - Briggs & Stratton 15kW Home Standby Generator Control Panel (202204) Parts Diagram

15kW Home Standby Generator

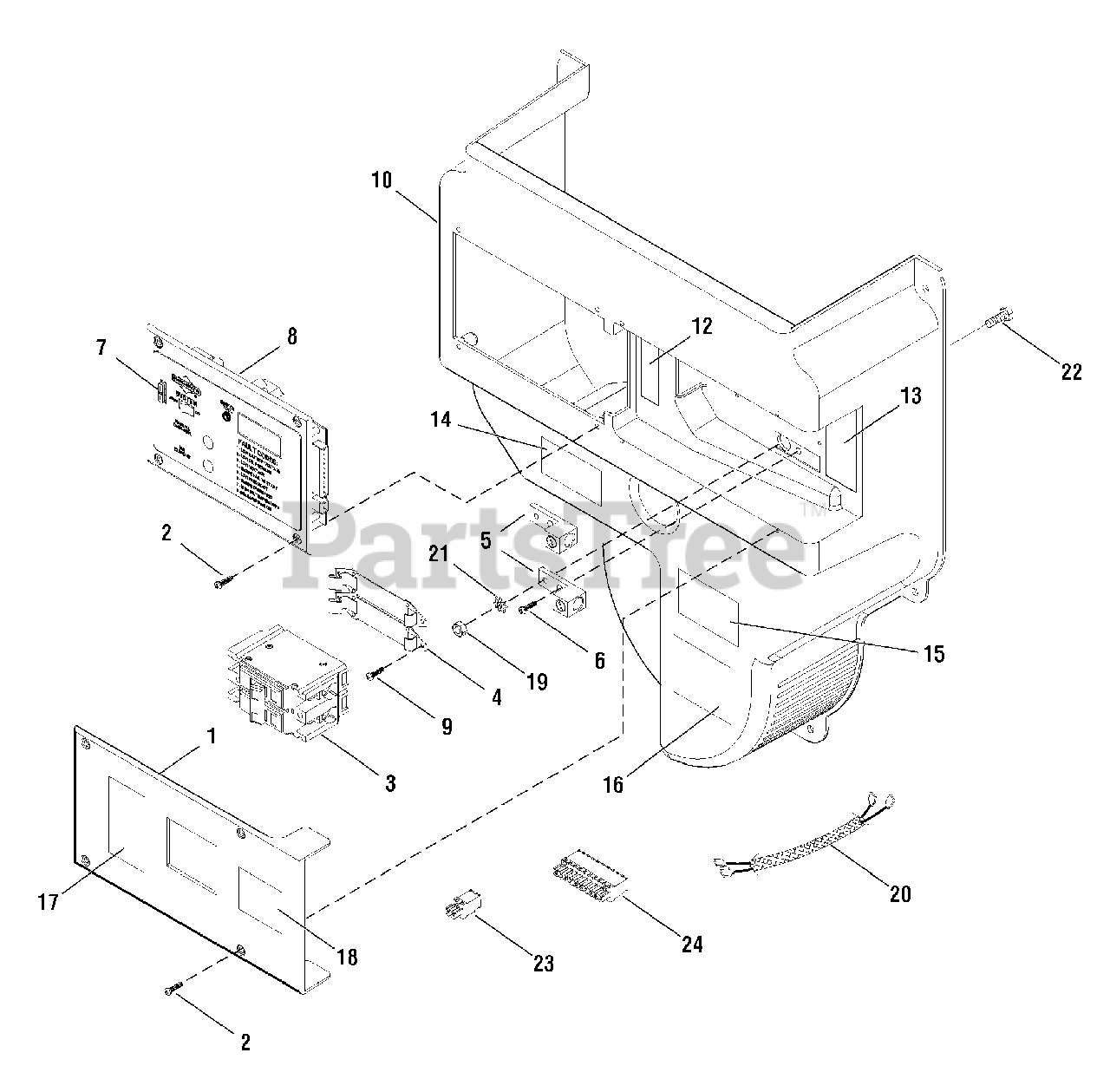

Control Panel (202204) Parts Diagram

  • Title

1

Briggs & Stratton 198911GS

COVER

$

$

Not available

2

-----

*CAPSCREW, Plastite, 10 x 5/8

$

$

Not available

3

Briggs & Stratton 198313GS

BREAKER, Circuit 70A, 2P
(Superseded to 311317GS)

$141.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 192770GS

BRACKET, Mounting Breaker

$54.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 191991GS

CAPSCREW, Plastite, 1/4-10 x 1

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 198573GS

FUSE, Auto Type 15 Amp

$2.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 311353GS

CONTROL PANEL ASSEMBLY

$473.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 197492GS

SCREW, PT, M4 - 1.79 x 16.0

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198910GS

DUCT

$256.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198549GS

DECAL, Terminal Block

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 198550GS

DECAL, Ground, Neutral

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205393GS

DECAL, Warning, Outdoor Install

$6.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 193297GS

DECAL, Caution, Standby

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205392GS

DECAL, Warning, Auto Start
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205394GS

DECAL, Caution, Electric Shock

$18.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205395GS

DECAL, Warning Shock

$9.99

$

Usually ships in 2-12 days

0

19

-----

*NUT, 1/4 - 20

$

$

Not available

20

Briggs & Stratton 198517GS

WIRING HARNESS

$15.99

$

Usually ships in 2-12 days

0

21

-----

*WASHER, Shakeproof, Ext M6 1/4

$

$

Not available

22

-----

*CAPSCREW, Hex Head, 1/4 - 20 x 3/4

$

$

Not available

23

Briggs & Stratton 198515GS

CONNECTOR, Terminal, 2 Pin

$8.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 198516GS

CONNECTOR, Terminal, 10 Pin

$

$

Not available

--

Briggs & Stratton 201085GS

WIRING HARNESS

$97.99

$

Usually ships in 2-12 days

0
