04-35BR01 - Toro 21" Walk-Behind Mower (1987) 21" WALK BEHIND VAC-MOWER VEHICLE IDENTIFICATION NUMBER 04-35BR01 & 04-40BR01 Parts Diagram

21" Walk-Behind Mower

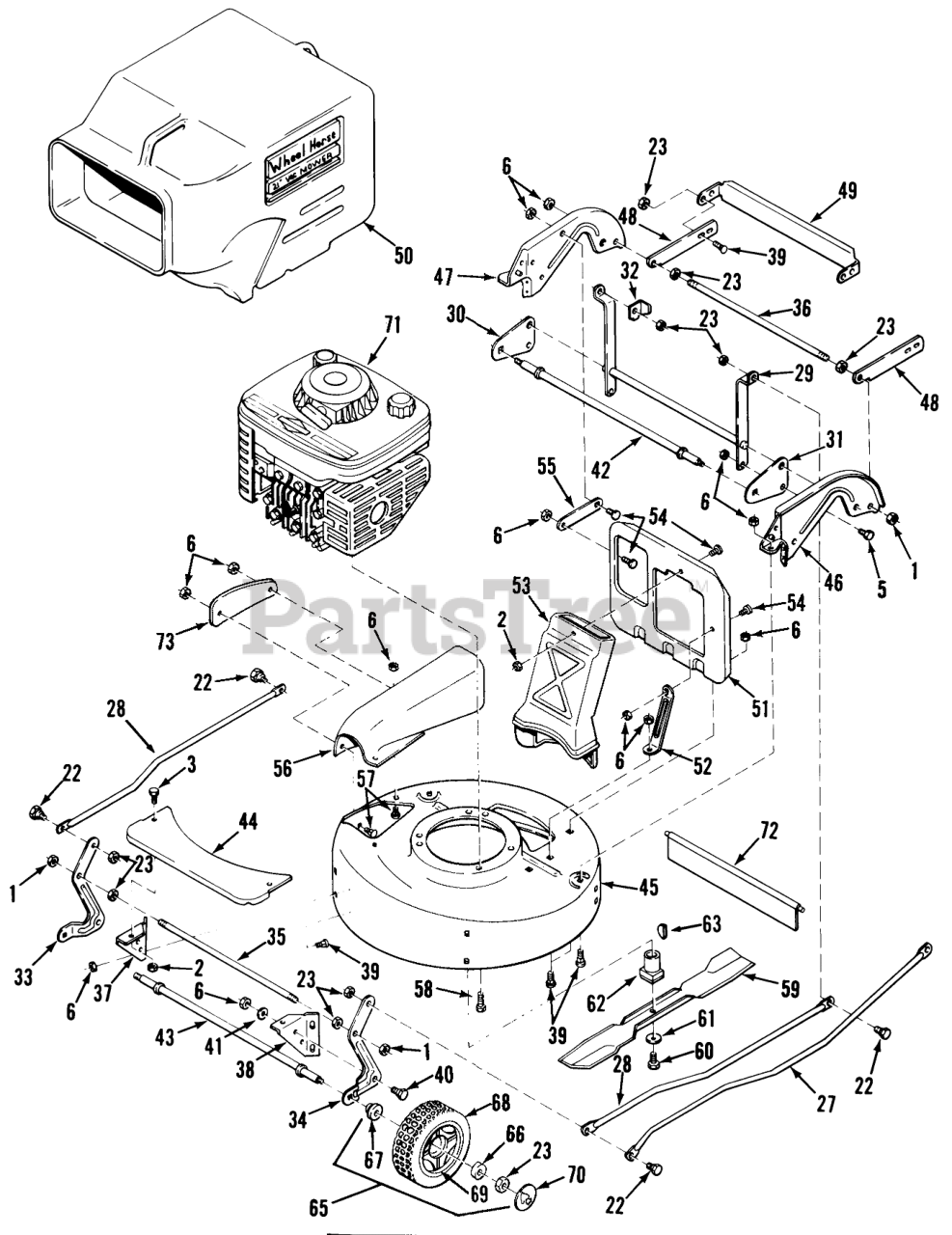

21" WALK BEHIND VAC-MOWER VEHICLE IDENTIFICATION NUMBER 04-35BR01 & 04-40BR01 Parts Diagram

  • Title

1

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

2

Toro 112048

Hex Nut 1/4-28

$

$

Not available

3

Toro 112051

Hex Bolt 1/4-28 x 5/8
(Superseded to 3258-61)

$1.99

$

Usually ships in 3-6 days

0

5

Toro 960175

Screw

$

$

Not available

6

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 112245

SHOULDER BOLT

$

$

Not available

23

Toro 915237

Hex Nut 7/16-14
(Superseded to 3218-4)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 112248

Height Adjust Main Control Rod

$

$

Not available

28

Toro 112249

Height Adjust Short Control Rod

$

$

Not available

29

Toro 112250

Height Adjust Rear BRKT

$

$

Not available

30

Toro 112251

Plate-Rear Axle RH

$

$

Not available

31

Toro 112252

REAR AXLE PLATE (LH)

$

$

Not available

32

Toro 112253

HGT ADJ INDICATOR

$

$

Not available

33

Toro 112254

HGT ADJ BRACKET

$

$

Not available

34

Toro 112255

BRKT-LH Front Height Adjust

$

$

Not available

35

Toro 112256

FRONT & REAR TIE ROD

$

$

Not available

36

Toro 112445

Rear Tie Rod 7/16-14 x 16 9/16

$

$

Not available

37

Toro 112257

RIGHT FRONT MTG BRKT

$

$

Not available

38

Toro 112258

BRKT-MTG LH Front

$

$

Not available

39

Toro 900035

CARRIAGE BOLT -4

$

$

Not available

40

Toro 112259

Shoulder Bolt 5/16-18 x 5/8

$

$

Not available

41

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

42

Toro 112260

Rear Axle 7/16-14 X 21

$

$

Not available

43

Toro 112261

Front Axle 7/16-14 x 21 1/4

$

$

Not available

44

Toro 112262

Front Support Panel

$

$

Not available

45

Toro 112263

Mower Deck

$

$

Not available

46

Toro 112264

Left Wheel Skirt

$

$

Not available

47

Toro 112265

RIGHT WHEEL SKIRT

$

$

Not available

48

Toro 112266

Catcher Support Arm

$

$

Not available

49

Toro 112267

Catcher Support Rear Bracket

$

$

Not available

50

Toro 112268

Grass Catcher

$

$

Not available

51

Toro 112269

Grass Catcher Plate

$

$

Not available

52

Toro 112270

PLATE

$

$

Not available

53

Toro 112271

Air Return Duct

$

$

Not available

54

Toro 112272

Special Hd Bolt 1/4-28 x 7/16

$

$

Not available

55

Toro 112273

CATCHER PLATE

$

$

Not available

56

Toro 112274

Chute

$

$

Not available

57

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

58

Toro 112275

Self Tapping Hex Bolt 3/8 X 1

$

$

Not available

59

Toro 112276

MOWER BLADE

$125.99

$

Usually ships in 3-6 days

0

60

Toro 112277

Blade Bolt 3/8-24 X 2

$

$

Not available

61

Toro 112278

Blade Washer 3/8 Special

$

$

Not available

62

Toro 112279

Blade Drive Hub

$

$

Not available

63

Toro 937010

WOODRUFF KEY

$0.99

$

Usually ships in 3-6 days

0

65

Toro 112280

ASSY WHEEL

$

$

Not available

66

Toro 112281

Wheel Bearing-Outside

$

$

Not available

67

Toro 112282

Wheel Bearing-Inside

$

$

Not available

68

Toro 112283

Tire

$

$

Not available

69

Toro 112284

Wheel Rim

$

$

Not available

70

Toro 112285

HUB CAP

$

$

Not available

71

Toro 112287

Engine-Briggs & Stratton 3.5 HP (model 90702 type 900613B)

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Type Numbers Shown Above.

$

$

Currently unavailable

Toro 112288

Engine-Briggs & Stratton 4.0 HP I/C (model 114702 type 901196A)

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Type Numbers Shown Above.

$

$

Currently unavailable

72

Toro 112504

Rear Protective Guard

$

$

Not available

73

Toro 112521

Discharge Chute Plate

$

$

Currently unavailable
