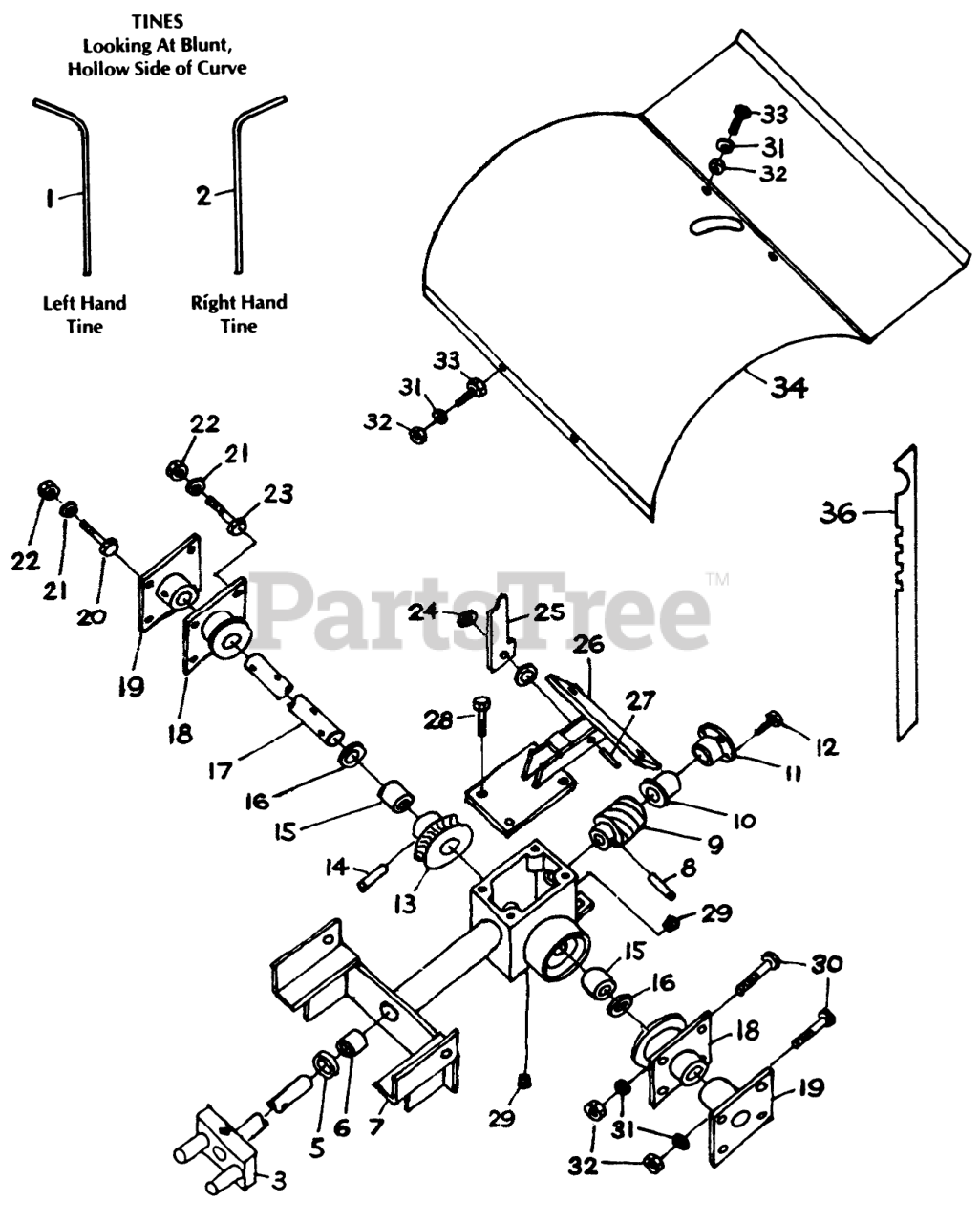

04-16TB01 - Toro 15" Tiller (1987) PARTS LIST FOR WALK BEHIND TILLER Parts Diagram

15" Tiller

PARTS LIST FOR WALK BEHIND TILLER Parts Diagram

  • Title

1

Toro 611

Tine-Left Hand
(Superseded to 611N)

$

$

Not available

2

Toro 612

Tine-Right Hand

$

$

Not available

3

Toro 615

Coupling Yoke

$

$

Not available

5

Toro 833

SEAL

$

$

Not available

6

Toro 831

BEARING

$

$

Not available

7

Toro 651

Frame

$

$

Not available

8

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

9

Toro 617

WORM

$

$

Not available

10

Toro 831-F

Flanged Bearing

$

$

Currently unavailable

11

Toro 616

Governor Crank

$

$

Not available

12

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

13

Toro 618

Worm Gear

$

$

Not available

14

Toro 933231

Roll Pin 5/16 x 1 3/4

$

$

Not available

15

Toro 852

BEARING

$

$

Not available

16

Toro 854

Seal

$

$

Not available

17

Toro 665

SHAFT-TILLER

$

$

Not available

18

Toro 667

Inner Tine Hub

$

$

Not available

19

Toro 668

Spacer (Control Bracket)

$

$

Not available

20

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

21

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

22

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

23

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

24

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

25

Toro 627

Lock Lever

$

$

Not available

26

Toro 656

Hood Bracket

$

$

Not available

27

Toro 933213

SPIROL PIN

$

$

Not available

28

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

29

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

30

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

31

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

32

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

33

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

34

Toro 630

Tiller Hood 15"

$

$

Not available

36

Toro 629

STICK-DRAG

$

$

Not available

Toro 576

Handlebars

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 577

Carrier Assembly

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 593

GUIDE-ATTACHMENT

Note: Denotes items which are not pictured but are available as service parts.

$11.99

$

Usually ships in 3-6 days

0

Toro 594

ROD-BELT CLUTCH

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 595

Wheel Clutch Rod

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 596

Belt Retainer
(Superseded to 596H)

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 600

Belt Guard
(Superseded to 600F)

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 662

Lock Plate

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 663

Screw (Control Panel)

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 665

SHAFT-TILLER

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 666

Hub Spacer

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 799

Carrier Clamp

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 812

Handle Grips

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 826

Lever Grips

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Denotes items which are not pictured but are available as service parts.

$1.99

$

In Stock, Qty 20+

0

Toro 829

Welch Plug

Note: Denotes items which are not pictured but are available as service parts.

$

$

Not available
