0396 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Lawn Mower Parts List Drive Group Model 8352jp Parts Diagram

Walk-Behind Mower

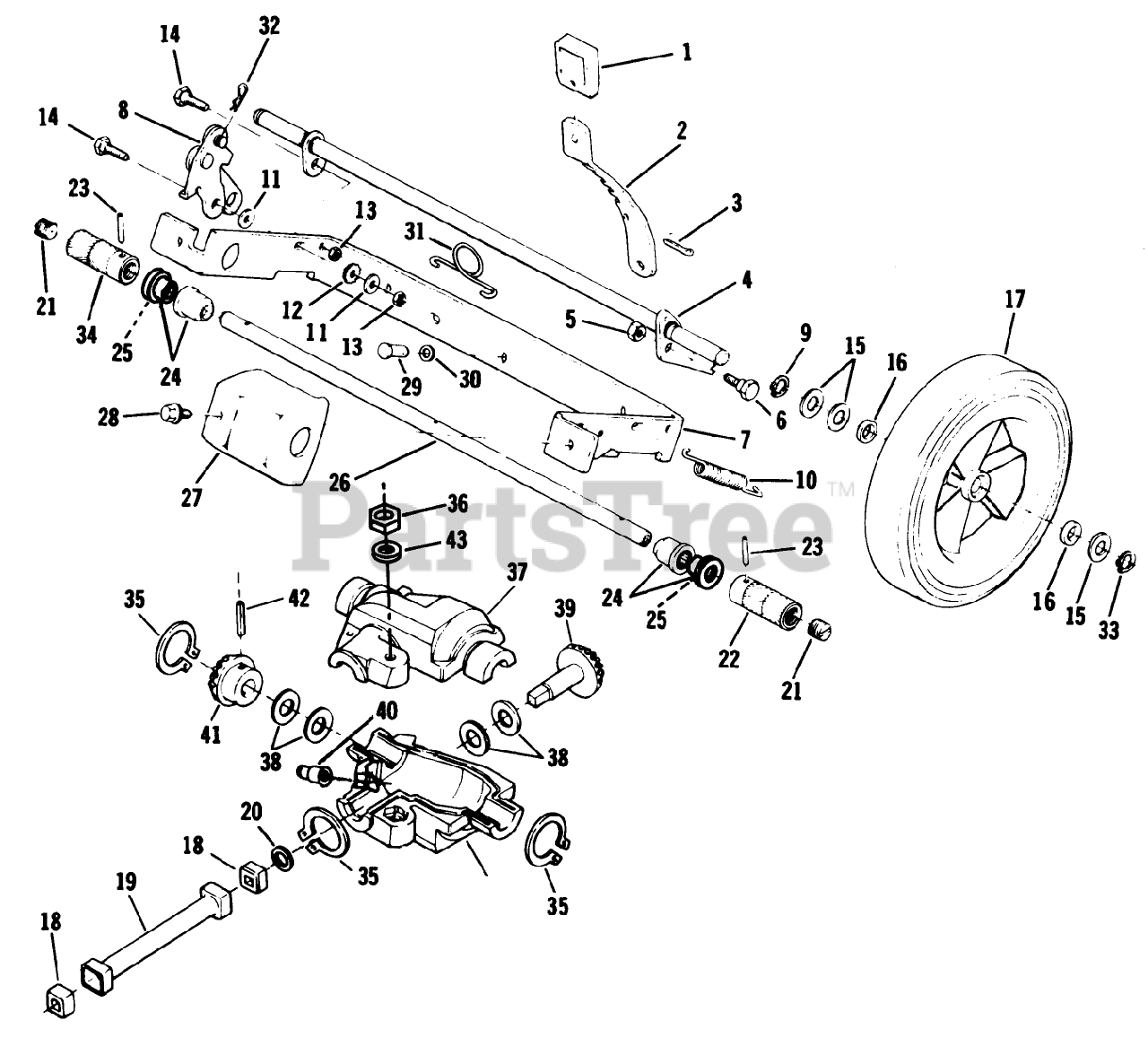

Lawn Mower Parts List Drive Group Model 8352jp Parts Diagram

  • Title

1

Lawn-Boy 607562

KNOB

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

LEVER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 603036

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 682701

Axle-Bracket Assembly

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

4

Lawn-Boy 682180

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$384.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 610437

SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$31.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 603093

WASHER S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 682972

WHEEL & TIRE KIT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608563

BUSHING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 610644

O-RING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 602926

GREASE PLUG

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$12.99

$

In Stock, Qty 6

0

22

Lawn-Boy 611266

ROLLER (LEFT) VS

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$96.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611266

ROLLER (LEFT) VS

Note: Standard Replacement-Ground Speed-2.7 m.p.h.

$96.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 610475

ROLLER-LH

Note: Provides Slower Ground Speed-2.4 m.p.h.

$120.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 610475

ROLLER-LH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$120.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611612

DISCONTINUED

Note: Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

22

Lawn-Boy 611612

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 606303

DISCONTINUED

Note: Standard Replacement-Ground Speed-2.7 m.p.h.

$

$

Not available

23

Lawn-Boy 606303

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 610686

DISCONTINUED

Note: Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

23

Lawn-Boy 610686

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 681904

SLEEVE &BEARING AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 610052

P/M Bearing

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

26

Lawn-Boy 679952

DRIVE SHFT TAG AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 607767

GUARD

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 607783

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 606115

PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 606116

WASHER SPRING LAR

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 605802

SPRING N.A.S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 7

0

32

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

34

Lawn-Boy 611265

ROLLER (RIGHT) VS

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$96.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 611265

ROLLER (RIGHT) VS

Note: Standard Replacement-Ground Speed-2.7 m.p.h.

$96.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610476

ROLLER-RH

Note: Provides Slower Ground Speed-2.4 m.p.h.

$

$

Not available

34

Lawn-Boy 610476

ROLLER-RH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 611611

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 611611

DISCONTINUED

Note: Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

35

Lawn-Boy 908973

See Supercession: 32151-33
(Superseded to 32151-33)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 2 left!

0

36

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 682662

GEARCASE AY-SERV

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 608030

THRUST WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 610687

GEAR BEST

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$268.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 610153

ZERK FITTING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 610688

GEAR ADVANCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 311866

ROLL PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

43

Lawn-Boy 610566

WASHER F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
