0392 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Deck And Shroud Group Model: 0392 (8351jp) Parts Diagram

Walk-Behind Mower

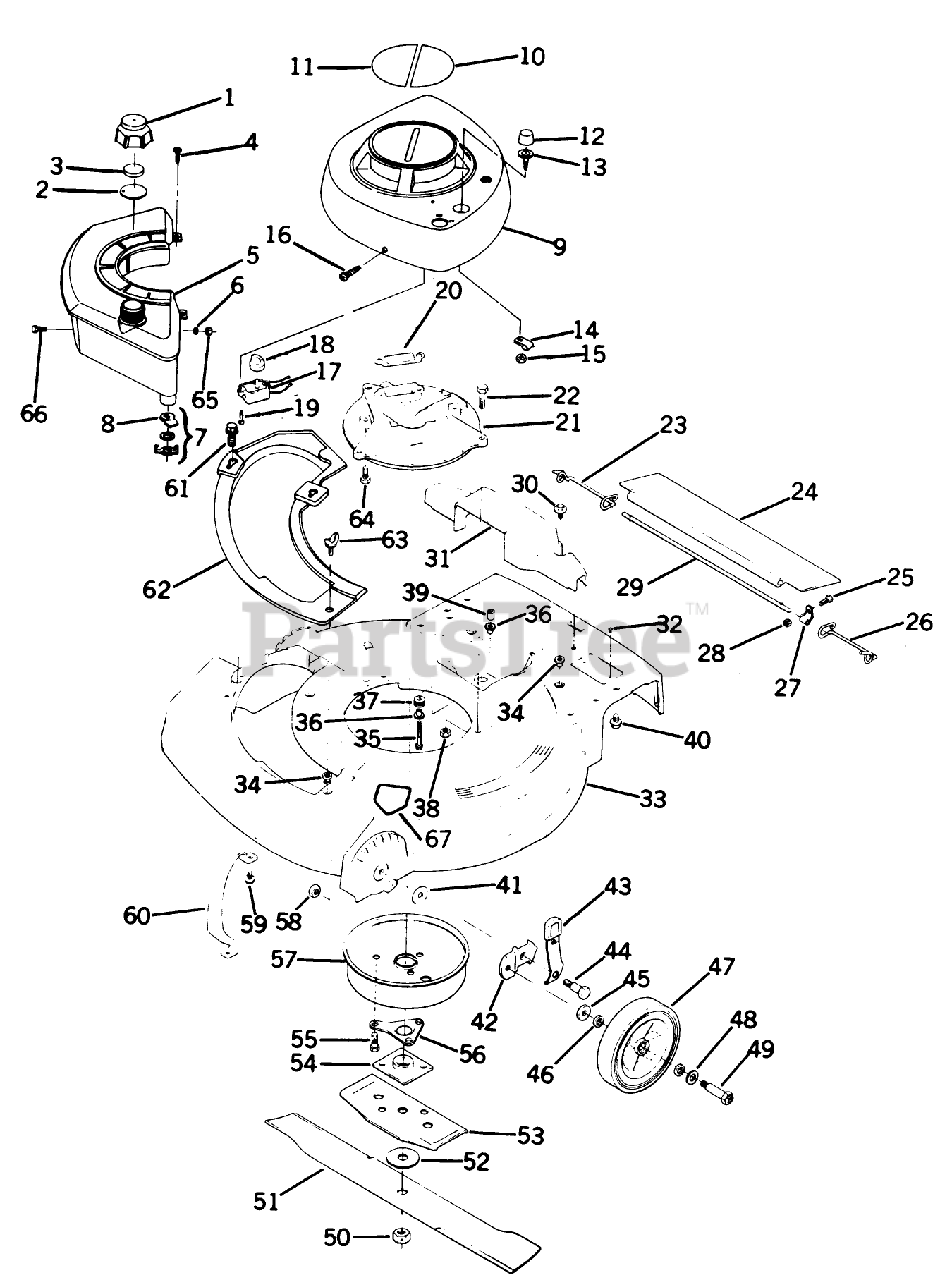

Deck And Shroud Group Model: 0392 (8351jp) Parts Diagram

  • Title

1

Lawn-Boy 679456

See Supercession: 682755
(Superseded to 682755)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 607213

GASKET S

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 607213

GASKET S

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$1.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$6.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 609808

SCREW F

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 682361

See Supercession: 681709
(Superseded to 681709)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609742

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609648

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609648

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

9

Lawn-Boy 681750

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 609866

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 609866

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

11

Lawn-Boy 610732

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

11

Lawn-Boy 610732

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 607310

See Supercession: 610482
(Superseded to 610482)

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

12

Lawn-Boy 607310

See Supercession: 610482
(Superseded to 610482)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 607311

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

13

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 510371

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 510371

DISCONTINUED

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

15

Lawn-Boy 608027

LOCKNUT S

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$2.49

$

In Stock, Qty 6

0

15

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

16

Lawn-Boy 609808

SCREW F

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 681790

DISCONTINUED
(Superseded to 104-4446)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 609978

SWITCH KNOB

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 609978

SWITCH KNOB

Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$15.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 609549

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 609119

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 608870

SHIELD

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 609801

See Supercession: 611239
(Superseded to 611239)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 602175

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 681758

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 306832

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 607605

SPACER ECK PRES

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 307417

GROMMET

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

39

Lawn-Boy 609588

SPACER

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

41

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 681229

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

46

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

48

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

50

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 11

0

51

Lawn-Boy 609988

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, Qty 18

0

52

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

53

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 3 left!

0

55

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

56

Lawn-Boy 609786

SUPPORT F

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

57

Lawn-Boy 681614

See Supercession: 682876
(Superseded to 682876)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

59

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

60

Lawn-Boy 608175

BAR-TOE

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

62

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$36.99

$

In Stock, only 3 left!

0

63

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

64

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

65

Lawn-Boy 307999

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

67

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, fiberglass replacements parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0
