0392 B - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Drive Group Model: 0392b (8351jp) Parts Diagram

Walk-Behind Mower

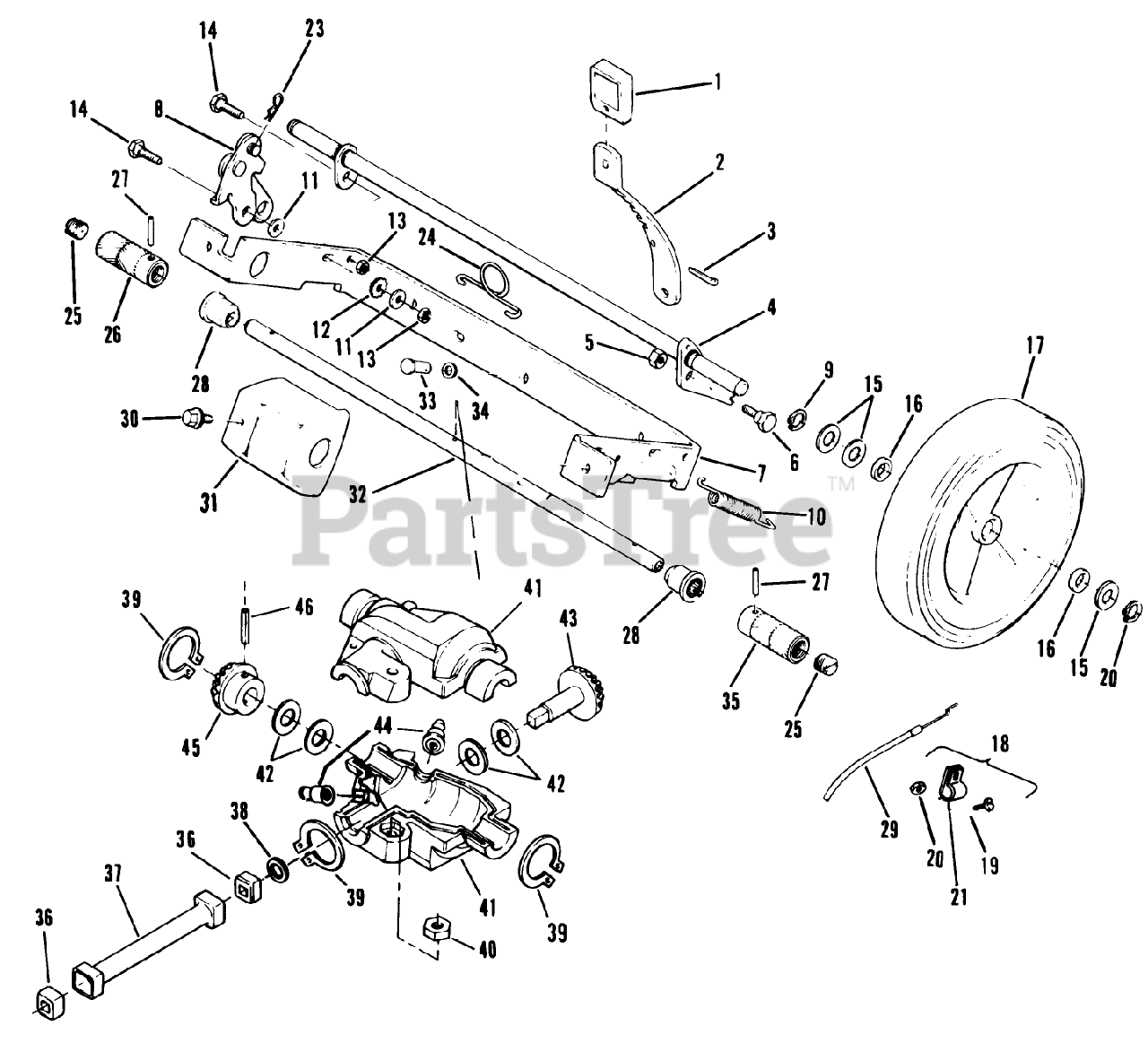

Drive Group Model: 0392b (8351jp) Parts Diagram

  • Title

1

Lawn-Boy 607562

KNOB

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

LEVER

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

3

Lawn-Boy 603036

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

Lawn-Boy 681290

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

4

Lawn-Boy 681534

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$384.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

9

Lawn-Boy 607676

RET RING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 603003

SPRING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

11

Lawn-Boy 603093

WASHER S

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

15

Lawn-Boy 605256

SPACER

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

WASHER

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 678638

See Supercession: 682972
(Superseded to 682972)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$29.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 682603

INTERLOCK KIT

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

19

Lawn-Boy 611083

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

19

Lawn-Boy 611083

DISCONTINUED

Note: Standard replacement-ground speed 2.7 mph

$

$

Not available

20

Lawn-Boy 311505

DISCONTINUED

Note: Standard replacement-ground speed 2.7 mph

$

$

Not available

20

Lawn-Boy 311505

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

21

Lawn-Boy 611080

See Supercession: 2412-99
(Superseded to 2412-99)

Note: Standard replacement-ground speed 2.7 mph

$5.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611080

See Supercession: 2412-99
(Superseded to 2412-99)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$5.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 607676

RET RING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$5.99

$

In Stock, Qty 6

0

23

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 605802

SPRING N.A.S

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$7.99

$

In Stock, Qty 7

0

25

Lawn-Boy 602926

GREASE PLUG

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$12.99

$

In Stock, Qty 6

0

26

Lawn-Boy 610845

DRIVE ROLLER

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

26

Lawn-Boy 610845

DRIVE ROLLER

Note: Standard replacement-ground speed 2.7 mph

$

$

Not available

26

Lawn-Boy 610845

DRIVE ROLLER

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

26

Lawn-Boy 607658

DISCONTINUED

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

26

Lawn-Boy 607658

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

26

Lawn-Boy 607658

DISCONTINUED

Note: Provides slower ground speed-2.4 mph

$

$

Not available

26

Lawn-Boy 610441

DISCONTINUED

Note: Provides faster ground speed-3.1 mph

$

$

Not available

26

Lawn-Boy 610441

DISCONTINUED

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

26

Lawn-Boy 610441

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

27

Lawn-Boy 606013

PIN

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$3.49

$

In Stock, Qty 5

0

27

Lawn-Boy 606013

PIN

Note: Standard replacement-ground speed 2.7 mph

$3.49

$

In Stock, Qty 5

0

27

Lawn-Boy 610686

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

27

Lawn-Boy 610686

DISCONTINUED

Note: Provides faster ground speed-3.1 mph

$

$

Not available

27

Lawn-Boy 610686

DISCONTINUED

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

28

Lawn-Boy 681904

SLEEVE &BEARING AY

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

28

Lawn-Boy 681904

SLEEVE &BEARING AY

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

29

Lawn-Boy 682599

DISCONTINUED

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

29

Lawn-Boy 682599

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

30

Lawn-Boy 607783

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

31

Lawn-Boy 607767

GUARD

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

Lawn-Boy 679952

DRIVE SHFT TAG AY

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

32

Lawn-Boy 606115

PIN

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$7.49

$

Usually ships in 3-6 days

0

33

Lever

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

34

Lawn-Boy 606116

WASHER SPRING LAR

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

35

Lawn-Boy 610844

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

35

Lawn-Boy 610844

DISCONTINUED

Note: Provides slower ground speed-2.4 mph

$

$

Not available

35

Lawn-Boy 610844

DISCONTINUED

Note: Parts not previously stocked by JCPenney Parts Distribution

$

$

Not available

35

Lawn-Boy 607657

DISCONTINUED

Note: Provides slower ground speed-2.4 mph

$

$

Not available

35

Lawn-Boy 607657

DISCONTINUED

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

35

Lawn-Boy 610440

ROLLER-LEFT

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$43.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 610440

ROLLER-LEFT

Note: Provides slower ground speed-2.4 mph

$43.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 610440

ROLLER-LEFT

Note: Parts not previously stocked by JCPenney Parts Distribution

$43.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 608563

BUSHING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$9.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

38

Lawn-Boy 610644

O-RING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$2.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 908973

See Supercession: 32151-33
(Superseded to 32151-33)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$3.49

$

In Stock, only 1 left!

0

40

Lawn-Boy 602315

LOCKNUT E

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$4.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 682415

See Supercession: 682662
(Superseded to 682662)

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

42

Lawn-Boy 608030

THRUST WASHER

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$2.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 610687

GEAR BEST

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$268.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 610153

ZERK FITTING

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$

$

Not available

45

Lawn-Boy 610688

GEAR ADVANCE

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$54.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 311866

ROLL PIN

Note: Note: This symbol indicates that parts so noted are supplied with the assembly immediately preceding this symbol.

$3.49

$

In Stock, only 1 left!

0
