0392 A - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1981) Side Grass-Catcher Assembly Model No. 811-2057 Parts Diagram

Walk-Behind Mower

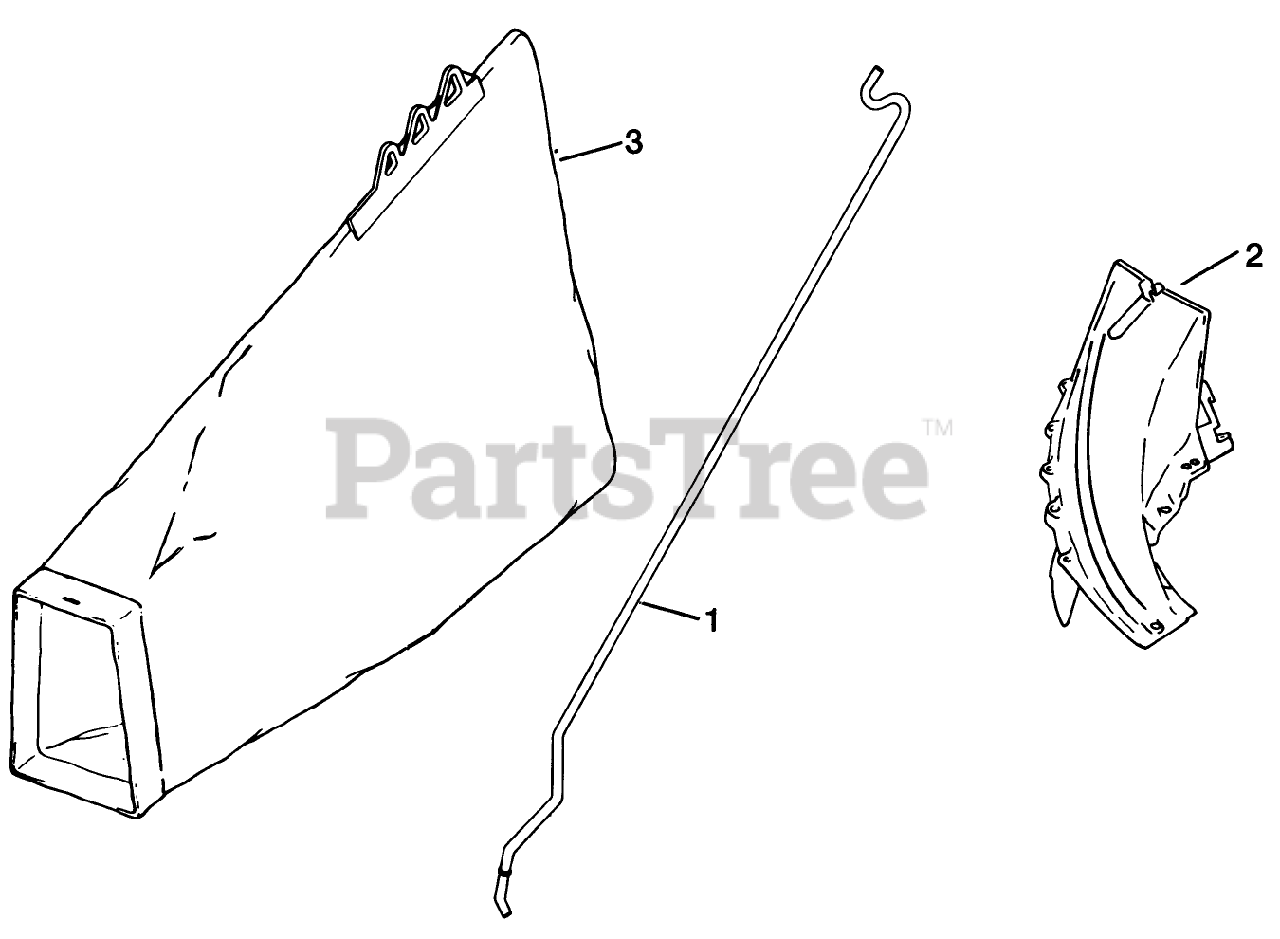

Side Grass-Catcher Assembly Model No. 811-2057 Parts Diagram

  • Title
1

Lawn-Boy 607561

ROD GRASSBAG

Note: Side Grass-catcher assembly (chute, side bag, rod) converts your Lawn-Boy/JC Penney mower for side bagging. You catch clippings in a side bag which rides well off the ground and pivots out of the way for maneuvering in close quarters.

$

$

Not available

2

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Side Grass-catcher assembly (chute, side bag, rod) converts your Lawn-Boy/JC Penney mower for side bagging. You catch clippings in a side bag which rides well off the ground and pivots out of the way for maneuvering in close quarters.

$

$

Not available

3

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: Side Grass-catcher assembly (chute, side bag, rod) converts your Lawn-Boy/JC Penney mower for side bagging. You catch clippings in a side bag which rides well off the ground and pivots out of the way for maneuvering in close quarters.

$

$

Not available
