03876800 - Ariens Zero-Turn Spindle Rebuild Kit Spindle Rebuild Parts Diagram

Zero-Turn Spindle Rebuild Kit

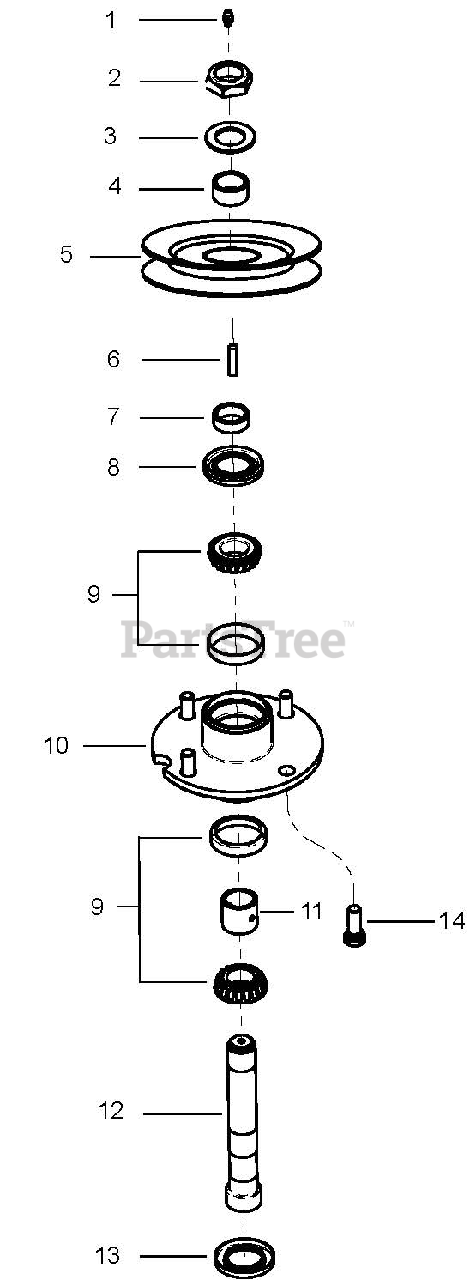

Spindle Rebuild Parts Diagram

  • Title

1

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

2

Ariens 00181818

NUT, 1-14 THIN PATTERN NYLOCK

$9.49

$

Usually ships in 4-12 days

0

3

Ariens 00960711

WASHER, 1.062X1.75X0.100 Y

$3.49

$

In Stock, only 1 left!

0

4

Ariens 00181822

SPACER, ?1.01 X ?1.25 X .635 Y

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 07300110

PULLEY, BOTTOM
(Superseded to 07328467)

Note: ALL

$113.99

$

In Stock, only 1 left!

0

5

Ariens 00181907

PULLEY, V-BELT 5.73X1.00 W/KEY

$

$

Currently unavailable

5

Ariens 00181823

PULLEY, V-BELT 6.57X1.00 W/KEY

$84.99

$

In Stock, only 1 left!

0

5

Ariens 00181911

PULLEY, V-BELT 7.21X1.00 W/KEY

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 00966045

KEY, .250 X .250 X 1.00 SQ

$2.99

$

In Stock, only 2 left!

0

7

Ariens 00145557

BSHG, 1.00 X 1.25 X .438

$9.99

$

In Stock, only 1 left!

0

8

Ariens AA145551

SEAL, UPPER SPINDLE

$8.99

$

In Stock, only 2 left!

0

9

Ariens 00145555

BRG ASSY, 1IN DIA SPINDLE

Note: INCLUDES 2 EACH: JD8253 CUP & JD8933 CONE

$26.99

$

In Stock, Qty 20+

0

10

Ariens 03820551

CASTING-MOWER SPINDLE 3.31 LG

$

$

Not available

11

Ariens 00160116

SPACER, BEARING

$21.99

$

Usually ships in 4-12 days

0

12

Ariens 00180857

SHAFT, BLADE SPINDLE 1" LONG

$109.99

$

Usually ships in 4-12 days

0

12

Ariens 00180334

SHAFT, BLADE SPINDLE 1" SHORT

$142.99

$

In Stock, only 1 left!

0

13

Ariens 00145552

SEAL, BRG 1.00 ROLLER

$10.99

$

In Stock, only 3 left!

0

14

Ariens 00145561

BOLT, 7/16-20X1.22 SPC 5 Y

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 00181910

ASSY, SPINDLE 1" LONG SHFT S/O

Note: DOES NOT INCLUDE ITEMS 4, 5, 6

$426.99

$

In Stock, only 2 left!

0

16

Ariens 00181917

ASSY, SPINDLE 1"SHORT SHFT S/O

Note: DOES NOT INCLUDE ITEMS 4, 5, 6

$426.99

$

Usually ships in 4-12 days

0

17

Ariens 03876800

SPINDLE BEARING KIT

Note: INCLUDES ITEMS 8, 9, 11, 13

$142.99

$

Usually ships in 4-12 days

0
