038 (196-038-100) - Cub Cadet Grass Catcher (1986) att Grass Catcher Parts Diagram

Grass Catcher

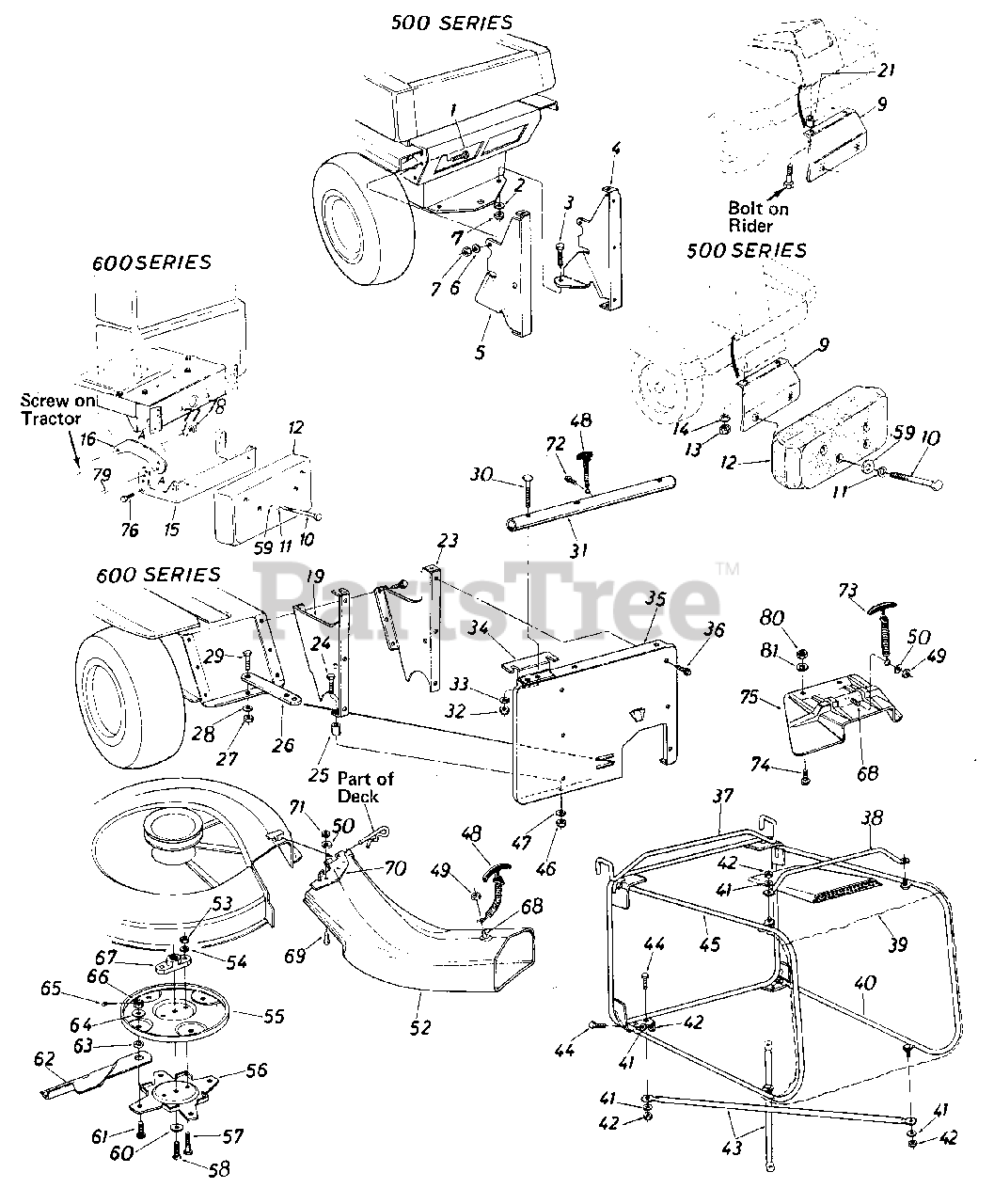

Grass Catcher Parts Diagram

  • Title
1

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 15970

BRACKET-SUPPORT-RH
(Superseded to 15970A)

$

$

Not available

5

Cub Cadet 15971

BRACKET-SUPPORT-LH

$

$

Not available

6

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 15539

BRACKET-SUPPORT

$

$

Not available

10

Cub Cadet 710-0693

SCREW-HEX 3/8 X 4.5 N.C GR. 5

$14.99

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0367

COUNTERWEIGHT

$

$

Not available

13

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 15873

BRACKET-WEIGHT

$

$

Not available

16

Cub Cadet 16024

TIE-STRAP

$

$

Not available

19

Cub Cadet 15363

BRACKET-SUPPORT-LH

$

$

Not available

21

$4.49

$

In Stock, Qty 9

0

23

Cub Cadet 15364

BRACKET-SUPPORT-RH

$

$

Not available

24

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 05400

BRACKET-LINKAGE

Variations

Cub Cadet 05400-0637

BRACKET-LINKAGE - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 712-0922

NUT-HEX JAM 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

28

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 710-0493

SCREW-HEX 1/2-13 X 1.00
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

30

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 X 1.75
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

31

Cub Cadet 749-0659

SUPPORT-TUBE

Variations

Cub Cadet 749-0659-0637

SUPPORT-TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 15995

PLATE-SUPPORT

$

$

Not available

35

Cub Cadet 15923

PANEL-RD

$

$

Not available

36

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 15991

FRAME ASSY-CATCHER

$

$

Not available

38

Cub Cadet 749-0653

HANDLE-CATCHER
(Superseded to 749-0653-0637)

Variations

Cub Cadet 749-0653-0637

HANDLE-CATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 764-0210

BAG-GRASS

$

$

Not available

40

Cub Cadet 15992

FRAME-SIDE

Variations

Cub Cadet 15992-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

41

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet 749-0651

BRACE-BOTTOM

$

$

Not available

44

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 15993

FRAME-SIDE

Variations

Cub Cadet 15993-0637

FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 723-0296

LOCK ASSY-HOOD

$

$

Not available

49

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 15920

CHUTE-BANANA-RD

$

$

Not available

53

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

54

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 742-0265

DISC-BLADE
(Superseded to 742-0286-0637)

$

$

Not available

56

Cub Cadet 742-0279

BLADE DISC-LOWER

$

$

Not available

57

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

Note: (Grade 5)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0280

WASHER-FL
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

61

Cub Cadet 738-0587

SCREW-SHLD .500X.360
(Superseded to 938-0587)

$

$

Not available

62

Cub Cadet 742-0266

BLADE TIP-30IN

$

$

Not available

63

$

$

Not available

64

Cub Cadet 736-0179

WASHER-FL-.531 ID X 1.25 OD X 1.00

$4.99

$

In Stock, only 2 left!

0

65

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA X 1.00

$4.99

$

In Stock, Qty 13

0

66

Cub Cadet 712-0114

NUT-HEX SLOTTED-1/2-20
(Superseded to 912-0114)

$

$

Not available

67

Cub Cadet 748-0300

ADAPTER-BLADE

$13.99

$

In Stock, only 4 left!

0

68

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

69

Cub Cadet 710-0286

SCREW-TRUSS MACH 1/4-20 X .50

$4.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 15921

BRACKET-MTG

$

$

Not available

71

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

72

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 723-0370

LATCH ASSY-HOOD

$

$

Not available

74

Cub Cadet 710-0286

SCREW-TRUSS MACH 1/4-20 X .50

$4.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 731-0721

EXTENSION-CHUTE-RD

$91.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 710-0314

SCREW-HEX 7/16-20 X 1.00

$4.49

$

In Stock, Qty 13

0

77

Cub Cadet 736-0171

WASHER-LOCK-7/16

$4.49

$

In Stock, only 4 left!

0

78

Cub Cadet 712-0240

NUT-JAM 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 710-0915

SCREW-HEX AB-TAP

$

$

Not available

80

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

81

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+
