03668900 - Ariens Hydro-Gear Transmission Transmission - 03668900 Parts Diagram

Hydro-Gear Transmission

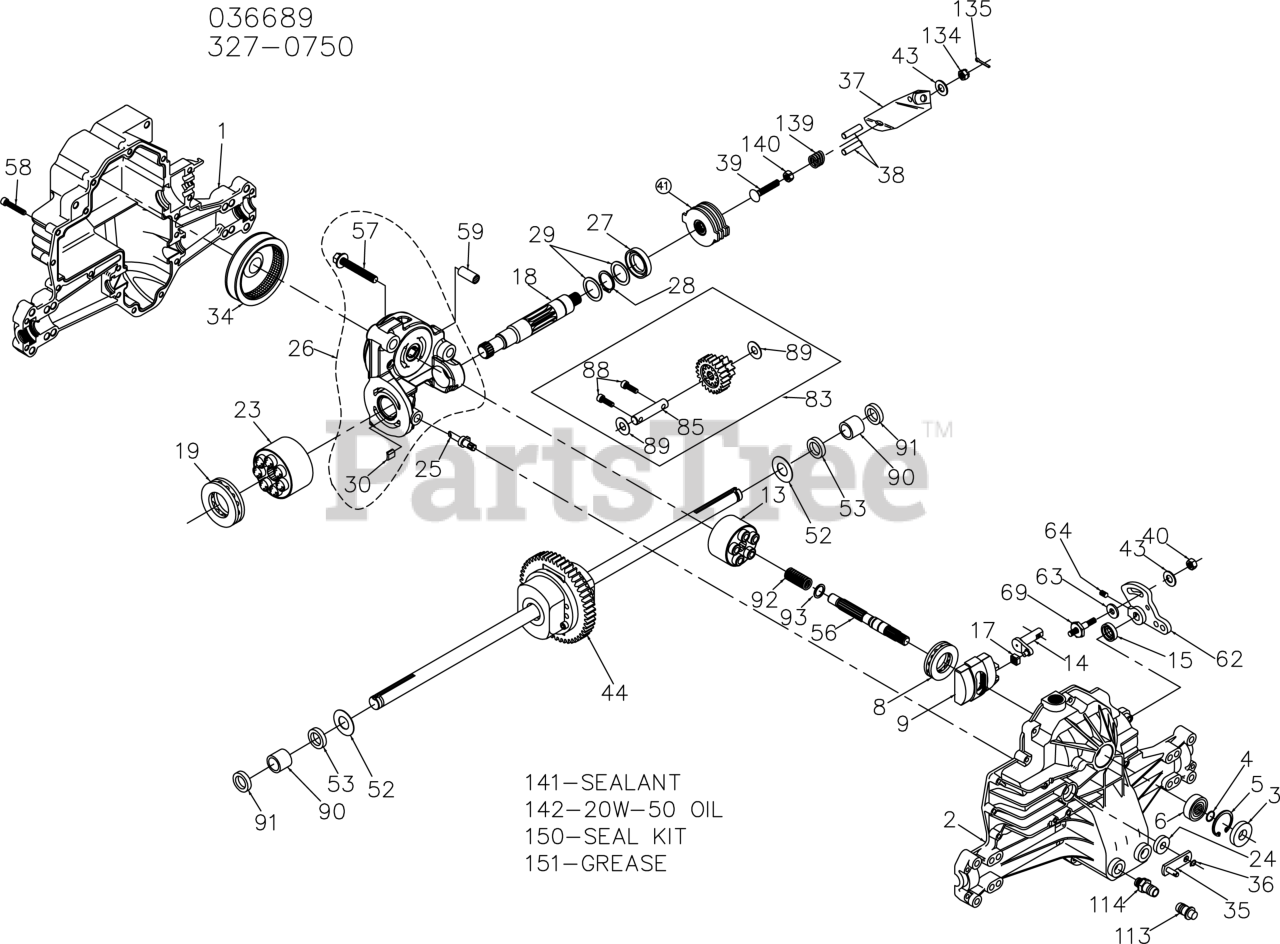

Transmission - 03668900 Parts Diagram

  • Title
1

Ariens 21543982

HSG, 0650 LOWER

$

$

Not available

2

Ariens 21543884

KIT, HSG UPPER

$

$

Not available

3

Ariens 21543998

SEAL, LIP 15X35X7

$

$

Not available

4

Ariens 08613300

RING, WIRE RETAINING

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 08608800

RING. RETAINING

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 08613200

BEARING, SHAFT BALL

$

$

Not available

8

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 08609000

SWASHPLATE. VARIABLE

$

$

Not available

13

Ariens 21543889

KIT, 10 CC BLOCK

$101.99

$

Usually ships in 4-12 days

0

14

Ariens 21543963

ARM, TRUNNION 10 CC

$

$

Not available

15

Ariens 21543997

SEAL, LIP 12X25X7

$

$

Not available

17

Ariens 08610700

GUIDE. SLOT

$

$

Not available

18

Ariens 21543746

SHAFT, MOTOR 1O T

$

$

Not available

19

Ariens 21543747

BRG, THRUST BALL 42X68X16

$

$

Not available

23

ASSEMBLY BLOCK

Note: HG 70082

$

$

Not available

24

Ariens 08613800

SEAL, LIP

$4.49

$

Usually ships in 4-12 days

0

25

Ariens 08609800

ACTUATOR, BYPASS

$

$

Not available

26

Ariens 21543883

KIT, C-SECTION

$

$

Not available

27

Ariens 21543716

SEAL, LIP 26X42X8

$4.49

$

Usually ships in 4-12 days

0

28

Ariens 21543720

RETAINING RING

$

$

Not available

29

Ariens 21543711

WASHER 1.0X1.37X.04

$

$

Not available

30

Ariens 21543918

KIT, BYPASS PLATE

$

$

Not available

34

$71.99

$

Usually ships in 4-12 days

0

35

Ariens 08611100

ARM. BYPASS

$

$

Not available

36

RING, RETAINING

Note: HG 44870

$

$

Not available

37

Ariens 21543700

ARM, BRAKE

$

$

Not available

38

Ariens 21543714

PIN, BRK .3X1.25 PLATED

$

$

Not available

39

Ariens 21543739

RHCS 5/16-24X2 SQ NECK PT

$

$

Not available

40

Ariens 21543740

NUT, HEX 5/16-24 NYLON

$

$

Not available

41

Ariens 21543882

KIT, SRVC BRAKE ROTOR/STA

$

$

Not available

43

WASHER .34 X .88 X .06

Note: HG 44130

$

$

Not available

44

Ariens 21543885

KIT, DIFF

$

$

Not available

52

Ariens 21543727

WASHER .75X1.5X.03

$

$

Not available

53

Ariens 21543717

SEAL, LIP .75X1.25X.25

$

$

Not available

56

Ariens 21543719

SHAFT, INPUT

$90.99

$

Usually ships in 4-12 days

0

57

Ariens 21543721

HFHCS 3/8-24X2.5 (PATCH)

$

$

Not available

58

Ariens 21543713

THCS-STAP 1/4-20X1.4

Note: HG 44876

$3.49

$

Usually ships in 4-12 days

0

59

Ariens 21543718

PIN-HOLLOW .39X.5X1.

$

$

Not available

62

Ariens 21543715

ARM, CNTRL PM

$

$

Not available

63

Ariens 08613000

PACK, FRICTION

$

$

Not available

64

Ariens 21543722

SCREW, SET 5/16-24 60

$

$

Not available

69

Ariens 08611000

STUD. SHORT 5/16-24

$

$

Not available

83

Ariens 21543881

KIT, SRVC JACK SHAFT/PINN

$

$

Not available

85

Ariens 21543748

SHAFT, JACK

$

$

Not available

88

Ariens 21543728

SHCS M6X20 (PATCH)

$

$

Not available

89

Ariens 21543724

WASHER .5X1.0X.032

$

$

Not available

90

Ariens 21543723

BUSHING .75X1.0X.84

$15.99

$

Usually ships in 4-12 days

0

91

Ariens 21543772

SEAL, LIP .75X1X.158

$

$

Not available

92

Ariens 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

93

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

113

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

114

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0

134

NUT, CASTLE 5/16-24

Note: HG 44142

$

$

Not available

135

PIN, COTTER 3/32 X 3/4

Note: HG 44101

$

$

Not available

139

$

$

Not available

140

Ariens 21543732

NUT, HEX 5/16-24

$

$

Not available

141

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: HG 50928

$116.99

$

In Stock, only 1 left!

0

142

Ariens 00058100

FLUID, HYDRO 20W50 QT

Note: Optional Oil Approximatley 76.3 oz

$

$

Not available

142

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Reccomended Oil Approximatley 76.3 oz

$14.99

$

In Stock, Qty 20+

0

150

Ariens 21543887

KIT, SEAL

$

$

Not available

151

Ariens 21543744

GREASE TUBE

$

$

Not available
