0360 - Troy-Bilt Horse Silver Rear-Tine Tiller ELECTRIC START SYSTEM Parts Diagram

Horse Silver Rear-Tine Tiller

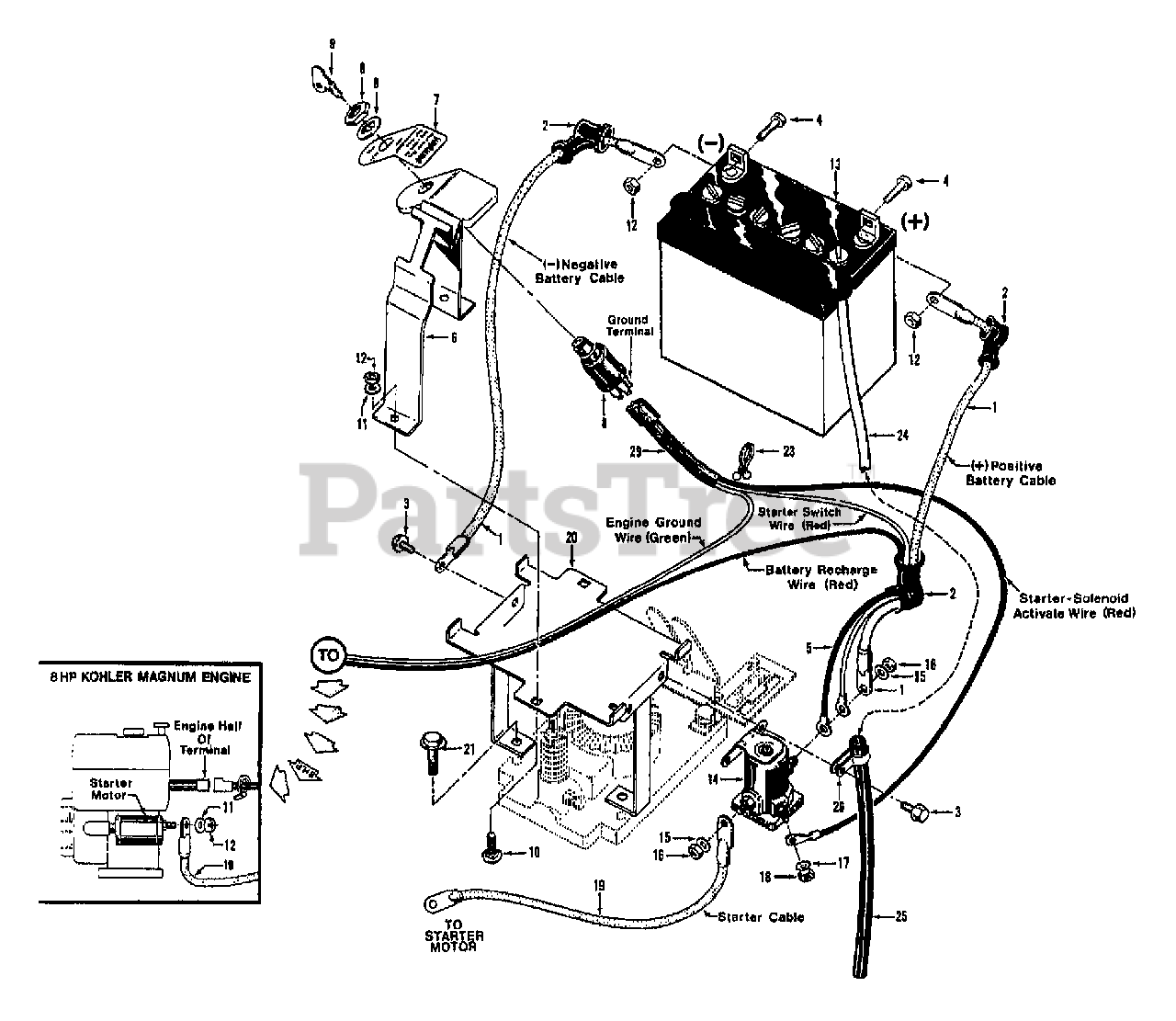

ELECTRIC START SYSTEM Parts Diagram

  • Title
1

Troy-Bilt 96515

CABLE-BATTERY 10"
(Superseded to GW-96515)

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 97020

BOOT-BATTERY CABLE
(Superseded to GW-97020)

$

$

Not available

3

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-9780

SCR-HH 1/4-20X.625
(Superseded to 1186309)

$

$

Not available

5

0

NOT USED WITH 8HP KOHLER ENGINE

$

$

Not available

6

Troy-Bilt 1900873

KEYSWITCH W/DECAL

$162.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900800

DECAL-KEYSWITCH TILLER
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

8

MTD GW-9230

KEYSWITCH W/KEYS

$

$

Not available

9

Troy-Bilt GW-9243

KEYS(1 PAIR) FOR SWITCH
(Superseded to GW-9243099)

$

$

Not available

10

Troy-Bilt GW-9566

SCR-CARR 1/4-20X1.25
(Superseded to 1186073)

$2.99

$

In Stock, only 2 left!

0

11

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

13

Troy-Bilt GW-9092B

BATTERY-12 VOLT HORSE
(Superseded to 925-1707D)

$

$

Not available

14

Troy-Bilt GW-1959

KIT-SOL W/HDW

$

$

Not available

15

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 96510

CABLE-BATTERY 12"
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

20

MTD 1900875004

BRKT-BATTERY OPC BLACK

$

$

Not available

21

Troy-Bilt GW-90047

SCR-HFLK 3/8-16X1.50
(Superseded to 1186349)

$3.99

$

Usually ships in 3-6 days

0

?22

0

NOT USED

$

$

Not available

23

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available

24

MTD 9009

TUBE-VENT BATTERY/HSE

$

$

Not available

25

MTD 1475

TUBING-RUBBER

$

$

Not available

26

MTD 9224

CLAMP

$

$

Not available

29

Troy-Bilt GW-2613

HARNESS-WIRE 3.5

$

$

Currently unavailable

Troy-Bilt 96514

SOLENOID
(Superseded to GW-96514099)

$48.99

$

In Stock, only 1 left!

0
