035 (216-035-100) - Cub Cadet Front-Tine Tiller (1996) Chain Case Assembly Parts Diagram

Front-Tine Tiller

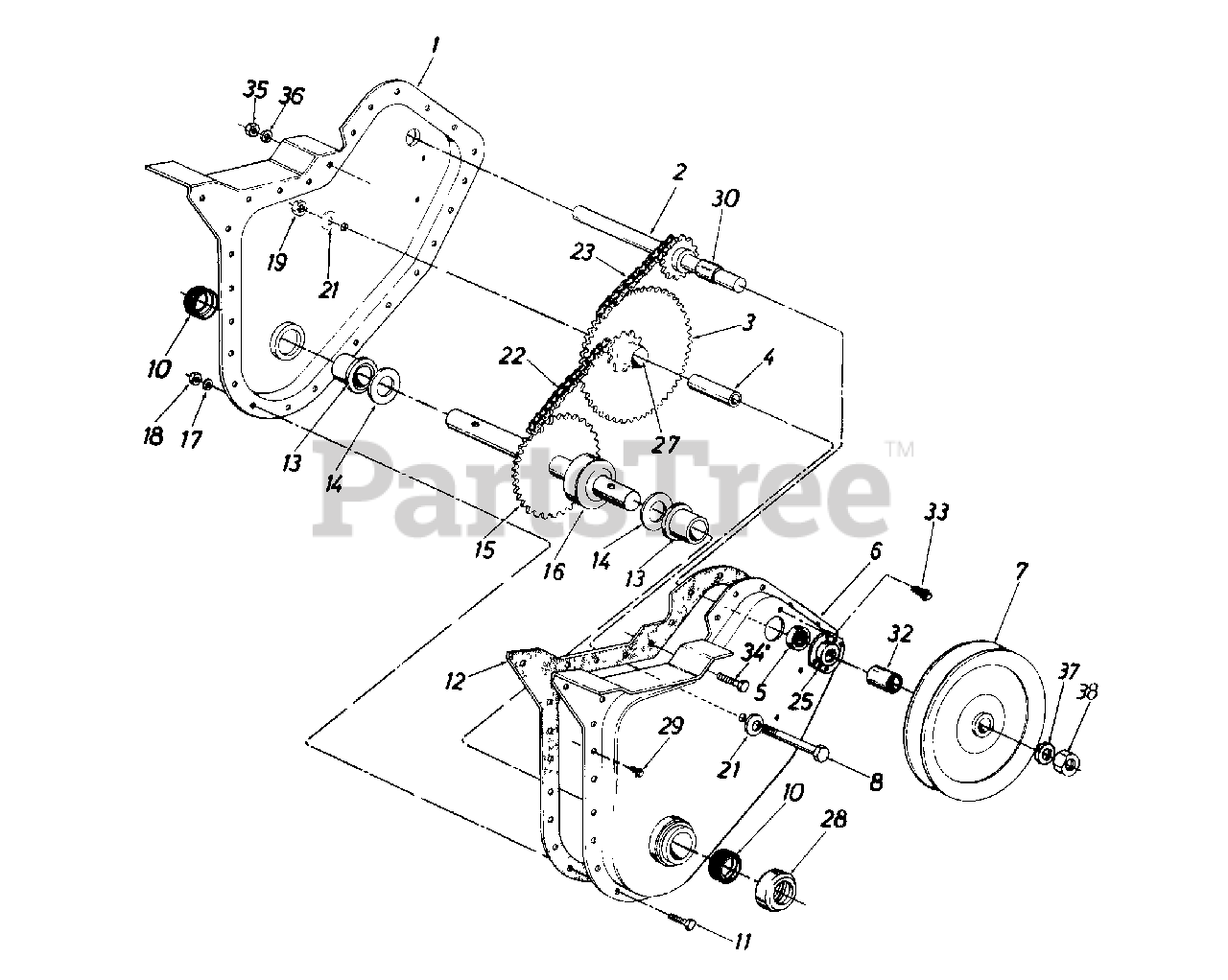

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 686-0085

Chain Case Ass'y.- R.H.
(Superseded to 686-0085-0637)

Variations

Cub Cadet 686-0085-0637

CASE-CHAIN RH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 611-0057

Input Shaft Ass'y.

$

$

Not available

3

Cub Cadet 04757

Hub and Sprocket Ass'y.
(Superseded to 04757A)

$

$

Not available

4

Cub Cadet 750-0351

Bearing Inner Race

$

$

Not available

5

Cub Cadet 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

6

Cub Cadet 686-0087

Chain Case Ass'y.- L.H.
(Superseded to 686-0087-0637)

$

$

Not available

7

Cub Cadet 756-0996

Pulley - Chain Case

Note: Not part of chain case assembly

$

$

Not available

8

Cub Cadet 710-0369

Hex Bolt 3/8-24 x 2.5"

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 721-0157

Seals

Note: Not part of chain case assembly

$

$

Not available

11

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .625"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 721-0156A

Gasket
(Superseded to 921-0156A)

$

$

Not available

13

Cub Cadet 741-0227

Flange Brg..879" I.D.

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0265

FI-Wash..88" I.D. x 1.5"

$

$

Not available

15

Cub Cadet 04920

Tine Shaft Ass'y.

$

$

Not available

16

Cub Cadet 750-0354A

Spacer 7/8" I.D.

$

$

Not available

17

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0219

Bell-Wash..406" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0215

Chain #420 1/2" Pitch 38 Links

$

$

Not available

Cub Cadet 713-0154

#420 Master Link
(Superseded to 913-0154)

$

$

Not available

23

Cub Cadet 713-0216

Chain #35 .375" Pitch 50 Links

$

$

Not available

Cub Cadet 713-0139

#35 Master Link
(Superseded to 913-0139)

$

$

Not available

25

Cub Cadet 05034A

Bearing Housing

$

$

Not available

27

Cub Cadet 741-0228

Bearing

$

$

Not available

28

Cub Cadet 731-0486

Dust Cap

Note: Not part of chain case assembly

$

$

Not available

29

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0471

Spacer.63" I.D.x.77" O.D. x .38" Lg.

$

$

Not available

32

Cub Cadet 750-0999

Spacer .647 x .77"

Note: Not part of chain case assembly

$

$

Not available

33

Cub Cadet 710-0653

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

34

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0105

Bell-Wash..38" I D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0379

Hex Flange L-Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0093

Chain Case Ass'y. Comp.

$

$

Not available
