035 (215-035-100) - Cub Cadet Front-Tine Tiller Engine (1995) Rewind Starter, Flywheel Assembly And Fuel Tank Parts Diagram

Front-Tine Tiller Engine

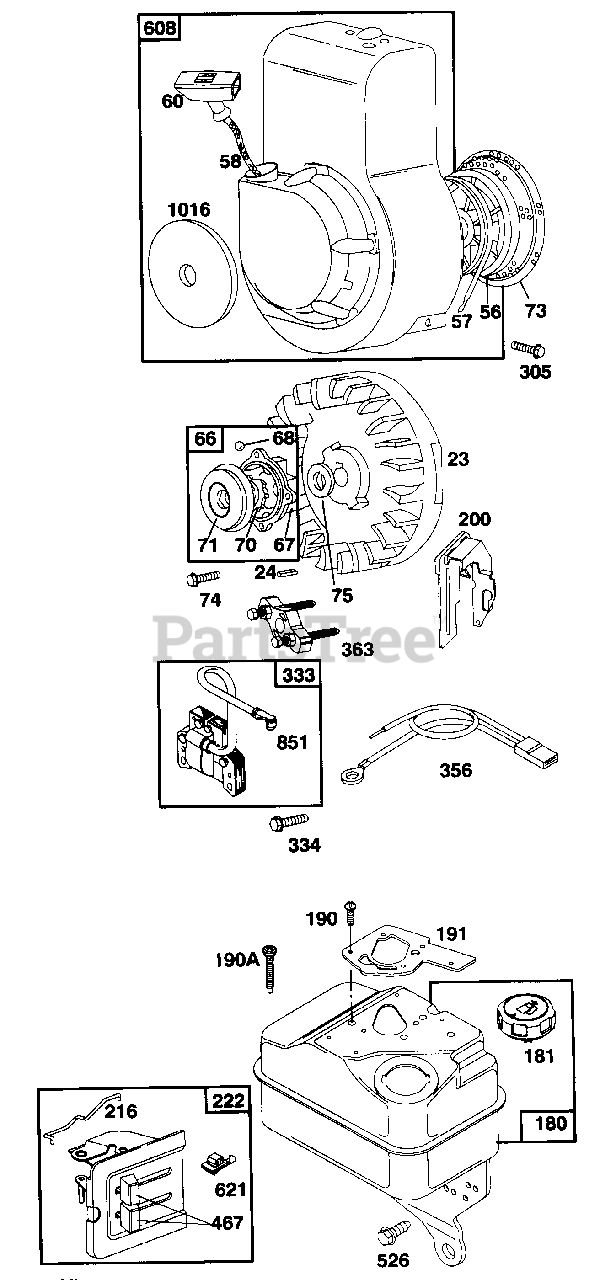

Rewind Starter, Flywheel Assembly And Fuel Tank Parts Diagram

  • Title

23

Cub Cadet BS-394066

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

56

Cub Cadet BS-280439

Pulley-Rewind Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, Qty 13

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-280406

Rope-Starter
(Superseded to BS-280406S)

$8.49

$

In Stock, Qty 5

0

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-399671

Clutch Assy.-Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer-Clutch Ret.

$

$

Not available

73

Cub Cadet BS-221661

Screen-Rotating
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93758

Screw-Self Tap

$

$

Not available

75

Cub Cadet BS-223047

Washer-Spring

$

$

Currently unavailable

200

Cub Cadet BS-495213

Blade-Governor

$

$

Not available

305

Cub Cadet BS-94786

Screw-Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 13

0

333

Cub Cadet BS-398593

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 1 left!

0

334

Cub Cadet BS-94731

Screw-Armature Mtg.

$

$

Not available

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-491728

Starter-Rewind

$

$

Not available

851

Cub Cadet BS-493880

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, Qty 5

0

180

Cub Cadet BS-495368

Tank Assy.-Fuel

$

$

Not available

181

Cub Cadet BS-494559

Cap-Fuel Tank

$

$

Not available

190

Cub Cadet BS-94712

Screw-Sem

$

$

Not available

190A

Cub Cadet BS-94677

Screw-Sem

$

$

Not available

191

Cub Cadet BS-272489

Gasket-Tank Mounting
(Superseded to BS-692241)

Note: Included In Gasket Set, P/N BS-495605; Included In Carburetor Overhaul Kit, P/N BS-495606

$4.49

$

In Stock, Qty 20+

0

216

Cub Cadet BS-262359

Link-Choke
(Superseded to BS-691824)

$9.99

$

In Stock, only 2 left!

0

222

Cub Cadet BS-490649

Bracket-Control

$67.99

$

Usually ships in 2-12 days

0

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 4 left!

0

526

Cub Cadet BS-93062

Screw-Sem

Note: Uses: BS-66432 Washer

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

Cub Cadet BS-495605

Gasket Set

Note: Includes Ref No 191

$47.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-495606

Carburetor Overhaul Kit

Note: Includes Ref No 191

$26.99

$

In Stock, Qty 13

0
