035 (215-035-100) - Cub Cadet Front-Tine Tiller Engine (1995) Carburetor Assembly And Shaft Accessories Parts Diagram

Front-Tine Tiller Engine

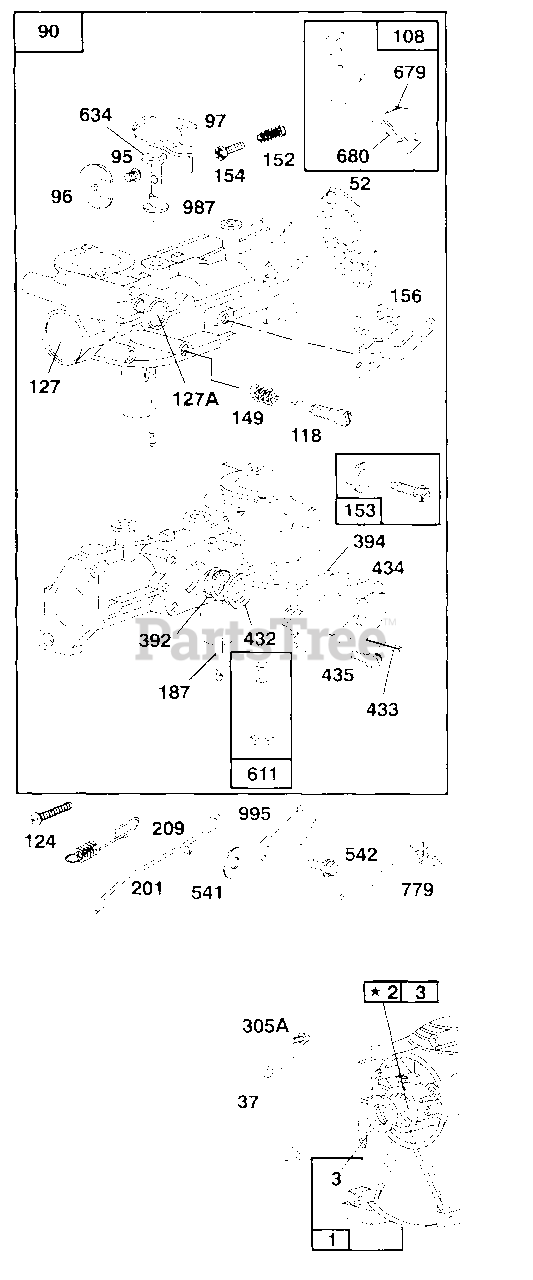

Carburetor Assembly And Shaft Accessories Parts Diagram

  • Title

52

Cub Cadet BS-272585

Gasket-Intake Elbow
(Superseded to BS-273113S)

Note: Included In Gasket Set, P/N BS-495605

$4.49

$

In Stock, Qty 17

0

90

Cub Cadet BS-495461

Carburetor Assembly

$

$

Not available

95

Cub Cadet BS-93499

Screw-Throttle Valve
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223793

Valve-Throttle

$

$

Currently unavailable

97

Cub Cadet BS-495313

Shaft and Lever-Thr.

$

$

Currently unavailable

108

Cub Cadet BS-490495

Valve Assy.-Choke

$

$

Currently unavailable

118

Cub Cadet BS-231533

Valve-Needle

$

$

Not available

?121

Cub Cadet BS-495606

Carburetor Kit

$26.99

$

In Stock, Qty 7

0

124

Cub Cadet BS-94616

Screw-Hex. Hd.
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-220352

Plug-Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug-Welch

$

$

Not available

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring-Throttle Adj.

$

$

Currently unavailable

153

Cub Cadet BS-490501

Screw-Carburetor Lever

$4.99

$

Usually ships in 2-12 days

0

154

Cub Cadet BS-93527

Screw-Rd. Hd.

$

$

Not available

156

Cub Cadet BS-492905

Lever-Speed Adj. (Fixed Speed)

$

$

Currently unavailable

187

UnKnown

$

$

Not available

201

Cub Cadet BS-262325

Link-Governor

$

$

Not available

209

Cub Cadet BS-262317

Spring-Governor

$

$

Not available

392

Cub Cadet BS-262328

Spring-Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, only 2 left!

0

394

Cub Cadet BS-272538

Diaphragm
(Superseded to BS-272538S)

Note: Included In Carburetor Overhaul Kit, P/N BS-495606

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin-Diaphragm

$

$

Currently unavailable

434

Cub Cadet BS-214021

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw-Diaph. Cover

$

$

Not available

541

Cub Cadet BS-22398

Washer-Speed Adjuster Lever

$

$

Currently unavailable

542

Cub Cadet 710-0432

Screw-Hex. Head

$

$

Not available

611

Cub Cadet BS-297219

Fuel Pipe

$

$

Not available

634

Cub Cadet BS-271853

Washer-Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

679

Cub Cadet BS-270382

Washer-Choke Shaft (Foam)
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

680

Cub Cadet BS-221839

Washer-Choke Shaft

$

$

Not available

779

Cub Cadet BS-262570

Link-Control

$

$

Not available

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

995

Cub Cadet BS-223887

Bracket-Control Link

$

$

Not available

1

Cub Cadet BS-494549

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included In Gasket Set, P/N BS-495605

$5.49

$

In Stock, Qty 17

0

37

Cub Cadet BS-224557

Guard-Flywheel

$

$

Currently unavailable

305A

Cub Cadet BS-93777

Screw-Sem

$

$

Currently unavailable

Cub Cadet BS-495605

Gasket Set

Note: Includes Ref Nos 52 & 3

$47.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-495606

Carburetor Overhaul Kit

Note: Includes Ref No 394

$26.99

$

In Stock, Qty 7

0
