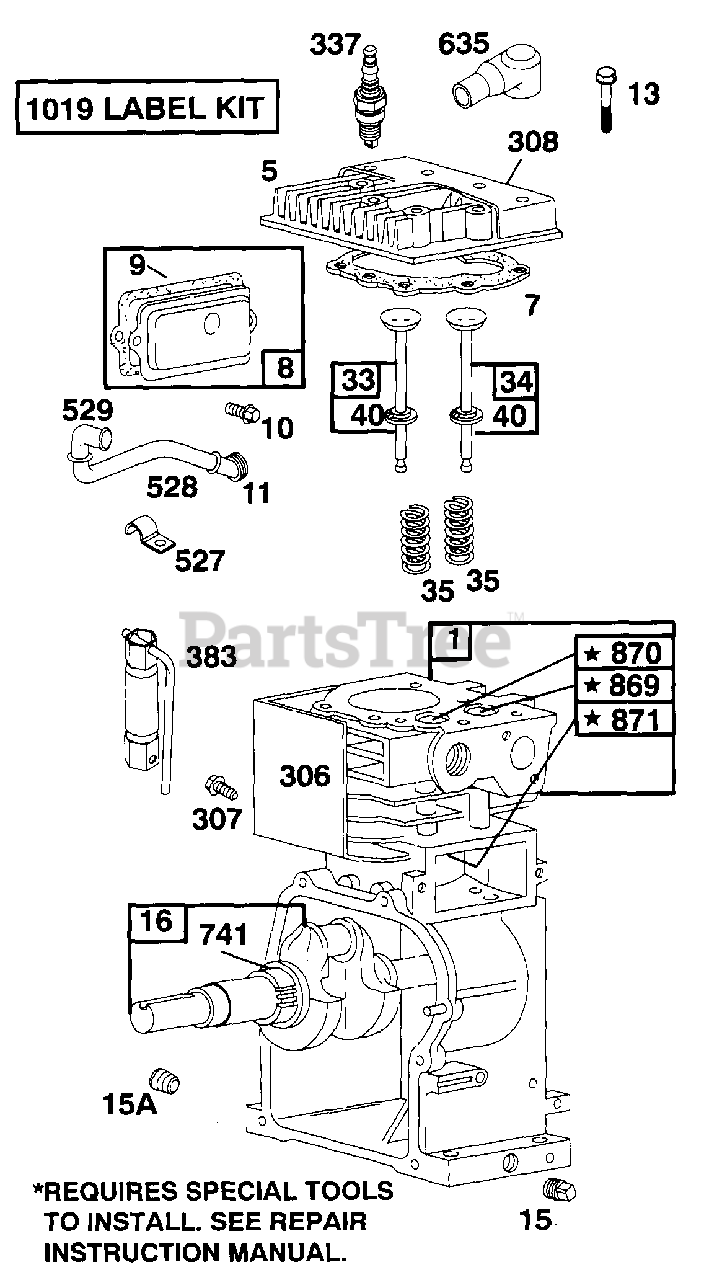

035 (214-035-100) - Cub Cadet Front-Tine Tiller Engine (1994) B&S 3 HP Cylinder Ass'y, Label Kit, Crankshaft Parts Diagram

Front-Tine Tiller Engine

B&S 3 HP Cylinder Ass'y, Label Kit, Crankshaft Parts Diagram

  • Title

1

Cub Cadet BS-494549

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-213942

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272536

Gasket-Cylinder Head

Note: Included in Gasket Set Part No. BS-495603.

$

$

Not available

8

Cub Cadet BS-495774

Tube-Breather
(Superseded to BS-791779)

$15.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

Note: Included in Gasket Set Part No. BS-495603.

$

$

Not available

10

Cub Cadet BS-93394

Screw-Vlv. Cover Mtg.
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet-Cover
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-93111

Screw-Cyl. Hd.
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

15

Cub Cadet BS-94387

Plug-Pipe (Sq. Hd.)
(Superseded to BS-691686)

$5.49

$

In Stock, only 2 left!

0

15A

Cub Cadet BS-93448

Plug-Oil Drain (Hex. Socket Hd.)

$

$

Currently unavailable

16

Cub Cadet BS-493632

Crankshaft:

Note: To Replace Crankshaft Gear Pin, Order Part No. BS-230978.

$148.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-296676

Valve-Exhaust

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

$24.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-260552

Spring-Valve

$5.49

$

In Stock, only 1 left!

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

306

Cub Cadet BS-224555

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93758

Screw-Self Tap

$

$

Not available

308

Cub Cadet BS-224556

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231527

Tube-Breather
(Superseded to BS-692528)

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Cover
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 18

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 13

0

741

Cub Cadet BS-261533

Gear-Timing

$

$

Not available

869

Cub Cadet BS-211172

Seat-Intake Valve

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve:

$

$

Not available

Cub Cadet BS-63709

GuideIntake Valve.

$14.99

$

Usually ships in 2-12 days

0

871

Cub Cadet BS-262001

Guide-Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491069

Label Kit

$36.99

$

Usually ships in 2-12 days

0
