0349 - MTD Snow Thrower (1986) (J.C. Penney) Parts Parts Diagram

Snow Thrower

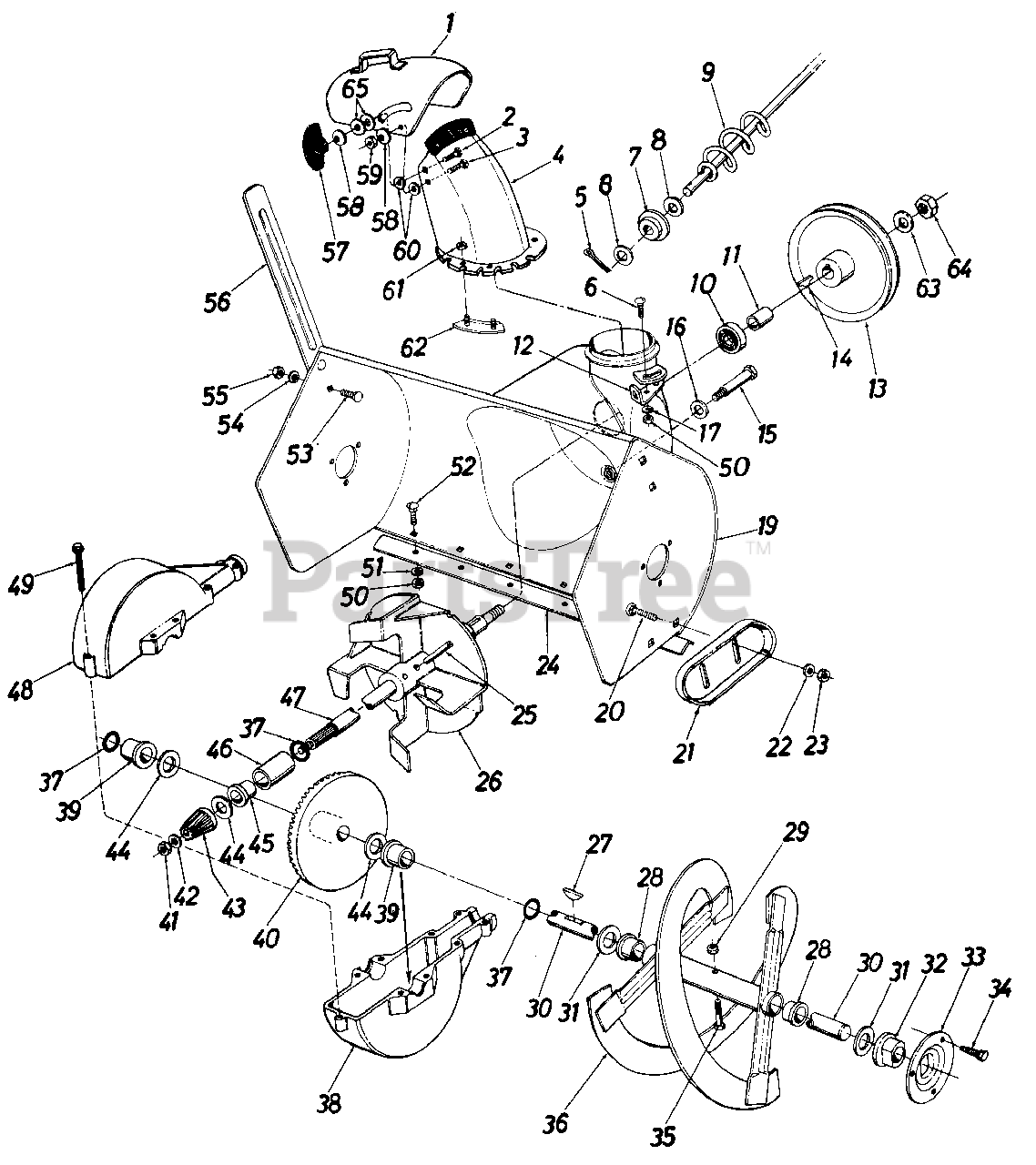

Parts Parts Diagram

  • Title

1

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

2

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 05951

Chute Ass'y.

$

$

Currently unavailable

5

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

6

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

7

MTD 741-0475

Hex Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0264

Fl-Wash. 385 I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

9

MTD 05981

Chute Crank Ass'y.

$

$

Not available

10

MTD 741-0155

Ball Brg. .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

11

MTD 750-0118

Spacer.63" I.D. x .88" O.D. x .900" Lg.
(Superseded to 950-0118)

$

$

Not available

12

MTD 784-5123

Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

13

MTD 756-0344

1/2" "V"-Pulley .625" I.D. x 7.50" O.D.

$81.99

$

Usually ships in 3-6 days

0

14

MTD 714-0388

#61 Hi-Pro Key 3116" x 518" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

15

MTD 738-0154

Shld. Bolt .50" Dia. x 2.11" Lg.

$

$

Not available

16

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 784-5124

20" Blower Housing Ass'y.

Note: (440 & 450)

Variations

MTD 784-5124-0638

No Longer Available HOUSING 20 - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 784-5125

24" Blower Housing Ass'y.

Note: (550 & 580)

$

$

Currently unavailable

20

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.*
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

21

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, only 2 left!

0

22

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

24

MTD 784-5057

20" Shave Plate

Note: (440 & 450)

$

$

Not available

MTD 05847

24" Shave Plate

Note: (550 & 580)

Variations

MTD 05847-0637

24" Shave Plate - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

26

MTD 05865

11" Dia. Blower Fan Ass'y.
(Superseded to 05865A-0637)

$

$

Not available

27

MTD 714-0126

#9 Hi-Pro Key 3/16 x 314" Dia.

$4.99

$

In Stock, Qty 12

0

28

MTD 741-0321

Flange Brg. .75" I.D. x .88" O.D. x .62
(Superseded to 741-0493A)

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

MTD 738-5065

Spiral Axle

Note: (440 & 450)

$

$

Not available

MTD 738-0488

Spiral Axle
(Superseded to 738-0488A)

Note: (550 & 580)

$129.99

$

Usually ships in 3-6 days

0

31

MTD 736-0188

Fl-Wash. .75" I.D. x 1.50" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

32

MTD 741-0300

Flange Brg. w/Flats .755" I .D.
(Superseded to 941-0300)

$14.99

$

In Stock, Qty 11

0

33

MTD 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

34

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

35

MTD 710-0890

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

36

MTD 784-5053

20" Spiral Ass'y.-L.H.

Note: (440 & 450)

$

$

Currently unavailable

MTD 784-5054

20" Spiral Ass'y.-R.H.

Note: (440 & 450)

$

$

Currently unavailable

MTD 05923

24" Spiral Ass'y.-L.H.

Note: (550 & 580)

$

$

Currently unavailable

MTD 05924

24" Spiral Ass'y.-R.H.

Note: (550 & 580)

$

$

Currently unavailable

37

MTD 721-0176

"O"-Ring-314" I.D.
(Superseded to 921-0176)

$8.99

$

Usually ships in 3-6 days

0

38

MTD 717-0456

Bevel Gear Housing-Lower Half

$

$

Currently unavailable

39

MTD 741-0293

Plastic Flange Brg. .755" I.D.

$10.99

$

In Stock, only 3 left!

0

40

MTD 717-0457

Bevel Gear

$

$

Not available

41

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

42

MTD 736-0264

Fl-Wash. .34" I.D. x .62" O.D. x .06

$6.99

$

In Stock, only 2 left!

0

43

MTD 748-0237

Pinion Gear
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

44

MTD 736-0287

Fl-Wash. .75" I.D. x 1.25" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

45

MTD 748-0171

Flange Brg. .755" I.D.

$11.99

$

Usually ships in 3-6 days

0

46

MTD 748-0106

Sleeve Brg. .755" I.D.

$

$

Not available

47

MTD 738-0649

Blower Axle

$

$

Not available

48

MTD 717-0455

Bevel Gear Housing- [Upper Half

$

$

Currently unavailable

49

MTD 710-0588

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

50

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 05139

Drift Cutter Bar
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

57

MTD 09966

Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

58

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

60

MTD 736-0179

Fl-Wash. .53" I.D. x 1.25" O.D. x .100

$4.99

$

In Stock, only 2 left!

0

61

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

62

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

63

MTD 736-0116

Fl-Wash. .64" I.D. x .94" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

64

MTD 712-0923

Hex Jam Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

65

MTD 736-0231

Fl-Wash. .344 I.D. x 1.125 O.D.

$4.99

$

In Stock, Qty 20+

0

MTD 717-0701

Gear Box Complete

Note: (440 & 450)

$

$

Currently unavailable

MTD 717-0454

Gear Box Complete

Note: (550, 580)

$

$

Currently unavailable
