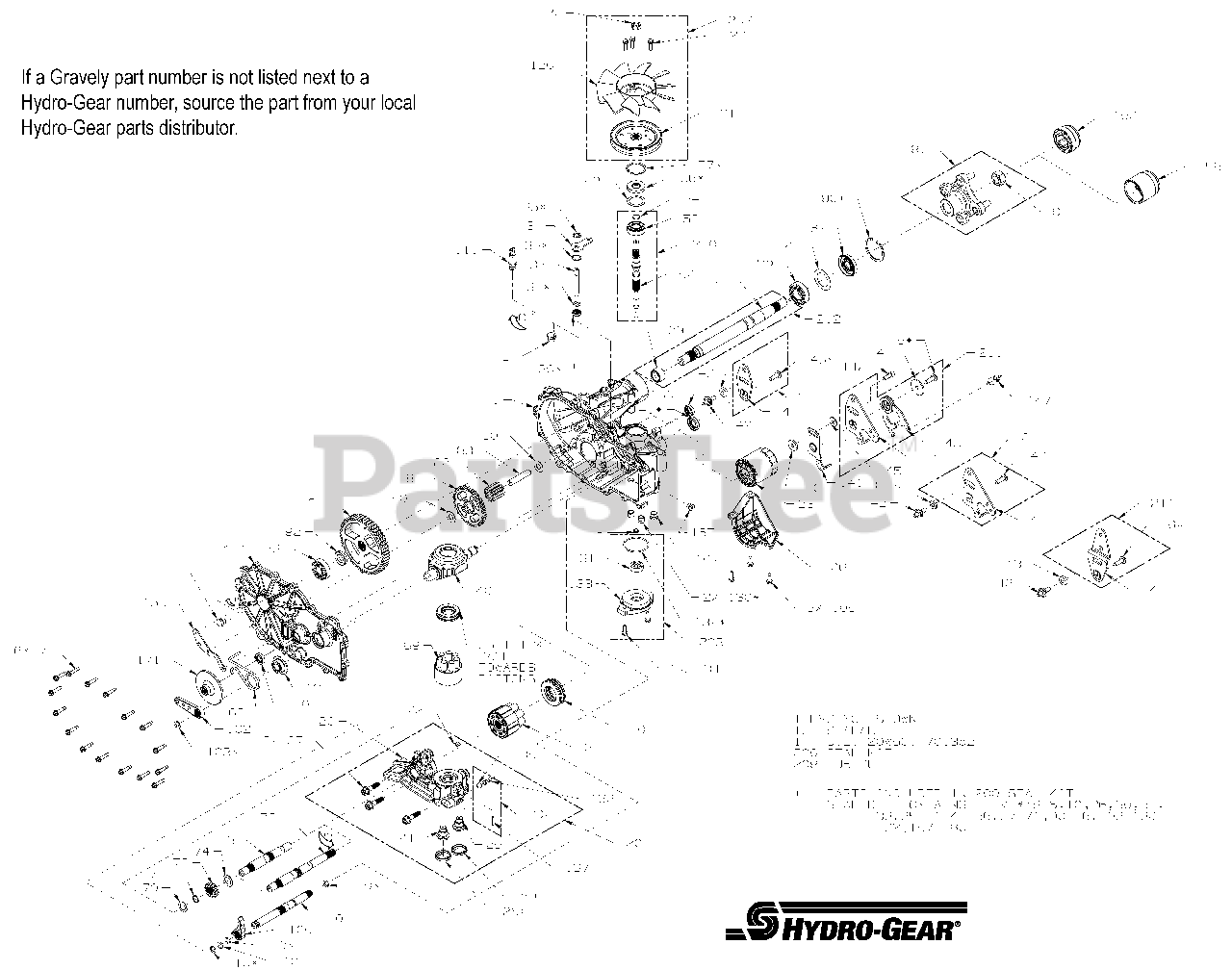

2800 Series Hydro-Gear Transmission

Transmission, LH - 03265700 Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CHRG, CNTL

KIT, HOUSING, MAIN, LH, CHRG, CNTL

Note: Hydro-Gear p/n 71421

$

$

Not available

2

KIT, COVER, SIDE, LH

KIT, COVER, SIDE, LH

Note: Hydro-Gear p/n 71574

$

$

Not available

7

Gravely 27105900

HFHCS 1/4-20 X 1.125"

Note: Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

10

O-RING -111 .103 X .424

O-RING -111 .103 X .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG, EXTERNAL HEX VENT 9/16-18

PLUG, EXTERNAL HEX VENT 9/16-18

Note: Hydro-Gear p/n 54730

$

$

Not available

13

Gravely 21543771

SEALANT, TUBE

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

14

OIL, 20W50

OIL, 20W50

Note: N/A

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: Hydro-Gear p/n 52114

$

$

Not available

26

Gravely 21544047

SEAL, PLUG 1.250 X .250

Note: Hydro-Gear p/n 52162

$7.49

$

Usually ships in 4-12 days

0

27

HFHCS 3/8-16 X 1.50

HFHCS 3/8-16 X 1.50

Note: Hydro-Gear p/n 52137 (PATCH)

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RETAINING .375 EXTERNAL

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RETAINING .750 INTERNAL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21548901

ARM, BYPASS

Note: Hydro-Gear p/n 52370

$

$

Not available

35

Gravely 21543848

RING, RETIANING .375 EXTERNAL

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

TRUNNION, SWASHPLATE

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$

$

Not available

41

Gravely 21543809

SEAL, LIP 12 X .0 X 7

Note: Hydro-Gear p/n 51140

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER, .34 X .88 X .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/1 6-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER, 1.23 X 1.56 X .04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 X 40 X 7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

KIT, 16cc MOTOR BLOCK

Note: Hydro-Gear p/n 71579

$77.99

$

Usually ships in 4-12 days

0

65

Gravely 08609100

BEARING, THRUST BALL 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASS'Y, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER, .63 X 1.0 X .05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Gravely 21543704

RING, RETAINING .625

Note: Hydro-Gear p/n 44145

$

$

Not available

72

GEAR, 16T

GEAR, 16T

Note: Hydro-Gear p/n 52149

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER, .72 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER, .5 X 1.0 X .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 43T

GEAR, 43T

Note: Hydro-Gear p/n 52148

$

$

Not available

82

GEAR, 11T

GEAR, 11T

Note: Hydro-Gear p/n 52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT

Note: Hydro-Gear p/n 51083 (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING 1.06 INTERNAL

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .75 X 1.32 X .257

SPACER, .75 X 1.32 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear p/n 53071

$

$

Not available

95

Gravely 08614000

BEARING, BALL 1.0 X 52 X 15 OPEN 6205M

Note: Hydro-Gear p/n 53656

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP TC4, 1.0 X 2.06 X .38

Note: Hydro-Gear p/n 53699

$16.99

$

In Stock, only 1 left!

0

97

Gravely 21544061

KIT, HUB, 4 BOLT

Note: Hydro-Gear p/n 71446

$90.99

$

Usually ships in 4-12 days

0

99

Gravely 08621100

NUT, HEX LOCK 3/4-16

Note: Hydro-Gear p/n 53768

$7.49

$

Usually ships in 4-12 days

0

100

JPAWL, BRAKE

JPAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

Note: Hydro-Gear p/n 52651

$

$

Not available

102

Gravely 21544006

ARM, BRAKE 2"

Note: Hydro-Gear p/n 52499

$

$

Not available

103

RING, RETAINING

RING, RETAINING

Note: Hydro-Gear p/n 53019

$

$

Not available

105

Gravely 21543759

HFHCS 1/4-20 X .75

Note: Hydro-Gear p/n 50752

$

$

Not available

106

Gravely 21548907

GUARD, FILTER, LH

Note: Hydro-Gear p/n 53644

$19.99

$

In Stock, only 1 left!

0

111

Gravely 21544058

FITTING, STR 9/16-18 SAE .5 BARB

Note: Hydro-Gear p/n 71393

$

$

Not available

120

FAN, 7.0 W/INSERT

FAN, 7.0 W/INSERT

Note: Hydro-Gear p/n 53821 (10 BLADE)

$

$

Not available

121

DISC, PULLEY, CUPPED, 4.5 INCH

DISC, PULLEY, CUPPED, 4.5 INCH

Note: Hydro-Gear p/n 53804

$

$

Not available

122

Gravely 21543703

NUT, HEX JAM 1/2-20 W/PATCH

Note: Hydro-Gear p/n 44133

$4.99

$

In Stock, only 4 left!

0

124

HUB, PULLEY

HUB, PULLEY

Note: Hydro-Gear p/n 53812

$

$

Not available

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: Hydro-Gear p/n 54501

$

$

Not available

131

Gravely 08611500

GEROTOR ASSEMBLY

Note: Hydro-Gear p/n 50273 (1.9 cc/rev)

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING, -137, .103 X 2.050

Note: Hydro-Gear p/n 52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 53738

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20 X .75

Note: Hydro-Gear p/n 50752

$

$

Not available

140

Gravely 21543870

SPACER, .320 X 1.005 X .179

Note: Hydro-Gear p/n 54315

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$12.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24 X 10

Note: Hydro-Gear p/n 51616 (PATCH)

$

$

Not available

147

Gravely 21544001

SPRING, EXTNSN RTN

Note: Hydro-Gear p/n 51833 34LBS

$

$

Not available

157

KIT, GEROTOR SEAL

KIT, GEROTOR SEAL

Note: Hydro-Gear p/n 72291

$

$

Not available

158

CAP, AXLE

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

186

TUBE, AXLE

TUBE, AXLE

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear p/n 71410

$77.99

$

Usually ships in 4-12 days

0

201

Gravely 21544063

KIT, CENTERSECTION, LH, CHRG

Note: Hydro-Gear p/n 71563 KIT INCLUDES 20, 22, 24, 25, 26, 27, 28, 135, 136, 137

$301.99

$

Usually ships in 4-12 days

0

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436 KIT iNCLUDES: 135, 136, 137

$

$

Not available

203

Gravely 21544060

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 72274 KIT INCLUDES: 131, 132, 133, 134

$96.99

$

In Stock, only 2 left!

0

207

Gravely 21543898

KIT, FAN/PULLEY

Note: Hydro-Gear p/n 72124

$80.99

$

Usually ships in 4-12 days

0

209

Gravely 21544009

HUB, PULLER, UNIVERSAL
(Superseded to 21544008)

Note: Hydro-Gear p/n 72320

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

KIT, INPUT SHAFT
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442 KIT INCLUDES: 52, 53, 54

$

$

Not available

211

Gravely 21544065

KIT, RTN, CCW

Note: Hydro-Gear p/n 71593 KIT INCLUDES: 44, 46, 145, 146

$

$

Not available

212

KIT, SHAFT, AXLE

KIT, SHAFT, AXLE

Note: Hydro-Gear p/n 71570

$

$

Not available
