032 (OEM-190-032) - Cub Cadet 42" Snow Thrower Attachment att Spindle & Pulley 2007 & 2008 Parts Diagram

42" Snow Thrower Attachment

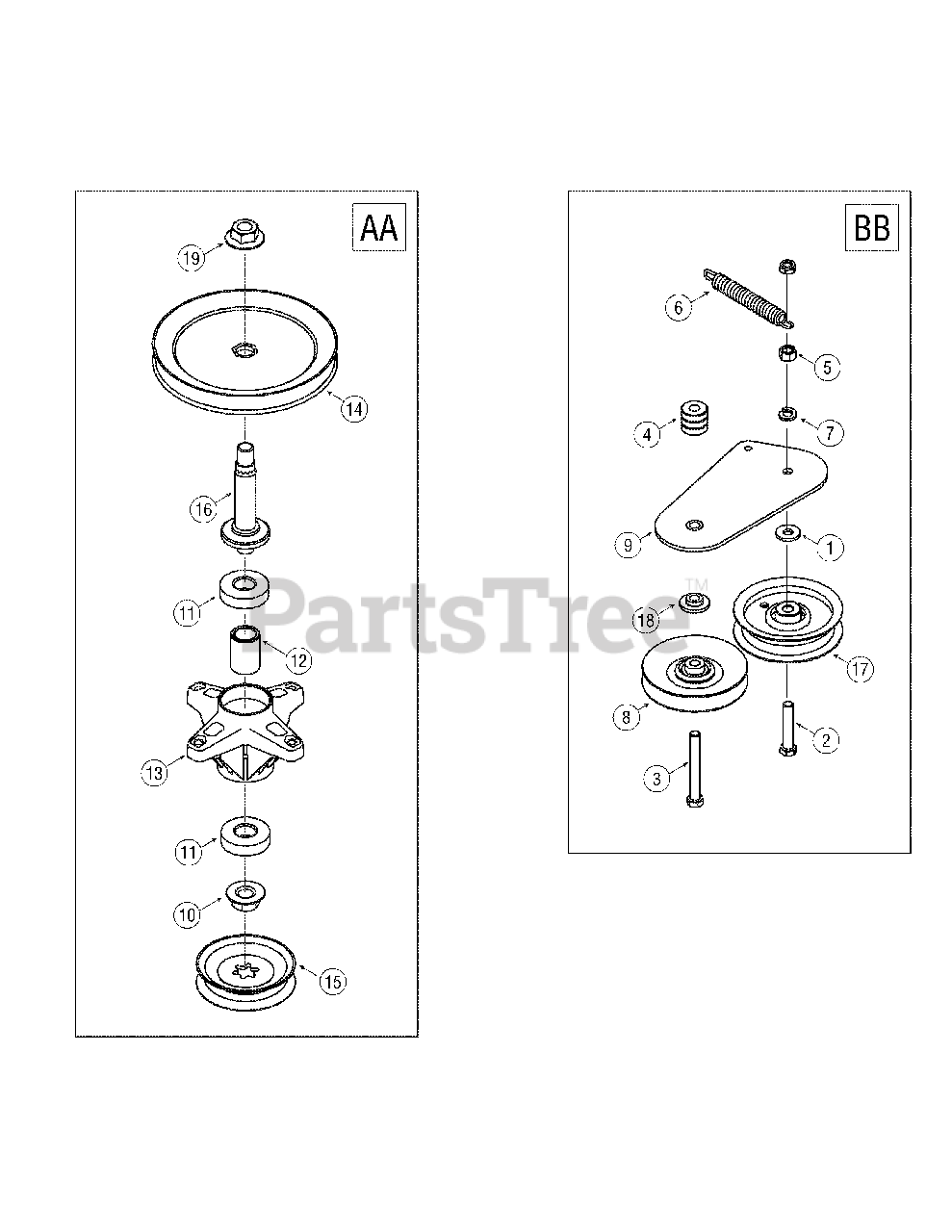

Spindle & Pulley 2007 & 2008 Parts Diagram

  • Title

1

MTD 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0151

Hex Cap Screw, 3/8-24 x 2

$7.49

$

In Stock, only 3 left!

0

3

MTD 710-0521

Hex Cap Screw, 3/8-16 x 3

$5.49

$

In Stock, Qty 11

0

4

MTD 711-0242

Spacer

$4.49

$

In Stock, Qty 8

0

5

MTD 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

6

MTD 732-0978

Extension Spring, .620 x 5.62

$10.99

$

Usually ships in 3-6 days

0

7

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

8

MTD 756-0487

Idler pulley, 4" Diameter

$48.99

$

In Stock, only 1 left!

0

9

MTD 784-5727

Idler Pivot Arm
(Superseded to 784-5727-0637)

Variations

MTD 784-5727-0637

ARM PIVOT IDLER - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

10

MTD 7120417

HEX FLANGE NUT
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0

11

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 750-1096

Spacer

$8.49

$

Usually ships in 3-6 days

0

13

MTD 619-0044

Deck Spindle Housing
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

14

MTD 756-0999

Deck Pulley 7"

$54.99

$

Usually ships in 3-6 days

0

15

MTD 756-1173

Pulley 3.75"

$36.99

$

Usually ships in 3-6 days

0

16

MTD 738-0976

Spindle Shaft

$48.99

$

In Stock, only 4 left!

0

17

MTD 756-0627D

Idler Pulley 3.50 dia.

$30.99

$

In Stock, Qty 20+

0

18

MTD 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

19

MTD 7120417

HEX FLANGE NUT
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0
