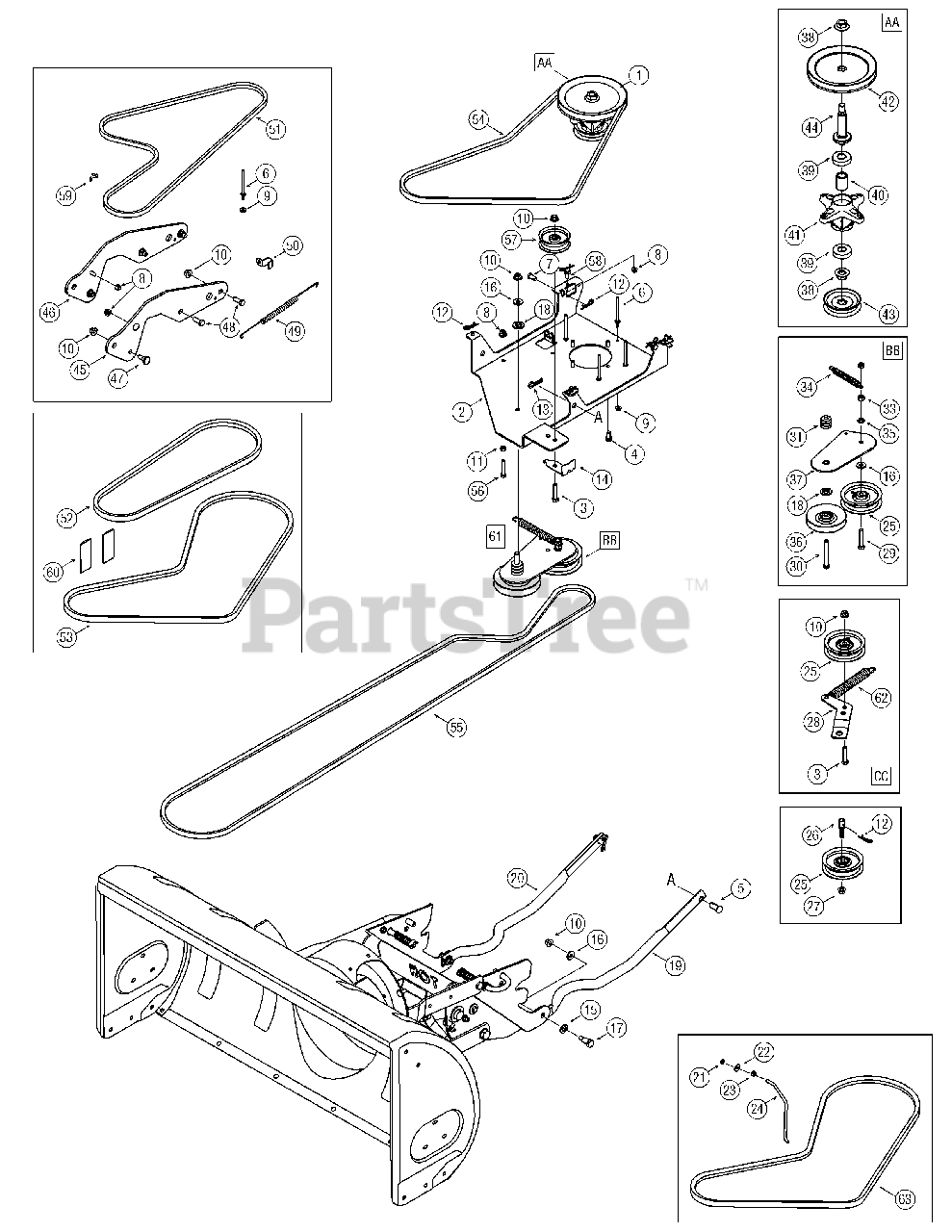

032 (190-032-101) - Cub Cadet 42" Snow Thrower Attachment att Drive Assembly 2006 & before Parts Diagram

42" Snow Thrower Attachment

Drive Assembly 2006 & before Parts Diagram

  • Title

1

Cub Cadet 618-0411

Spindle Assembly (Incl. 38-44)
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-04210

Pulley Mounting Bracket
(Superseded to 683-04210-0637)

Variations

Cub Cadet 683-04210-0637

BRACKET ASM: PUL - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1260A

Self Tapping Screw

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 711-0310

Clevis Pin, .5 x 1.18

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-1000

Belt Keeper Pin
(Superseded to 911-1000)

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

Hex Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0145

Click Pin, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0147

Internal Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 732-04168

Belt Guard
(Superseded to 932-04168)

$

$

Not available

15

Cub Cadet 736-0192

Flat Washer, .531 x .93 x .09

$4.49

$

In Stock, Qty 16

0

16

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0145

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 749-1103

LH Support Tube
(Superseded to 749-1103-0637)

Variations

Cub Cadet 749-1103-0637

TUBE-SUPPORT LH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 749-1104

RH Support Tube
(Superseded to 749-1104-0637)

Variations

Cub Cadet 749-1104-0637

TUBE-SUPPORT RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0298

Hex Lock Nut, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0270

Bell Washer.265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 17

0

24

Cub Cadet 747-04135

Belt Keeper Rod

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 756-0627D

Idler Pulley 3.50 dia.

$30.99

$

In Stock, Qty 20+

0

26

Cub Cadet 650-0040

Idler Assembly Spacer

$30.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-1291

Idler Bracket
(Superseded to 783-1291A-0637)

Variations

Cub Cadet 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 3 left!

0

$12.99

$

In Stock, only 3 left!

0

29

Cub Cadet 710-0151

Hex Cap Screw, 3/8-24 x 2

$7.49

$

In Stock, only 3 left!

0

30

Cub Cadet 710-0521

Hex Cap Screw, 3/8-16 x 3

$5.49

$

In Stock, Qty 11

0

31

Cub Cadet 711-0242

Spacer

$4.49

$

In Stock, Qty 8

0

32

Cub Cadet 712-0116

Nylon Jam Lock Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

34

Cub Cadet 732-0978

Extension Spring, .620 x 5.62

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-0487

Idler pulley, 4" Diameter

$48.99

$

In Stock, only 1 left!

0

37

Cub Cadet 784-5727

Idler Pivot Arm
(Superseded to 784-5727-0637)

Variations

Cub Cadet 784-5727-0637

ARM PIVOT IDLER - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0417

Flange Nut 5/8-18
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

40

Cub Cadet 750-1096

Spacer

$8.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 619-0044

Deck Spindle Housing
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 756-0999

Deck Pulley 7"

$54.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 756-1173

Pulley 3.75"

$36.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 738-0976

Spindle Shaft

$48.99

$

In Stock, only 4 left!

0

45

Cub Cadet 683-04215

Snow Thrower Support Brackets LH
(Superseded to 683-04215-0637)

Variations

Cub Cadet 683-04215-0637

BRACKET ASM: SNOW - POWDER BLACK (0637)

$100.99

$

In Stock, only 1 left!

0

$100.99

$

In Stock, only 1 left!

0

46

Cub Cadet 683-04214

Snow Thrower Support Brackets RH
(Superseded to 683-04214-0637)

Variations

Cub Cadet 683-04214-0637

BRACKET ASM: SNOW - POWDER BLACK (0637)

$100.99

$

In Stock, only 1 left!

0

$100.99

$

In Stock, only 1 left!

0

47

Cub Cadet 738-0143

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0514

Hex Head Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 732-04237

Extension Spring .50 x 12.00

$23.99

$

In Stock, Qty 5

0

50

Cub Cadet 726-0354

Clamp 16mm

$5.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 754-0498

V-Belt
(Superseded to 954-0498)

Note: (A Sec. x 66.90)

$44.99

$

In Stock, Qty 7

0

52

Cub Cadet 754-0435

Upper V-belt
(Superseded to 954-0435)

Note: (A Sec. x 74.24)

$70.99

$

In Stock, only 4 left!

0

53

Cub Cadet 754-0481

Upper V-belt
(Superseded to 954-0481)

Note: (B Sec. x 85.6)

$83.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 754-0371A

Upper V-belt
(Superseded to 954-0371A)

Note: (B Sec. x 74.04)

$103.99

$

In Stock, only 1 left!

0

55

Cub Cadet 754-0125A

V-Belt
(Superseded to 954-0125A)

Note: (1/2 x 105)

$55.99

$

In Stock, Qty 5

0

56

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

57

Cub Cadet 756-0981B

Idler Pulley, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

58

Cub Cadet 710-04511

Pin 5/16-18

$34.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 712-04100

Wing Nut 5/16-18

$10.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

61

Cub Cadet 684-0149

Double Idler Bracket Assembly
(Superseded to 753-08594)

$178.99

$

In Stock, only 1 left!

0

62

Cub Cadet 732-0594A

Extension Spring .91 x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

63

Cub Cadet 754-0490

V-Belt
(Superseded to 954-0490)

Note: (B Sec. x 76)

$

$

Not available
