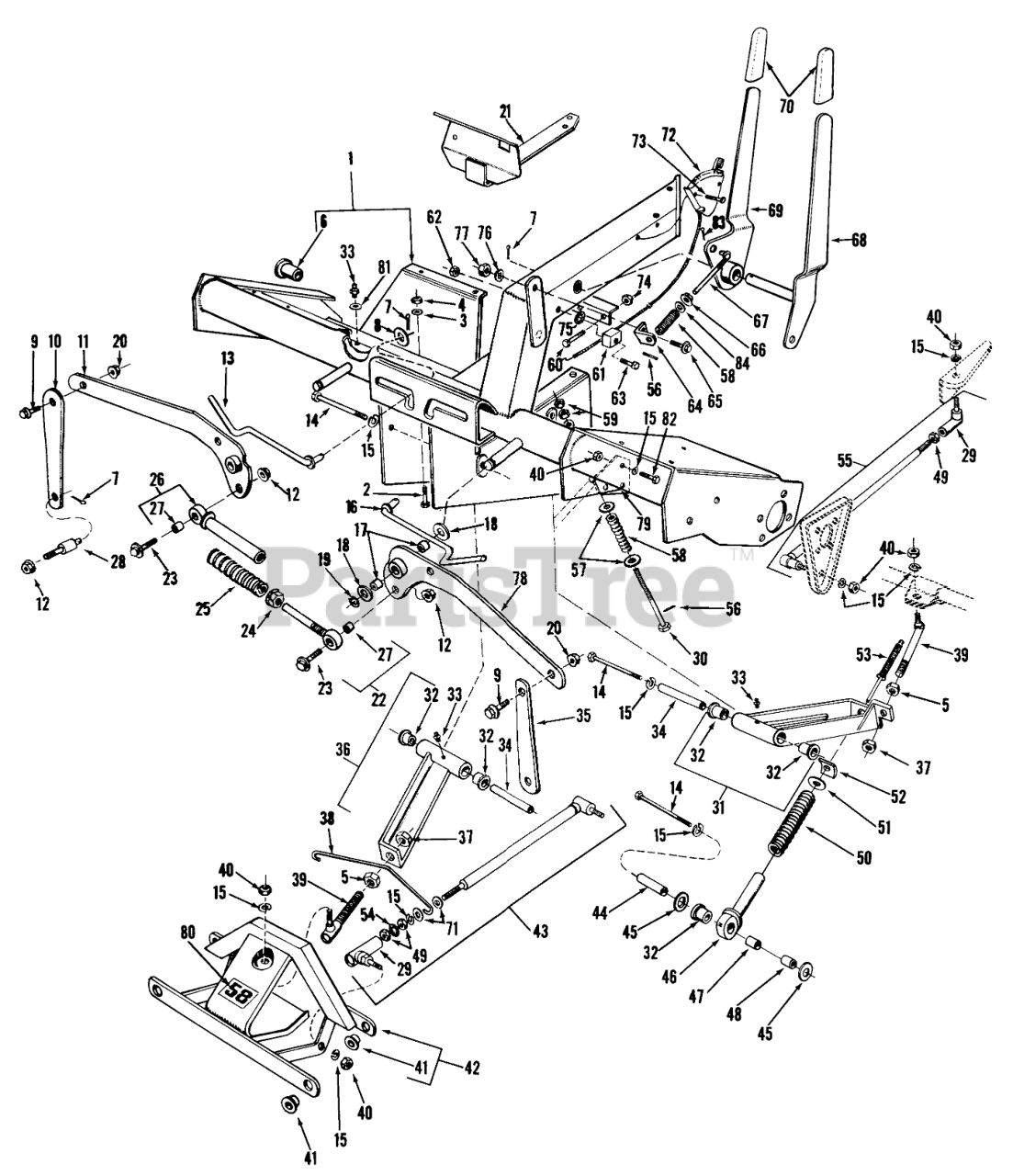

03112 - Toro 58" Professional Reel Riding Mower (SN: 007000001 - 007999999) (1967) Main Frame And Counter Balance Assembly Parts List Parts Diagram

58" Professional Reel Riding Mower

Main Frame And Counter Balance Assembly Parts List Parts Diagram

  • Title
1

Toro 3-7111

DISCONTINUED

$

$

Not available

2

Toro 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

5

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

6

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 3-7157

SHOULDER BOLT

$

$

Currently unavailable

10

Toro 3-7155

DISCONTINUED

$

$

Not available

11

Toro 3-7153

DISCONTINUED

$

$

Not available

12

Toro 32149-5

See Supercession: 121-4698
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

13

Toro 3-7321

DISCONTINUED

$

$

Not available

14

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3-7322

DISCONTINUED

$

$

Not available

17

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

20

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

21

Toro 5-1013

DISCONTINUED

$

$

Not available

22

Toro 3-1029

DISCONTINUED

$

$

Not available

23

Toro 3-7136

Shoulder Bolt

$

$

Currently unavailable

24

Toro 32128-15

NUT-LOCK, FLANGE

$

$

Currently unavailable

25

Toro 3-7152

DISCONTINUED

$

$

Not available

26

Toro 3-7147

DISCONTINUED

$

$

Not available

27

Toro 256-154

BUSHING

$

$

Not available

28

Toro 5-0878

DISCONTINUED

$

$

Not available

29

Toro 2411-17

Ball Joint End

$

$

Currently unavailable

30

Toro 3-7246

DISCONTINUED

$

$

Not available

31

Toro 3-0989

DISCONTINUED

$

$

Not available

32

Toro 256-155

BUSHING-FLANGE

$2.49

$

Usually ships in 3-6 days

0

33

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

34

Toro 3-6695

DISCONTINUED

$

$

Not available

35

Toro 3-7131

DISCONTINUED

$

$

Not available

36

Toro 3-1009

DISCONTINUED

$

$

Not available

37

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

38

Toro 3-6716

Spring, Stabilizer

$

$

Currently unavailable

39

Toro 3-6687

See Supercession: 5-3776
(Superseded to 5-3776)

$698.99

$

Usually ships in 3-6 days

0

40

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

41

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

42

Toro 3-1019

DISCONTINUED

$

$

Not available

43

Toro 3-6707

DISCONTINUED

$

$

Not available

44

Toro 3-6704

DISCONTINUED

$

$

Not available

45

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

46

Toro 3-7368

GUIDE BUSHING WA

$

$

Currently unavailable

47

Toro 3-6705

SPLIT SPACER

$

$

Currently unavailable

48

Toro 3-6703

DISCONTINUED

$

$

Not available

49

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

50

Toro 3-6692

COMPRESSION SPRING

$

$

Currently unavailable

51

Toro 3-6715

DISCONTINUED

$

$

Not available

52

Toro 3-6708

ADJUSTING NUT

$

$

Currently unavailable

53

Toro 3-7145

Anchor

$

$

Currently unavailable

54

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

55

Toro 3-6706

Ball Joint, Mower Hitch

$

$

Currently unavailable

56

Toro 32121-7

PIN-ROLL, SLOTTED

$

$

Currently unavailable

57

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

58

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

59

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

60

Toro 329-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

61

Toro 3-7168

REEL STOP

$

$

Currently unavailable

62

$

$

Currently unavailable

63

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

64

Toro 3-6725

PIVOT BRACKET

$

$

Currently unavailable

65

Toro 3-7166

IDLER SHOULDER SCREW

$

$

Currently unavailable

66

Toro 32146-4

NUT-LOCK, INSERT

$

$

Not available

67

$

$

Currently unavailable

68

Toro 3-7164

DISCONTINUED

$

$

Not available

69

Toro 3-7162

DISCONTINUED

$

$

Not available

70

Toro 5-1022

See Supercession: 3-7877
(Superseded to 3-7877)

$

$

Not available

71

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

72

Toro 3-7257

DISCONTINUED

$

$

Not available

73

Toro 32104-72

DISCONTINUED

$

$

Not available

74

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0

75

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

76

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

77

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

78

Toro 3-7132

DISCONTINUED

$

$

Not available

79

Toro 3-6711

Anchor Plate

$

$

Currently unavailable

80

Toro 3-7768

DISCONTINUED

$

$

Not available

81

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

82

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

83

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

84

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
