03108 - Toro 58" Professional Reel Riding Mower (SN: 002000001 - 002999999) (1982) CONTROLS Parts Diagram

58" Professional Reel Riding Mower

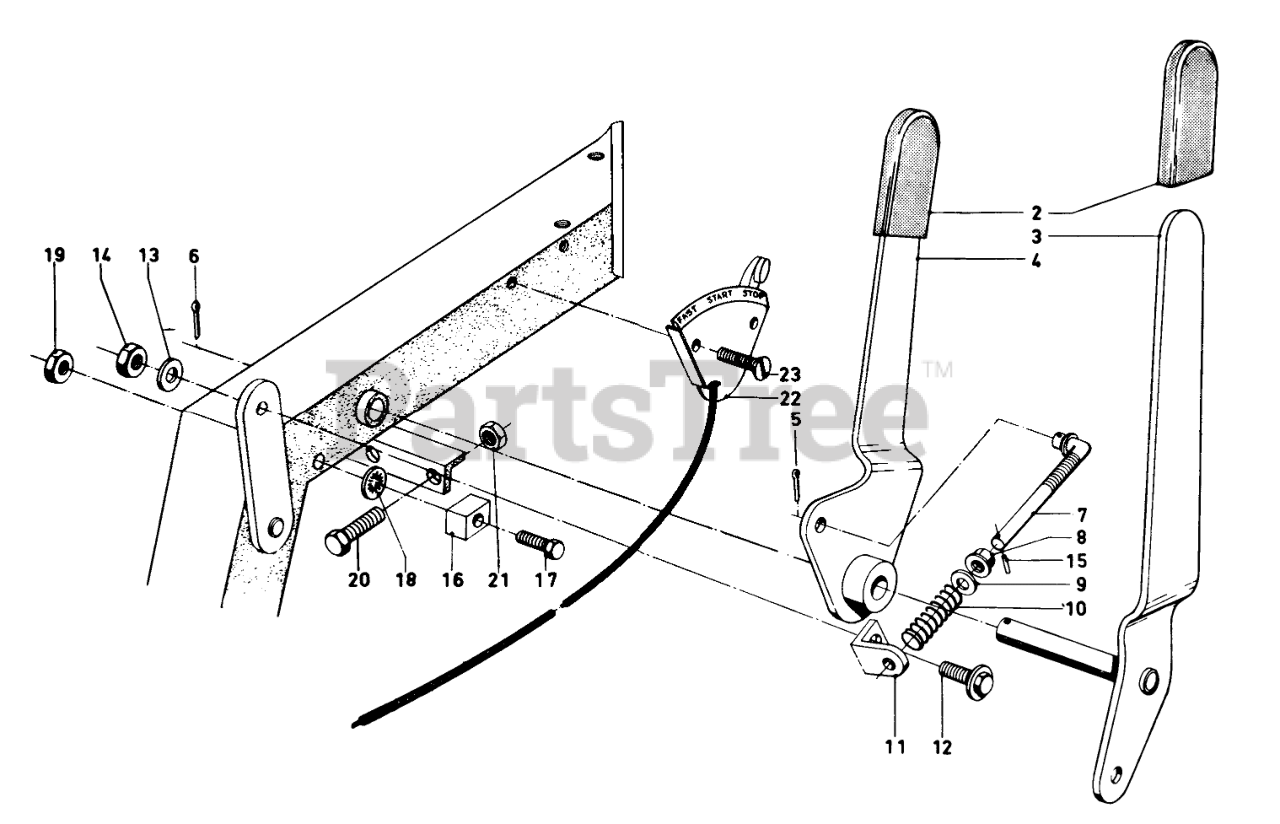

CONTROLS Parts Diagram

  • Title

2

Toro 5-1022

Grip
(Superseded to 3-7877)

$

$

Not available

3

Toro 3-7164

Control, Traction

$

$

Not available

4

Toro 3-7162

Control, Reel

$

$

Not available

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

7

Toro 3-6718

ROD

$

$

Currently unavailable

8

Toro 32146-4

NUT-LOCK NI

$

$

Not available

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3-6725

PIVOT BRACKET

$

$

Currently unavailable

12

Toro 3-7166

IDLER SHOULDER SCREW

$

$

Currently unavailable

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

15

Toro 32121-7

PIN-ROLL, SLOTTED

$

$

Currently unavailable

16

Toro 3-7168

REEL STOP

$

$

Currently unavailable

17

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

18

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 329-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0

22

Toro 3-7257

Throttle Control Assy.

$

$

Not available

23

Toro 32104-72

10-24 X 1 PAN HD SCR

$

$

Not available
