03108 - Toro 58" Professional Reel Riding Mower (SN: 001000001 - 001999999) (1981) REAR CUTTING UNIT ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

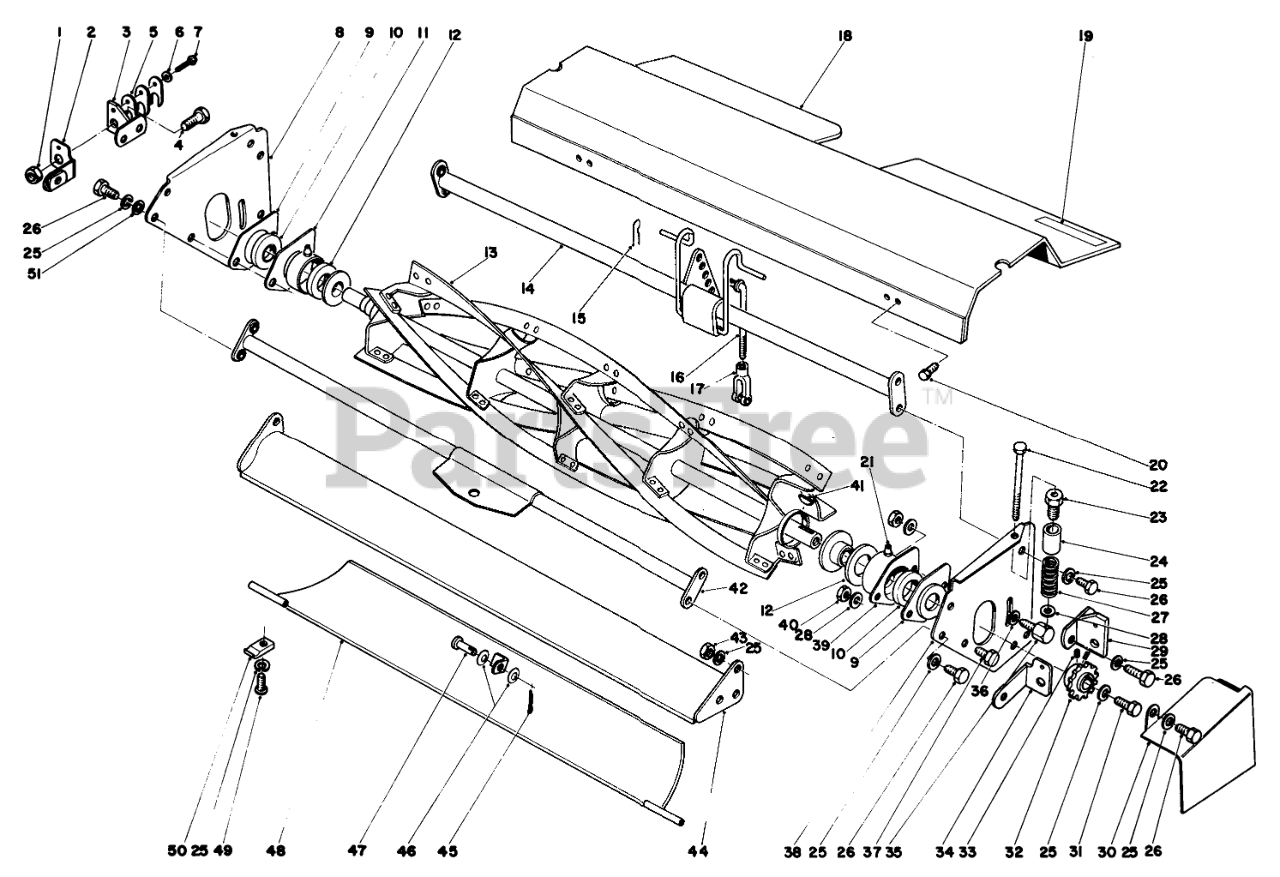

REAR CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

2

Toro 5-4665

Ball Joint Bracket-Right

$

$

Not available

3

Toro 5-4668

Hanger-Right Hand

$

$

Not available

4

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

5

Toro 5-3631

FRONT SIDE SHIM

$

$

Currently unavailable

6

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

7

Toro 3251-5

10-24 X 7/8 RND HD MS

$

$

Not available

8

Toro 3-7795

Side Plate

$

$

Not available

9

Toro 3-6637

Cup-Bearing

$

$

Not available

10

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

11

Toro 5-3811

Cup Bearing

$

$

Not available

12

Toro 253-104

1 X .250 OIL SEAL

$

$

Currently unavailable

13

Toro 4-4639

Reel Assy.

$

$

Not available

14

Toro 40-8850

Tube-Reel

$

$

Not available

15

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3-6651

Rod Adjusting

$

$

Not available

17

Toro 282-2

YOKE

$31.99

$

Usually ships in 3-6 days

0

18

Toro 5-3797

Shield-Grass

$

$

Not available

19

Toro 27-5560

WARNING DECAL

$

$

Currently unavailable

20

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

21

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

22

Toro 3-6627

Screw-Adjusting

$

$

Not available

23

Toro 3-6626

Bolt-Adjusting

$

$

Currently unavailable

24

Toro 3-6625

ADJUSTMENT BLOCK

$

$

Currently unavailable

25

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

27

Toro 3-6624

SPRING-COMPRESSION

$

$

Not available

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 5-4667

Hanger-Left Hand

$

$

Not available

30

Toro 3-7192

Chain Guard

$

$

Not available

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3-6635

Sprocket-Reel

$

$

Not available

33

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

34

Toro 5-4666

Bracket, Ball Joint

$

$

Not available

35

Toro 3-6623

REEL BEARING SCREW

$

$

Not available

36

Toro 5-0744

WASHER

$

$

Not available

37

Toro 3-6665

BEARING CUP BOLT

$

$

Currently unavailable

38

Toro 3-7794

Side Plate

$

$

Not available

39

Toro 5-3812

Cup Bearing

$

$

Not available

40

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

41

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

42

Toro 40-8840

Tube-Reel

$

$

Not available

43

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

44

Toro 40-8880

BEDKNIFE WA

$

$

Not available

45

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

46

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

47

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

48

Toro 3-6653

Skid

$

$

Not available

49

Toro 32122-38

Screw

$

$

Not available

50

Toro 3-6657

CLIP-SKID

$

$

Not available

51

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
