03108 - Toro 58" Professional Reel Riding Mower (SN: 001000001 - 001999999) (1981) FRONT CUTTING UNIT ASSEMBLY Parts Diagram

58" Professional Reel Riding Mower

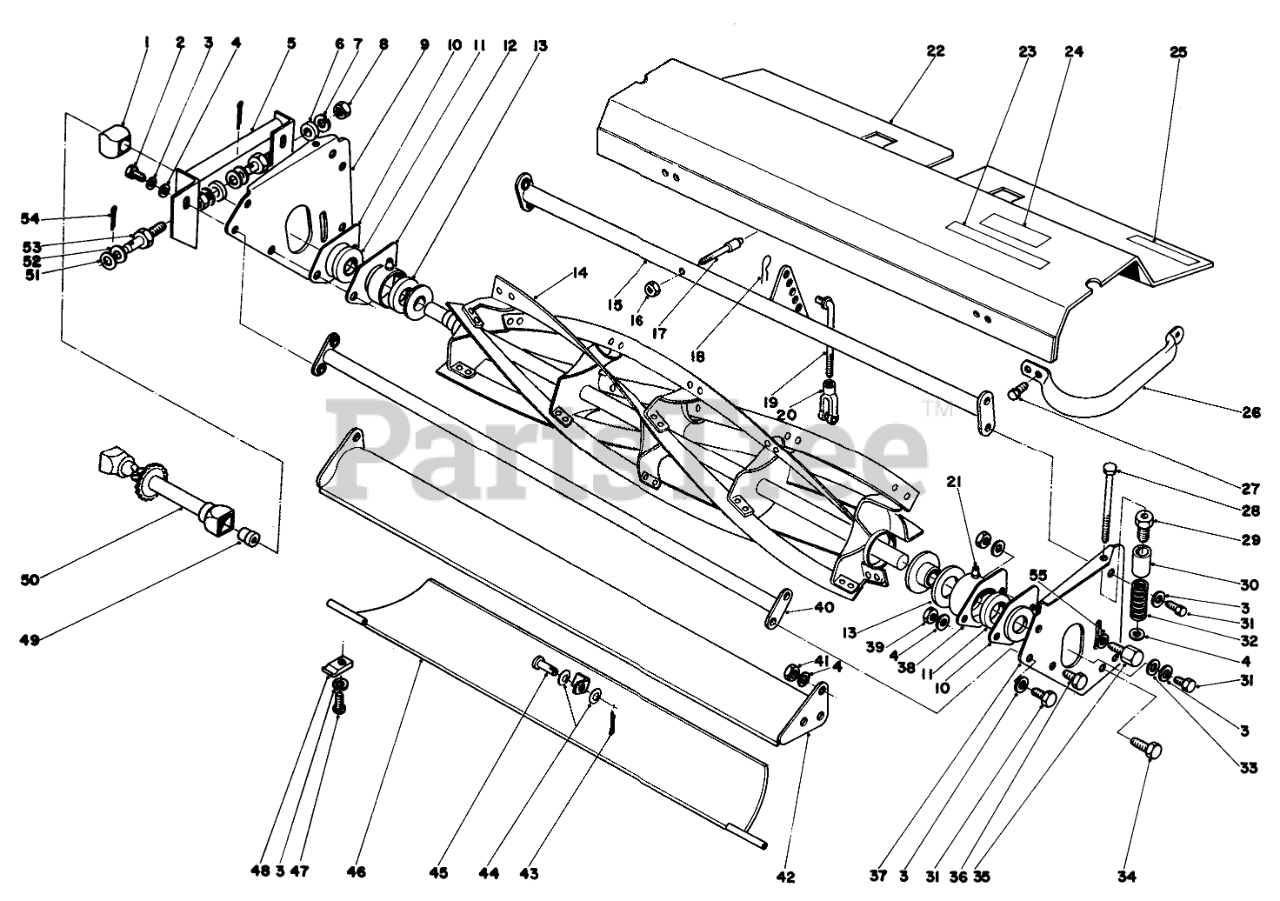

FRONT CUTTING UNIT ASSEMBLY Parts Diagram

  • Title
1

Toro 3-7173

DRIVE BALL

$

$

Not available

2

Toro 3210-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 3-6671

Hitch Left Hand

$

$

Not available

Toro 3-6678

Hitch Right Hand

Note: Not illustrated

$

$

Not available

6

Toro 3-6677

SPHERICAL SPACER

$

$

Currently unavailable

7

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Toro 3219-5

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

9

Toro 3-7795

Side Plate

$

$

Not available

10

Toro 3-6637

Cup-Bearing

$

$

Not available

11

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

12

Toro 5-3811

Cup Bearing

$

$

Not available

13

Toro 253-104

1 X .250 OIL SEAL

$

$

Currently unavailable

14

Toro 4-4629

Reel Assy.-Left

$

$

Not available

Toro 4-4619

Reel Assy.-Right

Note: Not illustrated

$

$

Not available

15

Toro 40-8860

Tube, Reel

$

$

Not available

16

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

17

Toro 5-0878

Pin-Link

$

$

Not available

18

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3-6651

Rod Adjusting

$

$

Not available

20

Toro 282-2

YOKE

$31.99

$

Usually ships in 3-6 days

0

21

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

22

Toro 5-3796

Shield Grass

$

$

Not available

23

Toro 3-7771

Decal

$

$

Currently unavailable

24

Toro 3-1058

Decal

$

$

Not available

25

Toro 27-5560

WARNING DECAL

$

$

Currently unavailable

26

Toro 3-7174

Guard-Reel

$

$

Not available

27

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

28

Toro 3-6627

Screw-Adjusting

$

$

Not available

29

Toro 3-6626

Bolt-Adjusting

$

$

Currently unavailable

30

Toro 3-6625

ADJUSTMENT BLOCK

$

$

Currently unavailable

31

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

32

Toro 3-6624

SPRING-COMPRESSION

$

$

Not available

33

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

35

Toro 3-6623

REEL BEARING SCREW

$

$

Not available

36

Toro 3-6665

BEARING CUP BOLT

$

$

Currently unavailable

37

Toro 3-7794

Side Plate

$

$

Not available

38

Toro 5-3812

Cup Bearing

$

$

Not available

39

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

40

Toro 40-8870

Tube-Reel

$

$

Not available

41

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

42

Toro 40-8880

BEDKNIFE WA

$

$

Not available

43

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

44

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

45

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

46

$

$

Not available

47

$

$

Not available

48

Toro 3-6657

CLIP-SKID

$

$

Not available

49

Toro 3-7463

REEL DRIVE PAD

$

$

Not available

50

Toro 3-6607

Shaft-Reel Drive

$

$

Not available

51

Toro 3-6688

COLLAR

$

$

Currently unavailable

52

Toro 3-1131

9/16ID X 032 WASHER

$

$

Currently unavailable

53

Toro 5-3645

PIVOT STUD

$

$

Currently unavailable

54

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

55

Toro 5-0744

WASHER

$

$

Not available
