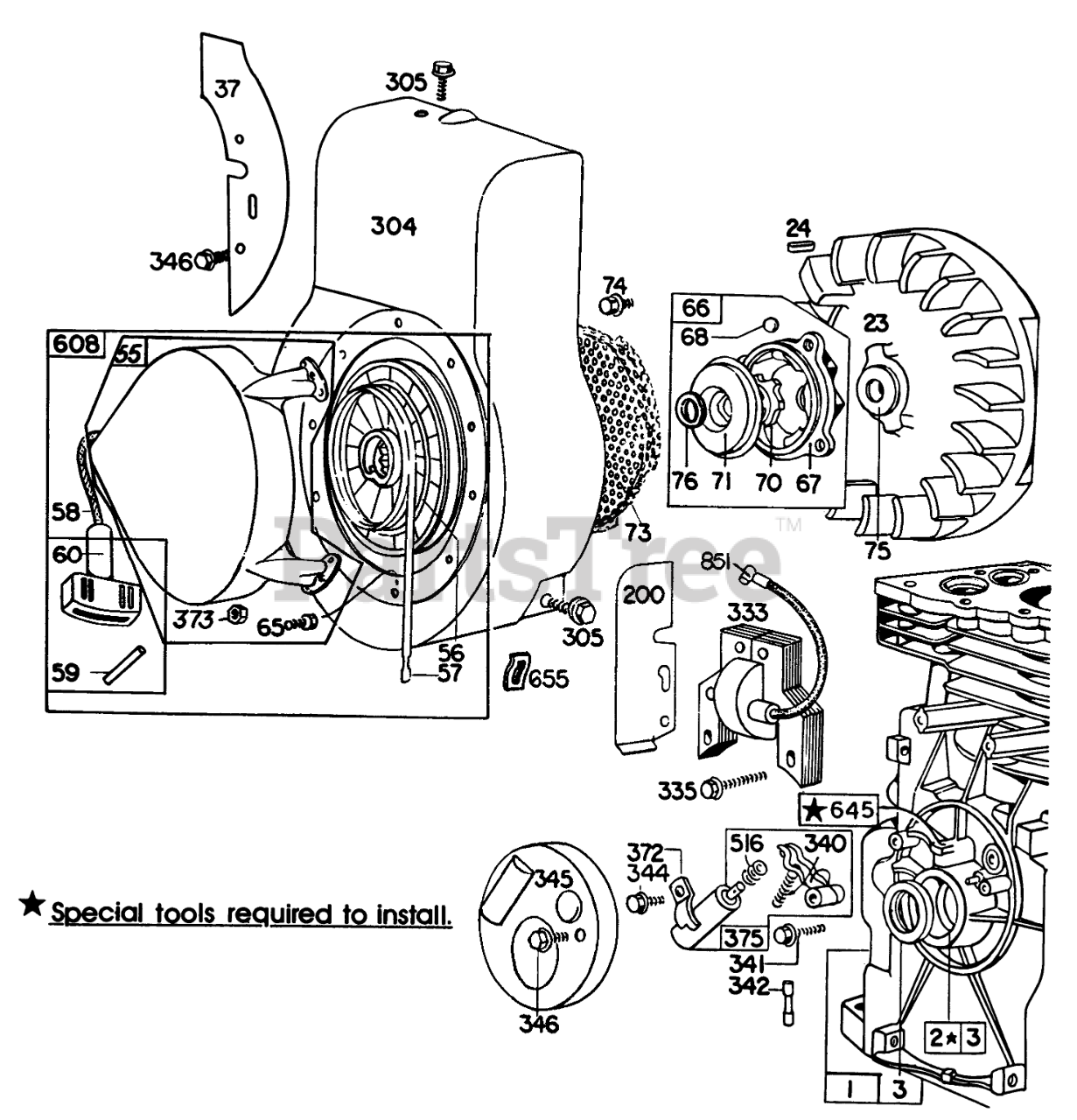

03108 - Toro 58" Professional Reel Riding Mower (SN: 001000001 - 001999999) (1981) ENGINE BRIGGS & STRATTON MODEL NO. 130232 TYPE NO. 0497-01 Parts Diagram

58" Professional Reel Riding Mower

ENGINE BRIGGS & STRATTON MODEL NO. 130232 TYPE NO. 0497-01 Parts Diagram

  • Title

1

Briggs & Stratton 391977

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" long rope) If longer rope is required, order rope No. 66894 and cut to length

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298310

Clutch Assembly
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 212131

Housing-Starter Clutch
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299410

Screw-Blower
(Superseded to 397719)

$43.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 298316

Armature-Magneto
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390463

Starter-Rewind

$

$

Not available

645

Briggs & Stratton 23513

Bushing-Plunger

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
